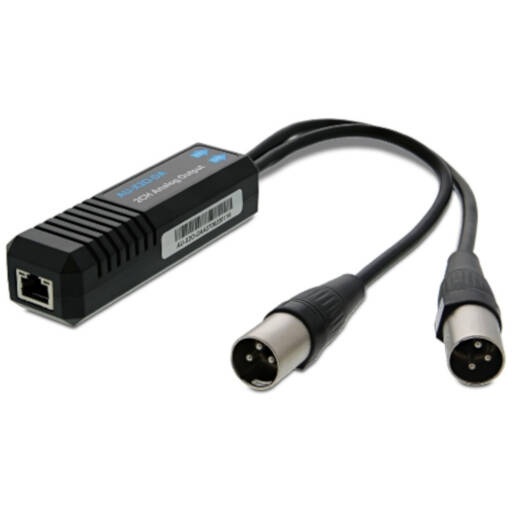

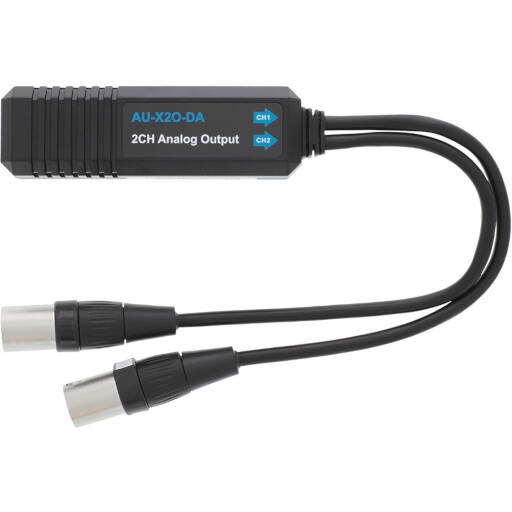

AU-X2O-DA from TiGHT AV outputs two channels of analog line level audio from your Dante network. It supports sample rates up to 96kHz, using Audinate’s original Dante Ultimo chip. Featuring two male XLR standard connectors, the AU-X2O-DA is a simple and cost-efficient solution to connect analog equipment to a Dante network. PoE support allows for a simplified installation via a PoE-capable network switch or from a separate PoE injector.
Panel Description
①RJ45: Dante network communication port. Green steady light indicates link; yellow flashing light indicates data traffic. The green light will flash to identify the device when clicking the Dante Controller “Identify” button (an eye-shaped symbol) on the host computer
②XLR: 2 x XLR-M connectors, for output signal
KEY FEATURES:
- Plug and Play
- 2 x line outputs on standard XLR male connectors
- Dante and AES67 support-24-bit audio support
- Supports 802.3af PoE
- Dante Controller and Dante Domain Manager compatible
In the Box
x1 AU-X2O-DA
x1 User ManualAUDIO
Max signal level:
- +18 dBu / +4 dBu / 0 dBu
- 0 dBV /-10 dBV
Frequency Response: 20 Hz to 20 kHz (-/+0.5dB)
Impedance:
- 150 Ohm balanced
- 75 Ohm unbalanced
Dynamic Range: >100 dB
Signal to Noise Ratio: >100 dB
THD: 0.01% @+4 dBu
DANTE
Sample Rate: 44.1 kHz, 48 kHz, 96 kHz
Bit Depth: 24
Dante Device Latency: 1, 2 or 5 ms (configurable using Dante Controller)
Network Transport:
- Dante Audio over IP
- AES67 RTP
Model Name: AU-X2O-DA
GENERAL
Connectors: 2 XLR-M
Operation Temperature: -5 to +55 (+23° to +131°F)
Storage Temperature: -25 to +70℃ (-13° to +158°F)
Power: 802.3af PoE
Power Consumption: 2.6W (Max)
Dimension (W*H*D): 30 x 28 x 114 mm
Cable length: 300mm
Net Weight: 145g
Compliance: FCC, CE
Environmental: RoHs, WEEE
