Equipped with NDI®|HX capability, the PTZ1270 provides flexibility and extensive applications through a single IP cable, simplifying live-production workflows by transmitting various video and audio signals efficiently and rapidly with low latency.
The PTZ1270 performs well and provides a variety of signal outputs such as SDI, HDMI and NDI for a wide range of uses, including studio productions, live events, worship services, auditorium lectures, sports and gaming competitions, online and distance learning classes, conferences, personnel training sessions, and more.
The PTZ1270 range of cameras are available in various options and various optical zoom lens options of 5×/10×/12×/20×/30× optical zoom, PoE and NDI+PoE.
- 30× Optical zoom lens
- Rich interface outputs: Support HDMI, 3G-SDI, USB3.0 & LAN
- Multiple control protocol: Support VISCA, PELCO-D, PELCO-P protocols
- LAN port for video stream: Support RTMP, RTSP & Onvif
- USB port for capture video, complying with UVC for live streaming
- 3.5mm stereo audio(line-level) in
- PoE (Power Over Ethernet) & NDI丨HX
In the Box

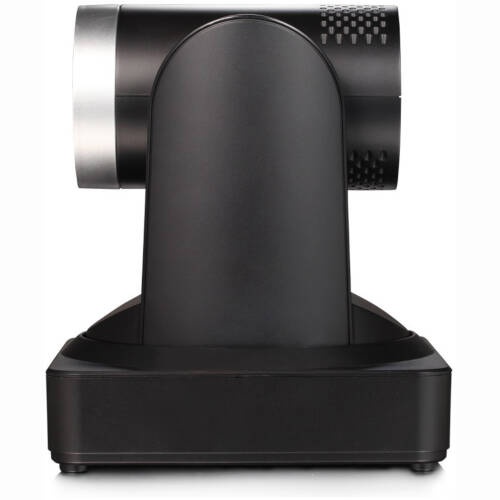

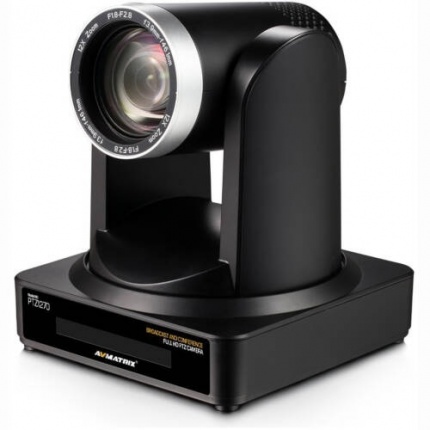

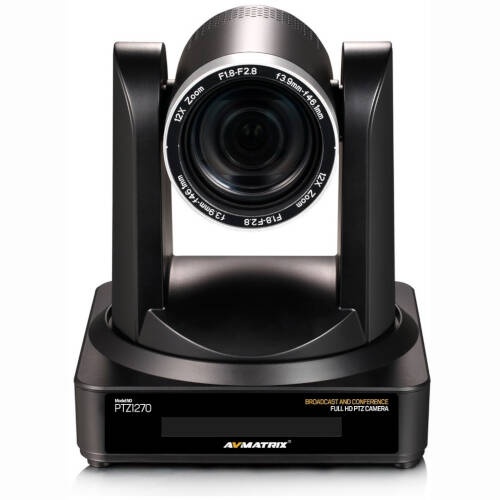

AV Matrix PTZ1270-30X Full HD PTZ 30x Camera with PoE & NDI HX
Power Adapter
IR Remote Control
Serial Port CableModel No. PTZ1270-30 & NDI HX+PoE

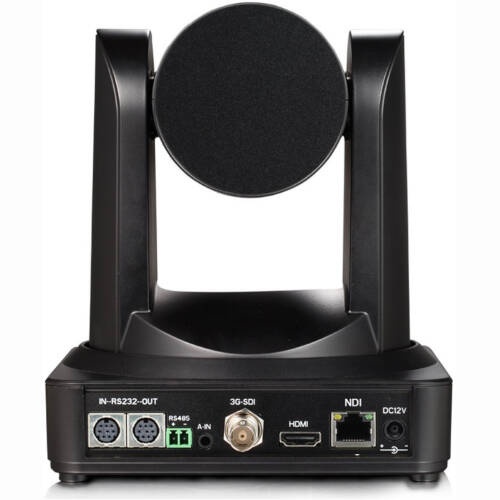

Video Out SDI, HDMI, USB3.0 HDMI, LAN Port
IP Streaming: RTSP/RTMP,ONVIF\
POE & NDI丨HX\
Audio Input 3.5mm audio (Line-level) -
Control Interface RS-232 In and Out, RS485 In RS-232 In, RS485 In
Control Protocol VISCA/ Pelco-D/ Pelco-P
Video Format HDMI/ SDI/ USB3.0 Video up to 1080P60, USB2.0 up to 1080P30
Optical Zoom 30×
Focal Length F=4.3~129mm
View Angle 2.34°(tele) 65.1°(wide)
Aperture Value F1.6 ~ F4.7
Sensor 1/2.8 inch, High quality HD CMOS sensor
Effective Pixels 16: 9, 2.07 Megapixel
Digital Zoom 10×
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
SNR >55dB
White Balance Auto/ Manual/ One Push/ 3000K/ 4000K/ 5000K/ 6500K
WDR OFF/ Dynamic level adjustment
Video Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
Other Camera Parameters Auto Focus, Auto Aperture, Auto Electronic Shutter, BLCPTZ PARAMETERS
Rotation Angle Pan: ±170°, Tilt: -30°～+90°
Rotation Speed Pan: 60°/sec (Range: 0.1 -180°/sec), Tilt: 30°/sec (Range: 0.1-80°/sec)
Preset Number 255 presets (10 presets by remote controller)OTHERS
Input Voltage DC12V±10%
Input Current 1A (Max)
Consumption 12W (Max)
Temperature Working Temperature: -10~+50°C, Store Temperature: -10~+60°C
Working Humidity Working Humidity: 20~80% RH (no condensation), Store Humidity: 20~95% RH (no condensation)
Dimension 150×150×167.5mm
Weight 1.4kg
Accessories Power Supply, RS232 Control Cable, USB3.0 Cable, Remoter, Manual
Installation Methods 1/4 inch tripod hole; Bracket installation for Optional
