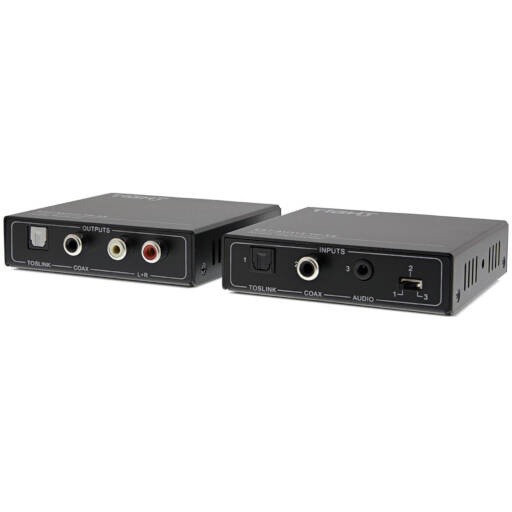

The EXT-AU313-TP is an audio extender set that includes one transmitter and one receiver. It is designed to extend a stereo analog audio signal up to 170 m and extend an Optical/Coax digital audio up to 290 m via a CATx cable. The EXT-AU313-TP is ideal to extend unbalanced or digital audio from a source to an audio system located far from the source.
Features
- Three selectable audio inputs: Optical, Coax and Analog Stereo.
- Simultaneous audio to three different output: Optical, Coax and Analog Stereo.
- Digital audio signals can be converted into analog signals, and analog audio signals can be converted into digital audio signals.
- Connect power only at the receiver end -the transmitter is powered over the CATx cable (PoC).
- The transmission distance of analog stereo audio can up to 170 meters, and the digital Optical/Coax audio up to 290m over an CATx cable.
In the Box
- x1 transmitter
- x2 TX Mounting Ears with 2 Screws
- x4 TX Plastic Cushions
- x1 Power Adapter ( 12VDC, 1A )
- x1 Receiver
- x2 RX Mounting Ears with 2 Screws
- x4 RX Plastic Cushions
- x1 User ManualTransmitter

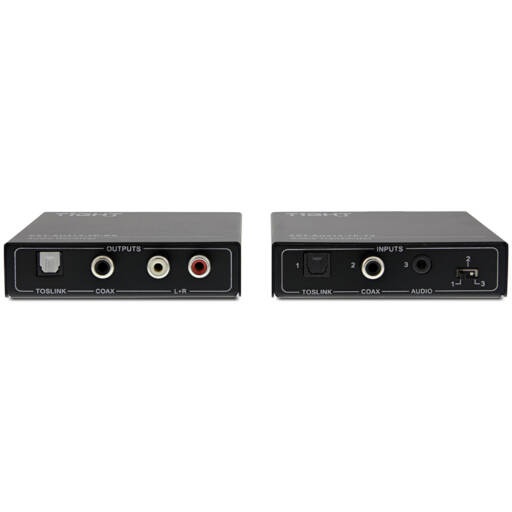

Input: (1) TOSLINK, (1) COAX, (1) AUDIO (Stereo)
Input Connector: (1) T;oslink, (1) Black RCA, (1) 3.5mm jack

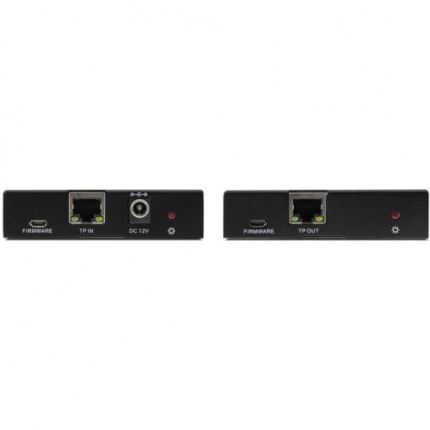

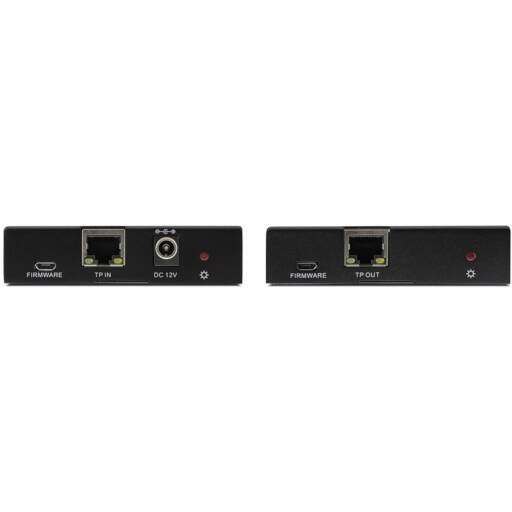

Output: (1) TP OUT
Output Connector: (1) RJ45
Control: (1) FIRMWARE
Control Connector: (1) Micro USB
Receiver
Input: (1) TP IN
Input Connector: (1) RJ45
Output: (1) TOSLINK, (1) COAX, (1) L+R (RCA)
Output Connector: (1) Toslink, (1) Black RCA, (1) Red & White RCA
Control: (1) FIRMWARE
Control Connector: (1) Micro USB
General
Input Audio Format:
- TOSLINK: PCM, Dolby, DTS
- COAX, PCM, Dolby, DTS
- AUDIO: Stereo
Output Audio Format
- TOSLINK: PCM, Dolby, DTS
- COAX: PCM, Dolby, DTS
- L+R: Stereo
Sound Channel
- TOSLINK: 2.0~7.1
- COAX: 2.0~7.1
Frequency Response: All audio: 20Hz ~ 20kHz, ±3dB
Sample Rate:
- TOSLINK: 48k/96k/192k 16bit/18bit/24bit
- COAX: 48k/96k/192k 16bit/18bit/24bit
Transmission Distance
- Stereo audio: Up to 170m (CATx)
- TOSLINK/COAX audio: Up to 290m (CATx)
Power Consumption: 2.5W (max)
Operation Temperature: 0 ~ +40℃
Storage Temperature: -10 ~ +50℃
Relative Humidity: 0% ~ 90%
External Power Supply:
- Input: 100VAC~240VAC, 50/60Hz;
- Output: 12VDC 1A
Dimension (W*H*D): 88mm x 21.5mm x 80mm
Net Weight (g): Transmitter: 110g, Receiver: 120g
