Buy Acoustic Duo Live Sound System Bundle with 2 Yamaha DBR (Active) with Yamaha DXS (Active) Subwoofer + Stands & Cables online from Singapore's Premier AVL Superstore. This stereo sound system is great for cafes, restaurants, offices, homes or anywhere high performance Live sound reinforcement is required. We've also included a subwoofer in this unit for low frequency extension.
This bundle will be suitable for maximum possible coverage area of about 100sq/m.
We even supply the hookup diagram when you purchase the bundle from us. All you need is to have the cables run and hook up the speakers according to the simple diagram and you will be in business.
This minimal-fuss bundle is designed for music enthusiasts' jamming sessions, live band performances and can be used even in a small multipurpose hall space.

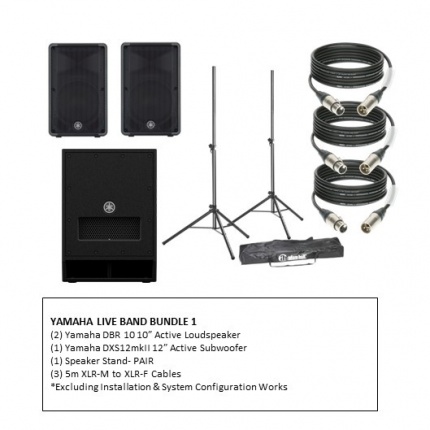

Package consists of
2 x Yamaha DBR10 10" Full-Range Active Loudspeaker
1 x Yamaha DXS12 MK II 12" Active Subwoofer Unit
1 x Speaker Stand (PAIR)
3 x XLR-M to XLR-F Cables (5M)All Yamaha speakers come with Standard 1-Year Warranty, Carry-In to LTAPL's Service Centre
NOT INCLUDED - Get in touch with us to arrange a site visit and quote
Cabling and conduit
Height access by M.O.M Approved Scaffold Contractor
Installation, testing & commissioning by W.A.H certified workmen by BizSafe Level 3 contractor.Yamaha DBR10 Technical Summary
System Type: 2-Way Bi-Amp Powered Speaker, Bass-Reflex Type
Frequency Range (-10dB): 55Hz – 20kHz
Nominal coverage (H x V): 90 x 60
Output Power: Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
Components
LF Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
HF: Diaphragm:1", Type: 1" throat compression driver, Magnet:Ferrite
Crossover: 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Maximum output level (1m; on axis): 129 dB SPL
I/O Connectors
INPUT1: Combo x1
INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced)
OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors
D-CONTOUR: FOH/MAIN, MONITOR, OFFPower Consumption: 60W(1/8 Power Consumption), 18W(Idle)
Dimensions (W x H x D): 308mm x 493mm x 289mm
Net Weight: 10.5kg
Yamaha DXR12 MKII Technical Summary
System Type: 12" powered subwoofer, Band-pass type
Frequency Range (-10dB): 42 Hz - 150 Hz
Output Power: Dynamic:1020W / Continuous: 800W
Components
LF Diameter:12" cone, 2.5" voice coil
Crossover: 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Maximum output level (1m; on axis): 134 dB SPL
I/O Connectors
INPUT: XLR-3-31 x2
THRU: XLR3-32 x 2(Parallel with INPUT)
Processors
D-XSUB: BOOST, XTD LF, NORMALPower Consumption: 100W
Dimensions (W x H x D): 400mm x 567mm x 570mm
Net Weight: 30kg
