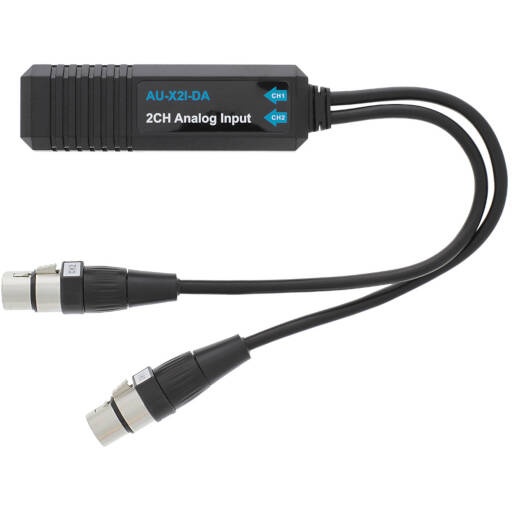

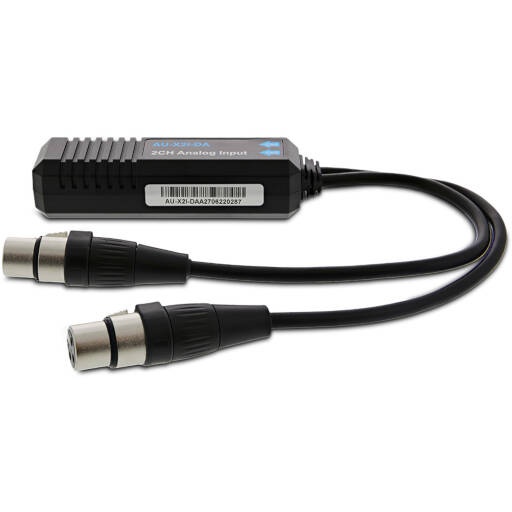

AU-X2I-DA from TiGHT AV inputs two channels of analog line level audio to your Dante network. It supports sample rates up to 96kHz, using Audinate’s original Dante Ultimo chip. Featuring two female XLR standard connectors, the AU-X2I-DA is a simple and cost-efficient solution to connect analog equipment to a Dante network. PoE support allows for a simplified installation via a PoE-capable network switch or from a separate PoE injector.
Panel Description

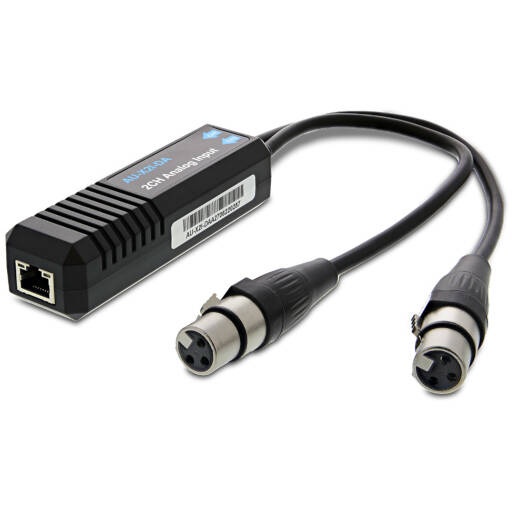

① RJ45: Dante network communication port. Green steady light indicates link; yellow flashing light indicates data traffic. The green light will flash to identify the device when clicking the Dante Controller “Identify” button (an eye-shaped symbol) on the host computer
② XLR: 2 x XLR-F connectors, for input signal
Key Features
- Plug and Play
- 2 x line inputs on standard XLR female connectors
- Dante and AES67 support
- 24-bit audio support
- Supports 802.3af PoE
- Dante Controller and Dante Domain Manager compatible
In the Box
x1 AU-X2I-DA
x1 User ManualAUDIO:
Max signal level:
- +24 dBu / +4 dBu / 0 dBu
- 0 dBV /-10 dBV
Frequency Response: 20 Hz to 20 kHz (-/+0.5dB)
Impedance:
- 20k Ohm balanced
- 10k Ohm unbalanced
Dynamic Range: >100 dB
Signal to Noise Ratio: >100 dB
THD: 0.01% @+4 dBu
DANTE:
Sample Rate: 44.1 kHz, 48 kHz, 96 kHz
Bit Depth: 24
Dante Device Latency: 1, 2 or 5 ms (configurable using Dante Controller)
Network Transport:
- Dante Audio over IP
- AES67 RTP
Model Name: AU-X2I-DA
GENERAL:
Connectors: 2 XLR-F
Operation Temperature: -5 to +55 (+23° to +131°F)
Storage Temperature: -25 to +70℃ (-13° to +158°F)
Power: 802.3af PoE
Power Consumption: 3.15W (Max)
Dimension (W*H*D): 30 x 28 x 114 mm
Cable length: 300mm
Net Weight: 145g
Compliance: FCC, CE
Environmental: RoHs, WEEE
