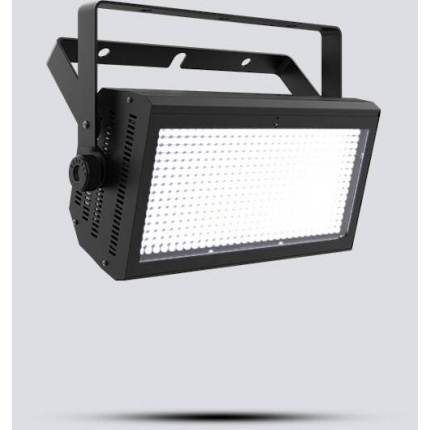

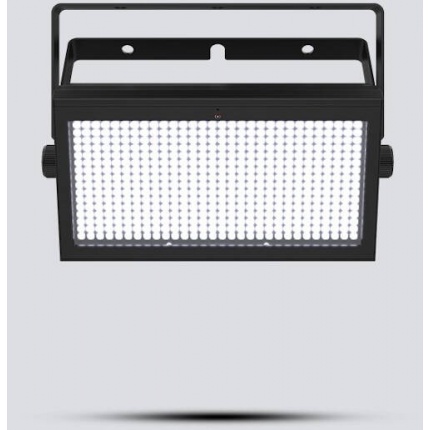

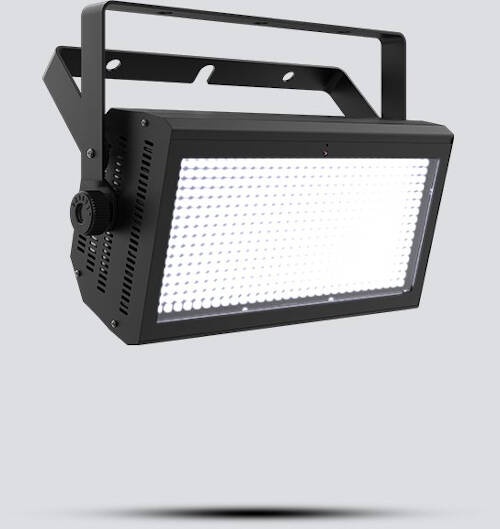

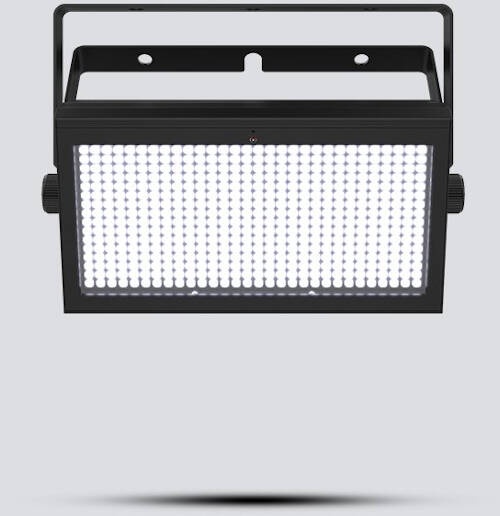

Lighting designers and mobile entertainers looking to add some dynamic lighting effects to their setup should check out the Chauvet DJ Shocker Panel 480, a punchy single-zone blinder/strobe with 480 cool-white SMD LEDs that can generate a variety of exciting effects guaranteed to wow the crowd.
Use the built-in display, DMX, or the optional IRC6 remote to program the fixture. There are several effects built into the unit including sound reactive, lightning, random, and spikes. The dual-yoke bracket can be used for traditional mounting or as a floor stand. Save time by power linking up to 5 units (120V).
Punchy single-zone blinder with cool-white SMD LEDs
Rugged housing makes it ideal for mobile applications
Trigger eye-catching strobe effects via the built-in display, DMX, or with the optional IRC6 remote
powerCON-compatible power input/output connections for power linking
Save time running cables and extension cords by power linking multiple units
Easily transports in the optional CHS-25 VIP gear bagLight
Light Type LED Panel / Special Design
Light Source 480 x White LED - 0.7 W / 236 mA
Light Source Life Expectancy 50,000 Hours
Colors Cool White
Pixel Configuration 1 x Zones
Photometrics 125.2 fc / 1348 Lux at 6.6' / 2 m
Lumen Output 14,974 Lumens
Beam Angle 111°
Field Angle 155°
Shutter / Strobe Electronic
Zoom Adjustment None
Dimming 0 to 100%
Operating Modes DMX, Program, Sound-Active
Macros / Programs 14 x Auto-Program
Effects Blinder
Strobe
Strobe Rate 0 to 28 Hz
Gobos None
Control
Control Protocols DMX512
DMX Channel Modes 4-Channel
Display / Controls LED / 4-Button
Remote Control IR Remote (with Optional Equipment)
App Compatible No
Connectivity

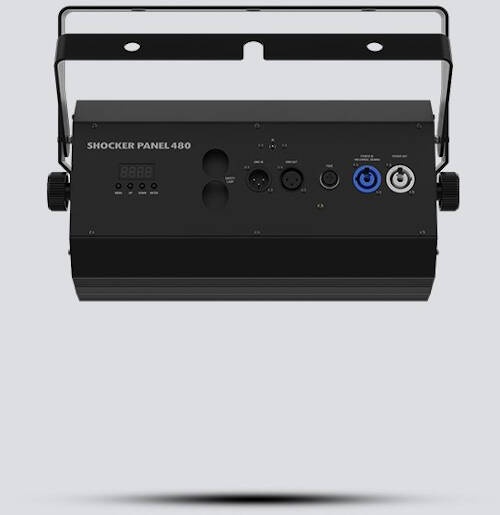

Inputs/Outputs 2 x XLR 3-Pin DMX Input/Output
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x powerCON
Output: 1 x powerCON
Power / Current Consumption 120 VAC, 60 Hz: 208 W / 2.7 A
230 VAC, 50 Hz: 200 W / 1.5 A
Power Linking 5 Units at 120 VAC
9 Units at 230 VAC
Environmental
IP Rating None
Physical
Mounting Dual/Scissor Yoke
Included Accessories 1 x Power Cable
Duty Cycle None
Exterior Color Black
Certifications CE,
*as per Manufacturer
Dimensions 13.1 x 6.7 x 4.5" / 33.3 x 17 x 11.4 cm
Weight 9.4 lb / 4.3 kg
Packaging Info
Package Weight 10.68 lb
Box Dimensions (LxWxH) 15.4 x 11.1 x 5.6"
