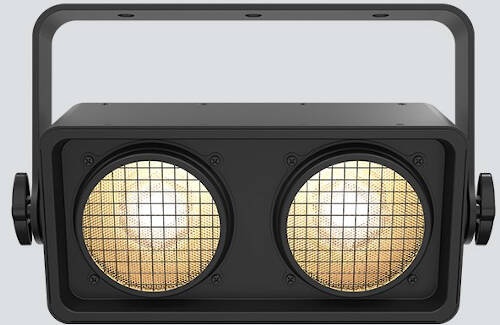

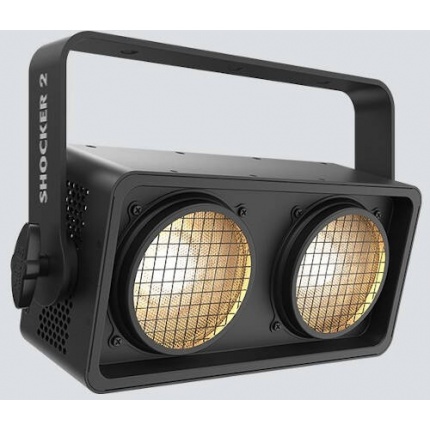

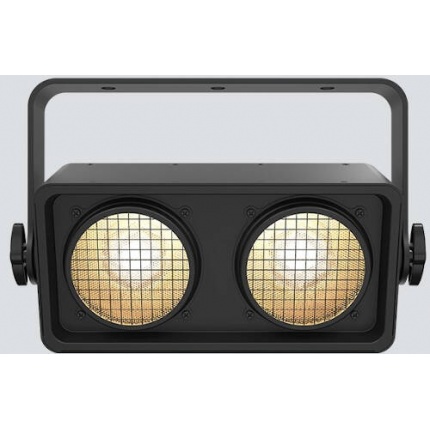

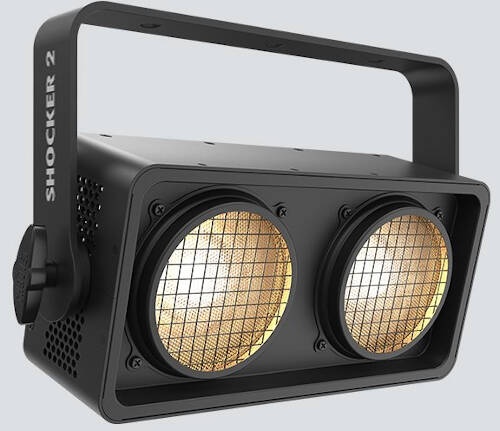

The Shocker 2 Wash Light from CHAUVET DJ is a punchy dual-zone blinder with warm white 85W COB LEDs designed for theatrical productions, concerts, and dance floors. It has an included expansion bracket which allows for quick attachment of a second unit to create a four-head blinder. Adjustable pulse width modulation (PWM) control is on board to eliminate on-camera flicker. The Shocker 2 has PowerCON-compatible power input/output connections for power linking, and flexible control options with onboard 3- and 5-pin DMX connectors.
Light
Light Type Special Design
Light Source 21 x White LED (COB) - 85 W / 3.6 A
Light Source Life Expectancy 50,000 Hours
Colors Warm White
Photometrics 100.3 fc / 1080 Lux at 6.6' / 2 m
15 fc / 161 Lux at 16.4' / 5 m
Color Temperature 3200K
Beam Angle 51°
Field Angle 81°
Shutter / Strobe Electronic
Iris No
Focus Manual
Zoom Adjustment None
Dimming Electronic, 0 to 100% with 3 Dimmer Modes
Performance
Operating Modes Automatic, DMX, Primary/Secondary, Sound-Active
Macros / Programs 14 x Auto-Program
5 x Sound-Active
Effects Strobe (Variable Speed)
Strobe Rate 0 to 400 Hz
Gobos None
PWM Frequency 600 Hz to 6000 Hz (Adjustable)
Control
Control Protocols DMX512
DMX Channel Modes 5 Mode(s):
1 / 2 / 4 / 7 / 8-Channel
Display / Controls LED / 4-Button
Remote Control None
Connectivity

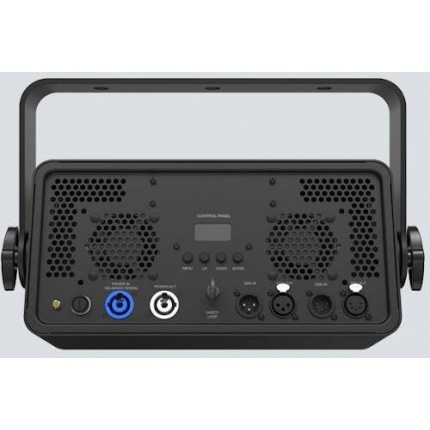

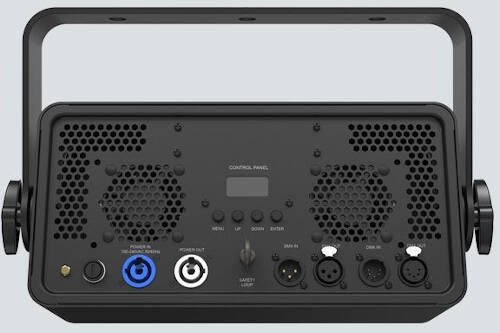

Inputs/Outputs 1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x powerCON
Output: 1 x powerCON
Plug Type: NEMA 5-15
Fuse 120 VAC: T 2 A 250 V
230 VAC: T 2 A 250 V
Power / Current Consumption 120 VAC, 60 Hz: 154 W / 1.26 A
230 VAC, 50 Hz: 148 W / 0.65 A
Power Linking 6 Units at 120 VAC
12 Units at 230 VAC
Total Current: 8 A
Environmental
IP Rating IP20
Operating Temperature 104°F / 40°C
Physical
Mounting Single Yoke Only
Exterior Color Black
Cooling Convection, Fan
Certifications CE, RoHS
*as per Manufacturer
Dimensions 14.7 x 6 x 4.6" / 373.4 x 152.4 x 116.8 mm
Weight 10.4 lb / 4.7 kg
