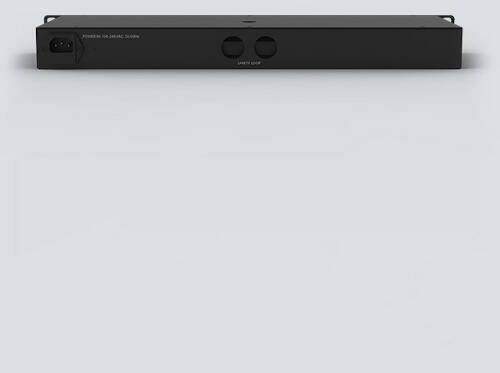

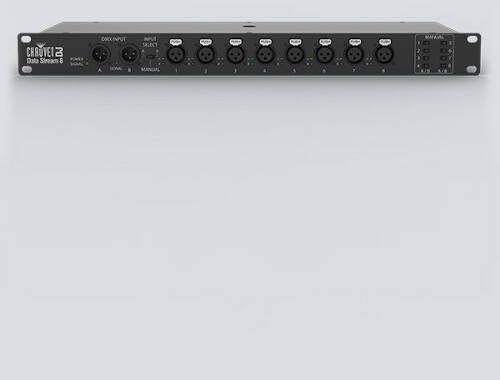

The Data Stream 8 Flexible DMX Splitter from Chauvet receives and boosts incoming DMX signals through two inputs and splits them into 8 individual optically isolated outputs, via a Master 3-position switch. For convenience, the unit has a threaded insert for truss mounting.
Benefits
Flexible DMX splitter provides up to 8 outputs from dual inputs
Each input can be used simultaneously and sent to any output
Master 3-position switch quickly sends A or B input to all 8 outputs
Individual 2-position switches send data from either the A or B input
Optically isolated outputs provide protection in the event of a short
Threaded insert safely secures to overhead trussGeneral
Ports 8 x XLR 3-Pin DMX Female
2 x XLR 3-Pin DMX Male
Power
Power Consumption 2 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 0.03 to 0.04 AEnvironmental
Certifications CE
*as per ManufacturerPhysical
Rack Mount 1 RU
Dimensions 19.0 x 5.2 x 1.7" / 483.0 x 132.0 x 44.0 mm
Weight 4.6 lb / 2.1 kg
