Hands-free performance. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 HEADMIC SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound that involves dancing and singing all at the same time. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a compact bodypack transmitter and a lightweight headset microphone.
Lightweight headmic and compact bodypack transmitter
Antenna-switching diversity reception
Integrated antennas
Automatic frequency management and synchronization via remote channel for easy setup
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels

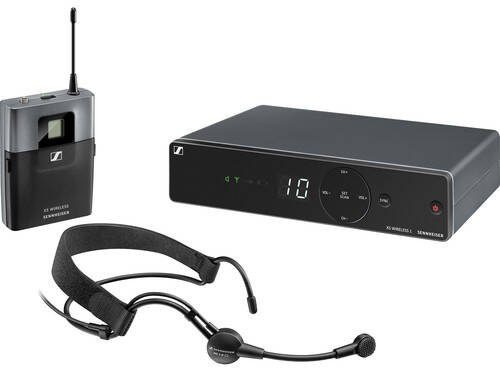

In the Box:
1 receiver EM-XSW 1
1 headset microphone ME 3-II
1 bodypack transmitter SK-XSW
1 power supply NT 12-5 CW
2 AA batteriesAs Sennheiser Singapore's Official Dealer, the equipment we supply will be supported through the Sennheiser Singapore Service Centre (Carry-in Service)
Receivers
Dimensions
approx. 200 x 42 x 127 mm
Weight
approx. 340g
Power supply
12 V DC nom. / 300 mA
AF frequency response
50 to 16,000 Hz (–3 dB)
Transmitter
Dimensions
approx. 71 x 96 x 28 mm
Weight
approx. 95g
Operating time
Approx. 10 hrs
Power supply
2 AA size batteries, 1.5 V
Adjustment Range Transmitter
0 to -30 dB, adjustable in 10 dB steps
Microphone
Condenser
THD, total harmonic distortion
≤ 0.9%
Pick-up pattern
Cardioid
Signal-to-noise ratio
≥ 103 dBA
RF output power
10 mW
Switching bandwidth
up to 24 MHz
Modulation
Wideband FM
Output voltage
1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing
Rugged ABS housing
Frequency
8 frequency banks, each with up to 10 factory-preset channels
Sensitivity
3 μV at 52 dB(A)rms S/N
SPL for peak deviation
150 dB
Squelch
adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity
1.5 mV / Pa
Audio adjustment range
45 dB, adjustable in 5-dB steps
Line / Mic level
20 dB, switchable
Temperature Range
Operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle
Double superheterodyne
Diversity principle
Antenna switching diversity via internal antennas
