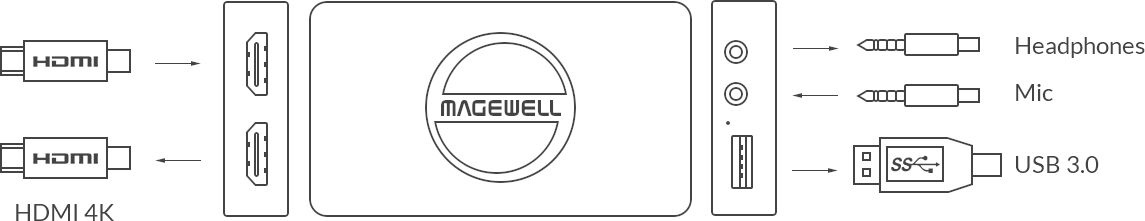

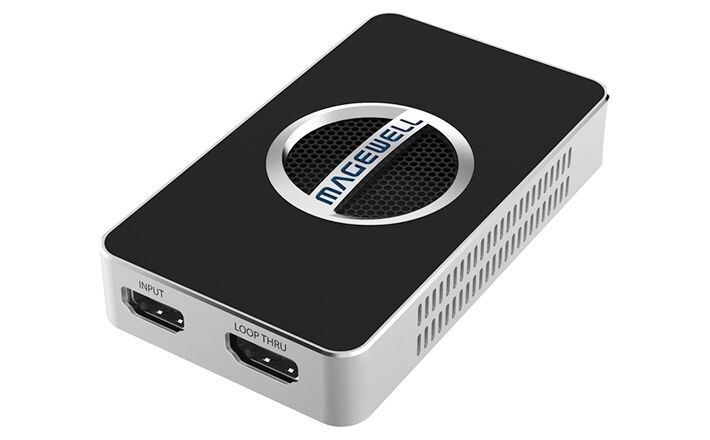

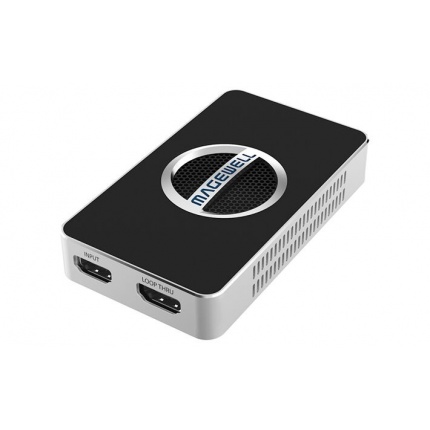

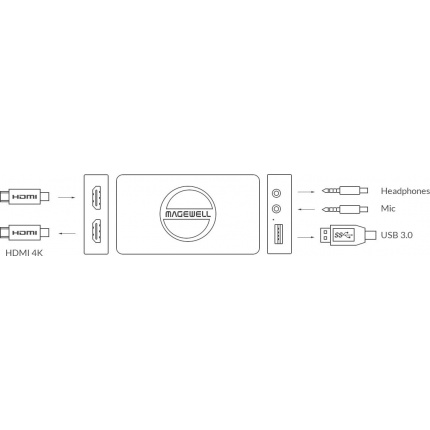

The Magewell USB Capture HDMI 4K Plus connects to your computer over a USB interface and lets you capture up to a 4K DCI resolution signal (4096 x 2160) with embedded audio via an HDMI 2.0 input. It allows you to capture from cameras, game consoles, and various other devices directly to your Windows, Mac, Linux, or Chrome computer. It also features an HDMI loop-through for local monitoring and 3.5mm audio input and output for capturing external audio and extracting embedded audio.
The device also offers a variety of processing and other features, including resolution scaling and deinterlacing. It also has a status LED for displaying the status of the input, including idle, input signal locked, memory failed, or FPGA configuration.
*Please use the included Magewell USB 3.0 cable, which is a custom accessory. Using any other similar cable might cause capture problems and even damage the capture device.
Input Interface
HDMI x1
Support input resolution up to 4096×2160 pixels

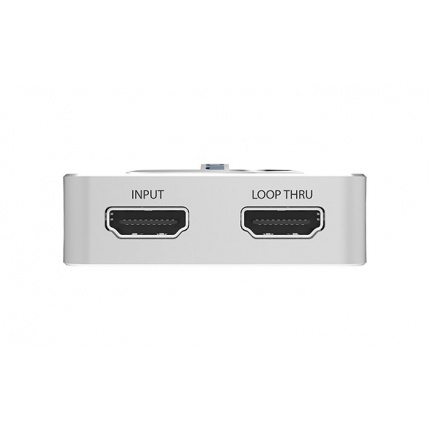

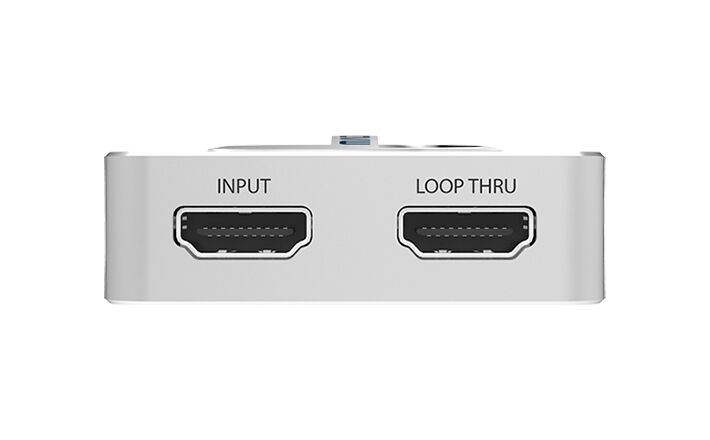

Loop-through InterfaceHDMI x1
Support loop-through resolution up to 4096×2160 pixels
Audio Input Interface3.5 mm audio jack for microphone

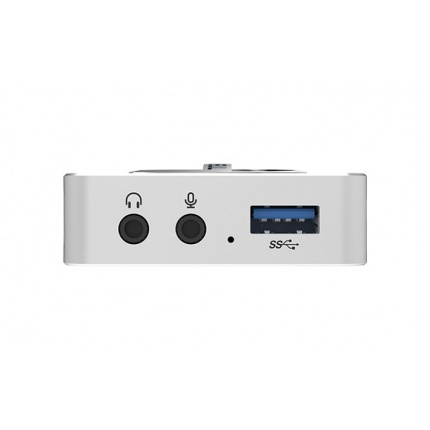

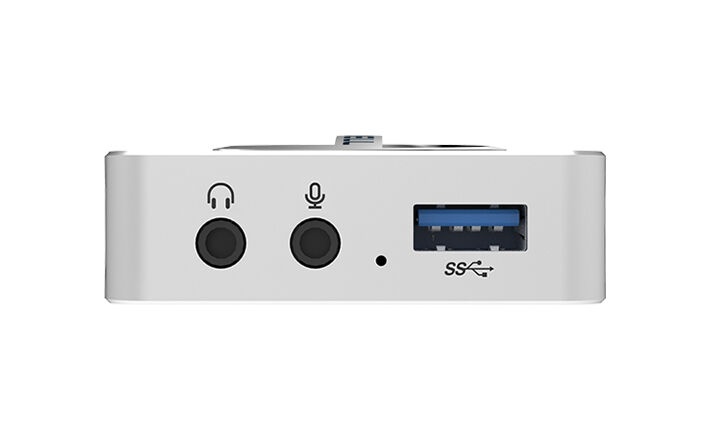

Audio Output Interface3.5 mm audio jack for headphones
Host InterfaceUSB 3.0
Video Engine
8-bit video processingDeinterlace
Cropping
Color Adjustment
Color Space Conversion
Up/down Conversion
Aspect Ratio Conversion
Mirror and Flip
Signal Detection & Support
Auto Detection of Input Signal Format3D HDMI
Software Environment
Windows, Linux, Mac, Chrome OS
Driver and FirmwareDriver Free, Updatable Firmware
Included SoftwareUSB Capture Utility, Capture Express
In the Box
- Magewell USB Capture HDMI 4K Plus
- Custom USB 3.0 Cable
- Limited 1-Year Warranty
USB Capture HDMI 4K Plus Specifications
Supported OS
Windows
Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
CentOS 6.5/7 (x86 & x64)
Fedora 25/26/27 (x86 & x64)
Red hat 6.5 and above (x86 & x64)
Other Linux OS with kernel version 2.6.35 and above
Mac
OS X 10.9/10.10/10.11
macOS 10.12 and above
Chrome OS
Recommended OS (tested)
Windows
Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
Ubuntu 12.04/14.04/16.04 (x86 & x64)
Ubuntu 17.04/17.10/18.04 (x64)
CentOS 6.5/7.2 (x86 & x64)
Fedora 25/26 (x64)
Red hat 6.5 (x86 & x64)
Mac
OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
macOS 10.12/10.13.2/10.13.3/10.14.3
Supported APIs
Windows
DirectShow
Wave API/DirectSound/WASAPI
Linux
V4L2
ALSA
OS X/macOS
QuickTime
AV Foundation
Supported Software
VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software
Input Interfaces
HDMI
DVI-D 1.0
HDMI 1.4
HDMI 2.0
3.5mm audio jack
Microphone interface
Host Interface
USB 3.0
compatible with USB 2.0
compatible with USB 3.1 Gen 1
Output Interface
3.5mm audio jack
headphones interface
Loop-through Interface
HDMI
DVI-D 1.0
HDMI 1.4
HDMI 2.0
Input feature
Support for input video resolutions up to 4096x2160
HDMI Specific Features
600MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for up to 4096x2160 4:4:4 60fps input signals
Support for 2 channel IEC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
Analog Audio Features
Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
Capture of analog audio via 3.5 mm microphone interface
Integrate the functions of a USB audio card. Playback audio via 3.5 mm headphones interface. Support for recording the playback audio of the computer.
Video Capture format
Support for capture resolutions up to 4096x2160
Support for capture frame rates up to 120fps (Actual output frame rate can be limited by the USB bandwidth and internal working frequency. Typical output frame rates on the Intel USB3.0 controller are as follows.)
1920x1080 YUY2 (up to 90fps)
3840x2160 NV12 (up to 30fps)
Support for NV12 & l420 4:2:0 8-bit (up to 4096x2160)
Support for YUY2 & UYVY 4:2:2 8-bit (up to 4096x2160)
Support for RGB24 & RGB32 4:4:4 8-bit (up to 2048x2160)
The default capture formats are YUY2 & NV12. More capture formats can be set using USB Capture Utility.
Video Processing Features
Video processing pipelines with 640 Mpixels/s processing bandwidth
Video cropping
Video scaling
Video de-interlacing
Weave
Blend top & bottom field
Top field only
Bottom field only
Video aspect ratio conversion
Auto or manual selection of input aspect ratio
Auto or manual selection of output aspect ratio
Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
Auto or manual selection of input color format & quantization range
Auto or manual selection of output color format, quantization range & saturation range
Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Support for Limited or Full quantization range
Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Vertical flip and mirror
Multiple devices on one computer
Support for connecting multiple USB devices to one system
Support for setting the device serial number as the device name shown in the system using USB Capture Utility
SDK
The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.
Firmware Upgrade
Multiple devices in one system can be upgraded simultaneously
LED Indicator
Status LEDs indicate the working state of each channel:
Pulsing slowly: idle
On: input signal locked
Off: input signal unlocked
Double blinks: memory failed or FPGA configuration failed
Form Factor
98.1mm (L) x 56.8mm (W) x 17mm (H)
Power Consumption
5V max current: ~ 1.4A
Max power consumption: ~ 7W
Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
