Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

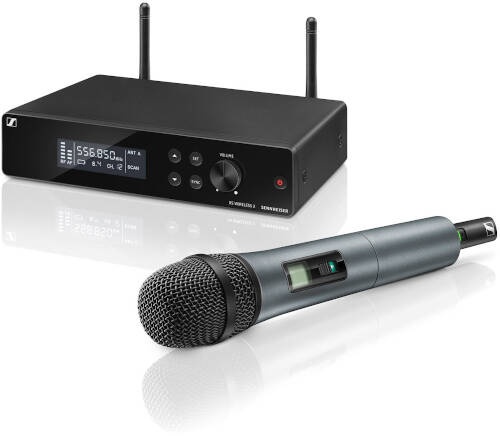

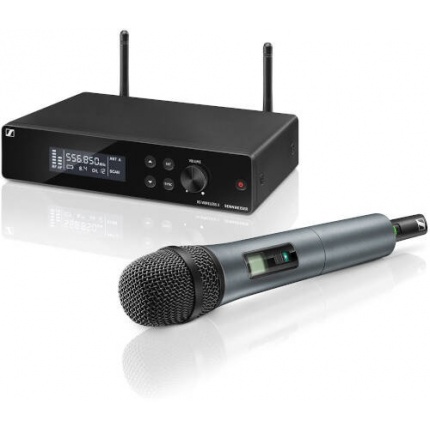

The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail. True Diversity receiver in a metal housing and rackmount kit included.Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
True diversity receiver with metal housing
External antennas
Automatic frequency management and synchronization via
remote channel for easy setup
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
Up to 12 compatible channels
In the Box:
1 receiver EM-XSW 2
1 handheld transmitter SKM 865-XSW
1 microphone clamp MZQ 1
1 power supply NT 12-5 CW
2 AA batteries
1 rackmount kit
1 pouch
user manualAs Sennheiser Singapore's Official Dealer, the equipment we supply will be supported through the Sennheiser Singapore Service Centre (Carry-in Service)
Receivers
Dimensions
approx. 200 x 42 x 127 mm
Weight
approx. 680g
Power supply
12 V DC nom. / 300 mA
Housing
metal, microphone: robust ABS
AF frequency response
50 to 16,000 Hz (–3 dB)
Microphone
Dimensions
approx. 260 x 50 mm
Weight
approx. 245g
Operating time
approx. 10 hrs
Power supply
2 AA size batteries, 1.5 V
AF frequency response
80-16,000 Hz
Microphone
condenser
Frequency response
50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion
≤ 0.9%
Pick-up pattern
super-cardioid
Signal-to-noise ratio
≥ 103 dBA
RF output power
10 mW
Switching bandwidth
up to 24 MHz
Modulation
wideband FM
Output voltage
1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Frequency
8 frequency banks, each with up to 12 factory-preset channels
Sensitivity
3 μV at 52 dB(A)rms S/N
Squelch
switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity
1.8 mV / Pa
Audio adjustment range
40 dB, adjustable in 5-dB steps
Line / Mic level
20 dB, switchable
Temperature Range
operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle
double superheterodyne
Diversity principle
True Diversity
