Amplify your tunes. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

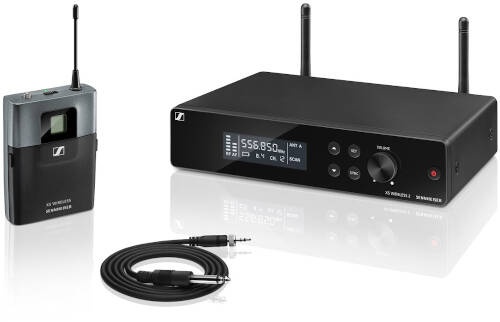

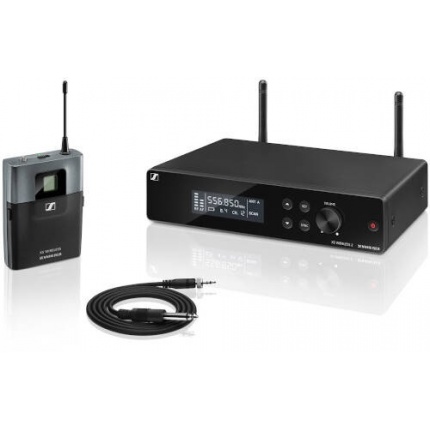

The XS WIRELESS 2 INSTRUMENT SET is an easy to use all-in- one wireless system for guitarists and bassists, excellent for live sound. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable. Metal receiver housing and rackmount kit included.
Robust instrument cable and compact bodypack transmitter
True diversity receiver with metal housing
External antennas
Automatic frequency management and synchronization via remote channel for easy setup
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
Up to 12 compatible channels
In the Box:
1 receiver EM-XSW 2
1 bodypack transmitter SK-XSW
1 instrument cable Cl1
1 power supply NT 12-5 CW
2 AA batteries
1 rackmount kit
1 pouch
user manualAs Sennheiser Singapore's Official Dealer, the equipment we supply will be supported through the Sennheiser Singapore Service Centre (Carry-in Service)
Receivers
Dimensions
approx. 200 x 42 x 127 mm
Weight
approx. 680g
Power supply
12 V DC nom. / 300 mA
Housing
metal
AF frequency response
50 to 16,000 Hz (–3 dB)
Transmitter
Dimensions
approx. 71 x 96 x 28 mm
Weight
approx. 95g
Operating time
approx. 10 hrs
Power supply
2 AA size batteries, 1.5 V
Housing
robust ABS
Frequency response
50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion
≤ 0.9%
Signal-to-noise ratio
≥ 103 dBA
RF output power
10 mW
Switching bandwidth
up to 24 MHz
Modulation
wideband FM
Output voltage
1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Diversity reception
True Diversity
Frequency
8 frequency banks, each with up to 12 factory-preset channels
Sensitivity
3 μV at 52 dB(A)rms S/N
Squelch
switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)
Adjustment Range Transmitter
0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range
40 dB, adjustable in 5-dB steps
Line / Mic level
20 dB, switchable
Temperature Range
operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle
double superheterodyne
