Inspire your audience. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

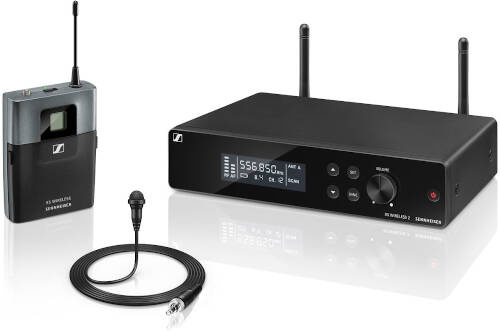

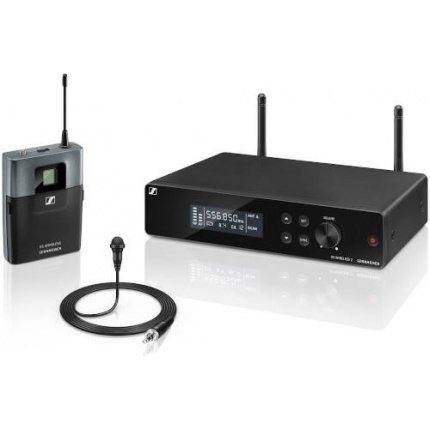

The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone. Metal receiver housing and rackmount kit included.
Unobstrusive clip-on microphone for hands-free operation and compact bodypack transmitter
True diversity receiver with metal housing
External antennas
Automatic frequency management and synchronization via remote channel for easy setup
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
Up to 12 compatible channels
In the Box:
1 receiver EM-XSW 2
1 bodypack transmitter SK-XSW
1 lavalier microphone ME 2-2
1 power supply NT 12-5 CW
2 AA batteries
1 rackmount kit
1 pouch
user manualAs Sennheiser Singapore's Official Dealer, the equipment we supply will be supported through the Sennheiser Singapore Service Centre (Carry-in Service)
Receivers
Dimensions
approx. 200 x 42 x 127 mm
Weight
approx. 680g
Power supply
12 V DC nom. / 300 mA
Housing
Metal
AF frequency response
50 to 16,000 Hz
Transmitter
Dimensions
approx. 71 x 96 x 28 mm
Weight
approx. 95g
Operating time
approx. 10 hrs
Power supply
2 AA size batteries, 1.5 V
Housing
Robust ABS
AF frequency response
50 to 16,000 Hz (–3 dB)
Microphone
Condenser
Frequency ranges
A: 548 to 572 MHz
GB: 606 to 630 MHz
B: 614 to 638 MHz
Frequency response
50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion
≤ 0.9%
Pick-up pattern
Omni-directional
Signal-to-noise ratio
≥ 103 dBA
RF output power
10 mW
Switching bandwidth
up to 24 MHz
Modulation
Wideband FM
Output voltage
'1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Diversity reception
True Diversity
Frequency
8 frequency banks, each with up to 12 factory-preset channels
Sensitivity
3 μV at 52 dB(A)rms S/N
Squelch
switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)
Adjustment Range Transmitter
0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range
40 dB, adjustable in 5-dB steps
Line / Mic level
20 dB, switchable
Temperature Range
operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle
double superheterodyne
