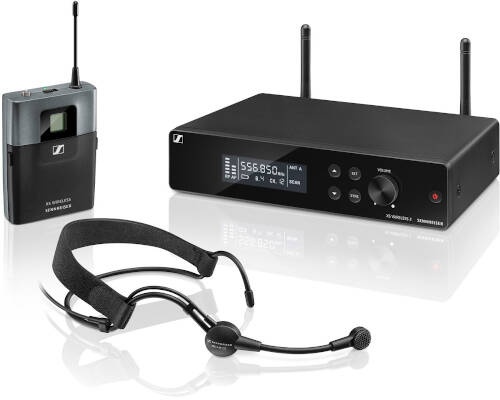

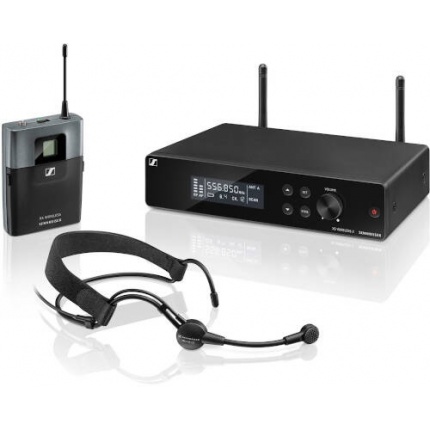

The XSW 2-ME3 Wireless Headset Microphone System features a true diversity receiver, a compact bodypack transmitter, and an ME 3-II headset microphone with a locking 1/8" mini-jack connector. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for presenters, moderators, and other live-sound applications.
The system is built with automatic frequency management and synchronization so you don't have to scramble to find an available channel. It offers an intuitive LCD display, two external antennas, and is built with a metal receiver housing. In addition, a rackmount kit, power supply, carry pouch, and two AA batteries are also included.
Lightweight ME 3-II headset mic for hands-free operation and a compact bodypack transmitter
True diversity receiver with metal housing
External antennas
Automatic frequency management and synchronization
Remote channel for easy setup
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
Up to 12 compatible channelsIn the Box:
Sennheiser XSW2-ME3 Wireless Headset Microphone System (A: 548 to 572 MHz)
EM-XSW 2 Receiver
SK-XSW Bodypack Transmitter
ME3-2 Headset Microphone
2 x AA Batteries
NT 12-5 CW Power Supply
Rackmount Kit
Protective PouchAs Sennheiser Singapore's Official Dealer, the equipment we supply will be supported through the Sennheiser Singapore Service Centre (Carry-in Service)
System
Wireless Transmission Analog UHF
Number of RF Channels 12
Included Transmitters 1 x Bodypack with Microphone
Diversity True Diversity
RF Frequency Band 548 to 572 MHz
Frequency Step Size 25 kHz
Built-In Recorder No
Timecode Support No
Control App Support No
Encryption None
Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x External, BNC (Rear-Mount)
Number of Audio Channels 1
Audio I/O
1 x XLR 3-Pin Male Balanced Mic/Line Output
1 x 1/4" TS Unbalanced Output
Gain Range 40 dB
Audio Output Level
XLR Output:
+12 dBu (Balanced)
1/4" Output:
+6 dBu (Unbalanced)
Phantom Power Protection None
Frequency Response 50 Hz to 16 kHz-3
Network I/O None
USB/Lightning Connectivity None
RF Principle Double Superheterodyne
RF Output Power 10 mW
Squelch Adjustable, 3 to 28 dBμV
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 VDC at 300 mA (Included)
Display & Indicators 1 x LCD (AF Level, Channel, Clip)
Housing Metal
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 158°F / -20 to 70°C
Dimensions 7.9 x 1.7 x 5" / 200 x 42 x 127 mm
Weight 24 oz / 680 g
Transmitter
Form Factor Bodypack
RF Output Power 10 mW
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Input
Muting Off/On Switch
Audio Input Level 20 dB (Mic Level, Line Level)
Auto-Level Control No
Signal Processing None
Frequency Response 50 Hz to 16 kHz (Line)
80 Hz to 16 kHz (Mic)
Sync Method Manual
Antenna 1 x External
Power Requirements Battery
Battery Type 2 x AA (Included, Replaceable)
Approx. Battery Life 10 Hours
USB/Lightning Connectivity None
Display & Indicators 1 x LCD (Battery Status)
Housing ABS
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 158°F / -20 to 70°C
Dimensions 3.8 x 2.8 x 1.1" / 96 x 70 x 28 mm
Weight 3.4 oz / 95 g
Microphone
Form Factor Headset
Color Black
Sound Field Mono
Capsule Condenser
Polar Pattern Cardioid
Frequency Range 50 Hz to 18 kHz
SNR 10 dB
Maximum SPL 150 dB SPL
Sensitivity 1.6 mV/Pa
Output Connectors 1 x 1/8" / 3.5 mm TRS Male Unbalanced
Cable Length 5.2' / 1.6 m
Operating Voltage 7.5 V
