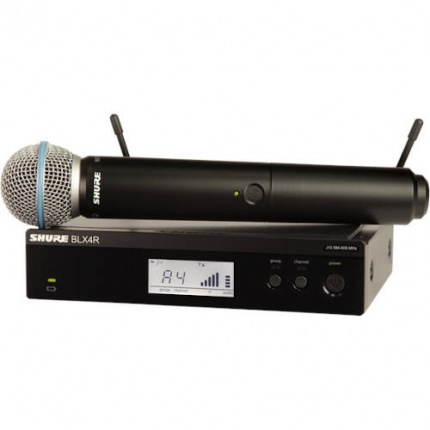

The Shure BLX24R/B58 brings performers and presenters a cost-effective wireless handheld microphone system with quality sound, simple setup, intuitive operation, and dependable performance right out of the box. It includes the rugged BLX4R single-channel receiver with LCD display, adjustable output level, and removable antennas for rackmounting the unit—ideal for sound-reinforcement applications in small venues, wedding halls, and houses of worship.
The BLX24R/B58 also includes a handheld transmitter equipped with an integrated Beta 58A dynamic supercardioid microphone capsule optimized for crisp, present vocals with a brightened midrange and bass roll-off to control the proximity effect. The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. The system provides up to 14 hours of continuous use with two AA batteries, at a range up to 300'. Up to 12 mic channels can operate simultaneously in each frequency band.
Beta 58A Mic Capsule Tailored for Clear Vocals and Speech
The Beta 58A dynamic capsule features a neodymium magnet for greater sensitivity and higher output, as well as a tight supercardioid polar pattern that greatly minimizes background noise and feedback. The dent-resistant steel mesh grille resists wear and abuse. The built-in pop filter reduces undesirable wind and breath noise for clear and intelligible speech.

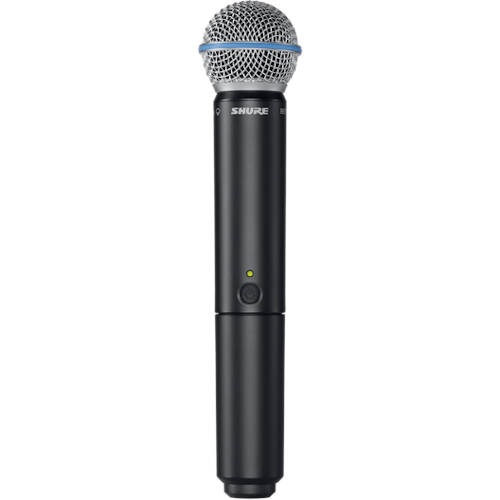

Lightweight Handheld Transmitter
The durable BLX2 handheld transmitter offers a lightweight, ergonomic design and is comfortable to hold. Group and channel selection buttons allow for quick and simple frequency matching with the receiver. Other features include an easily accessible on/off button, adjustable gain control, and a black identification cap. The WA621 Color ID Caps kit containing assorted colored caps is available as an optional accessory.
Easy-to-Use Rackmount Receiver for Quality Audio

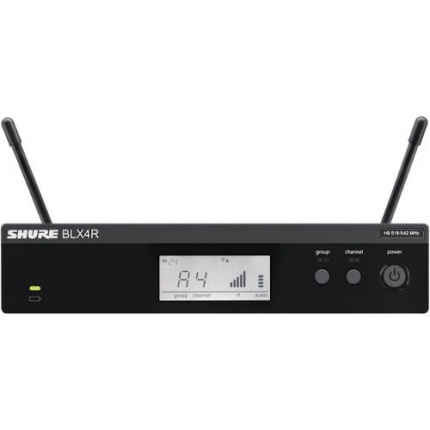

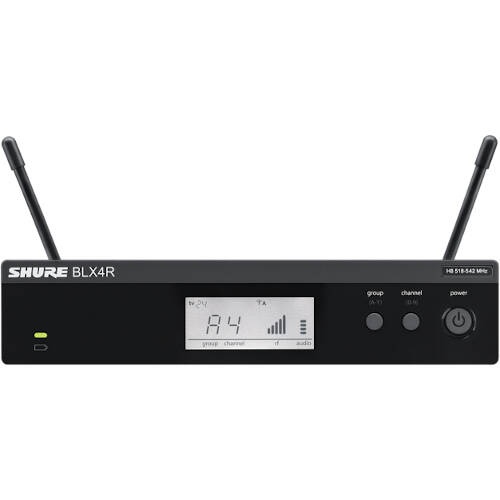

The BLX4R receiver employs a microprocessor-controlled antenna diversity system to improve the quality and reliability of your wireless audio. The receiver can be rackmounted with the included hardware, allowing you to position the two removable antennas on the front of the rack for optimal signal reception.

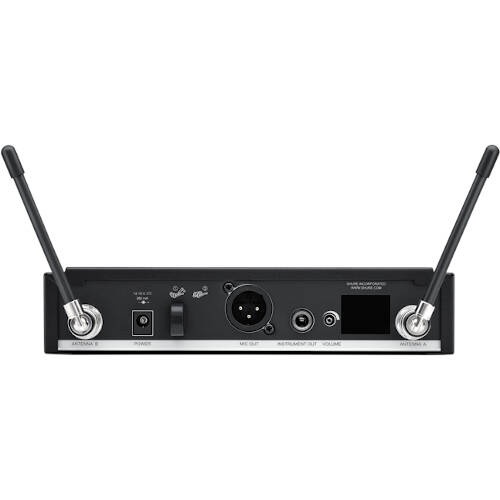

The LCD display shows group and channel settings, and allows you to meter audio level and signal strength. An LED indicator even lets you keep an eye on the transmitter's remaining battery life. The unit offers 1/4" and XLR connectors with adjustable output level for flexible connectivity to PA systems and mixing boards.In the Box:

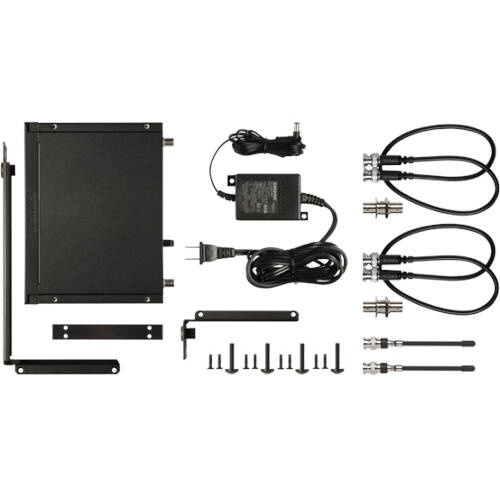

Shure BLX24R/B58 Rackmount Wireless Handheld Microphone System with Beta 58A Capsule
Shure BLX4R Rackmount Wireless Receiver
Shure BLX2/B58 Handheld Wireless Microphone Transmitter with Beta 58A Capsule
Microphone Clip
2 x Antennas
2 x BNC Antenna Adapters
2 x BNC Antenna Cables (22")
Hardware Mounting Kit
Short Rackmount Bracket with Link Bar
Long Rackmount Bracket
2 x AA Batteries
Shure PS24US Power Supply for Select Wireless Receivers
Padded Zipper CaseSystem
Wireless Transmission Analog UHF
Number of RF Channels 123
Included Transmitters 1 x Handheld
Diversity Antenna Diversity
RF Bandwidth 24 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 300' / 91.4 m (Line of Sight)
Max Systems per Setup 12
Dynamic Range 100 dBA
Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave External, Detachable (Rear-Mount)
Number of Audio Channels 1
Audio I/O
1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TS Female Unbalanced Output
Audio Output Level XLR Output:
-20.5 dBV (Mic Level)
1/4" Output:
-13 dBV (Instrument Level)
Frequency Response 50 Hz to 15 kHz (Dependent on Mic)
Impedance XLR Output:
200 Ohms
1/4" Output:
50 Ohms
Adjacent Channel Isolation >50 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 to 15 VDC at 260 mA, Center-Positive (Included)
AC Input Power 110 to 240 VAC, 50 / 60 Hz
Display & Indicators
1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
1 x LED (Transmitter Battery Status)
Housing Steel
Operating Temperature 0 to 135°F / -17 to 57°C
Dimensions 7.8 x 2 x 6.4" / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
Weight 35.2 oz / 998 g
Transmitter
Form Factor Handheld
RF Output Power 10 mW
Audio I/O None
Muting Off/On Switch
Auto-Level Control No
Gain Range -20 to -10 dB
Sync Method Manual
Antenna 1 x Internal (Handheld)
Power Requirements Battery
Battery Type 2 x AA (Included)
Approx. Battery Life 14 Hours (Alkaline)
Display & Indicators
1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
Housing ABS
Dimensions 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
Weight 7.7 oz / 218 g (without Batteries)
Microphone
Form Factor Handheld Capsule
Sound Field Mono
Capsule Dynamic
Polar Pattern Supercardioid
Frequency Range 50 Hz to 16 kHzH8E (518-542 MHz)
J10 (584-608 MHz)
K3E (606-630 MHz)
M17 (662-686 MHz)
Sensitivity -51 dBV/Pa
