Inspire your audience. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.
Compact bodypack transmitter, unobstrusive clip-on microphone
Antenna-switching diversity reception
Integrated antennas
Automatic frequency management and synchronization via remote channel for easy setup
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels

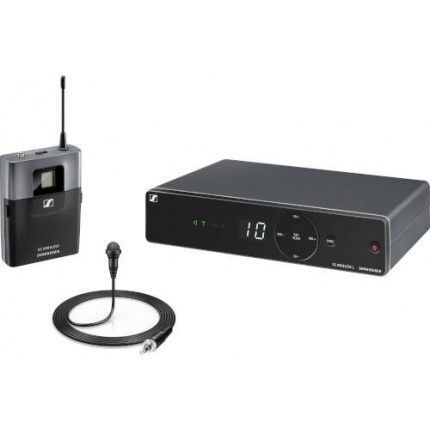

In the Box:
1 receiver EM-XSW 1
1 lavalier microphone ME 2-2
1 bodypack transmitter SK-XSW
1 power supply NT 12-5 CW
2 AA batteriesAs Sennheiser Singapore's Official Dealer, the equipment we supply will be supported through the Sennheiser Singapore Service Centre (Carry-in Service)
Receivers
Dimensions
approx. 200 x 42 x 127 mm
Weight
approx. 340g
Power supply
12 V DC nom. / 300 mA
AF frequency response
50 to 16,000 Hz (–3 dB)Frequency ranges
A: 548 to 572 MHz
GB: 606 to 630 MHz
B: 614 to 638 MHz
BC: 670 to 694 MHz
Transmitter
Dimensions
approx. 71 x 96 x 28 mm
Weight
approx. 95g
Power supply
2 AA size batteries, 1.5 V
Adjustment Range Transmitter
0 to -30 dB, adjustable in 10 dB steps
Microphone
condenser
THD, total harmonic distortion
≤ 0.9%
Pick-up pattern
omni-directional
Signal-to-noise ratio
≥ 103 dBA
RF output power
10 mW
Switching bandwidth
up to 24 MHz
Operating time
approx. 10 hrs
Modulation
wideband FM
Output voltage
'1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing
rugged ABS housing
Diversity reception
antenna switching diversity via internal antennas
Sensitivity
3 μV at 52 dB(A)rms S/N
SPL for peak deviation
130 dB
Squelch
adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity
1.5 mV / Pa
Audio adjustment range
45 dB, adjustable in 5-dB steps
Line / Mic level
20 dB, switchable
Temperature Range
operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle
double superheterodyne
