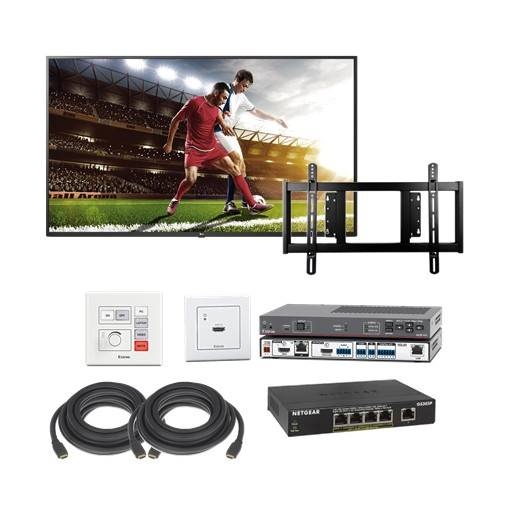

Meeting Space Collaboration Package with Extron HC402MK+ Extron NBP100+ Netgear GS305P+ LG 70UN731C+ Bracket & Cables

Extron HC402 MK Meeting Space Collaboration System

Video input
Number/signal type  Digital
HCT 101 D 1 HDMI (or single link DVI-D with the appropriate DVI-HDMI adapter)
HCR 102 1 HDMI (or single link DVI-D with the appropriate DVI-HDMI adapter)
Connectors
HCT 101 D 1 female HDMI type A
HCR 102 1 female HDMI type A
HDMI equalization Automatic
HDMI input cable length ≤50' (15 m) for resolutions up to 1920x1200 or 1080p @ 60 Hz; 2K, using Extron HDMI Pro Series cable
Resolution range 640x480 to 1600x1200 and 1920x1200*, 480p, 576p, 720p, 1080i, 1080p, and 2K*reduced blanking
Return loss -40 dB @ 5 MHz   DC offset (max. allowable) 1.5V
Standards DVI 1.0, HDMI 1.4, HDCP 1.4Interconnection between transmitter and receiver
Connector 1 female RJ-45 on each unit (transmitter and receiver)
Termination standard TIA/EIA T568B
Transmission distance Up to 230' (70 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable with a 1080p, 60 Hz signal
Cable requirements Solid conductor, 24 AWG or better
Cable recommendations 400 MHz bandwidth, STP (shielded twisted pair)
NOTE: Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance.Video processing   Decoder 12 bit digital (3D-adaptive comb filter)
Digital pixel data bit depth 8, 10, or 12 bits per channel; 165 MHz pixel clock
Colors 1 billion (10 bit processing)

Video output
Number/signal type 1 HDMI (with CEC)
Connectors 1 female HDMI
HDMI peripheral device power 250 mA
Scaled resolution 640x4806,8,9, 800x6006,8,9, 852x4806,8,9, 1024x7686,8,9, 1024x8526,8,9, 1024x10246,8,9, 1280x7686,8,9, 1280x8006,8,9, 1280x10246,8,9, 1360x7656,8,9, 1360x7686,8,9, 1365x7686,8,9, 1365x10246,8,9, 1366x7686,8,9, 1400x10506,8, 1440x9006,8,9, 1600x9006,8, 1600x12006,8, 1680x10506,8, 1920x12006,8HDTV 480p7,8, 576p6, 720p3,4,5,6,7,8, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8, 2048x10801,2,3,4,5,6,7,81 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz,4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 75 Hz
Audio
Gain Unbalanced output: 0 dB; balanced output +6 dB
Frequency response 20 Hz to 20 kHz, ±0.5 dB
THD + Noise 0.03%, 20 Hz to 20k Hz at nominal level
S/N >90 dB, at maximum output (15 dBu), balanced (unweighted)    Crosstalk ≤-80 dB @ 1 kHz, fully loaded
Stereo channel separation >80 dB @ 1 kHz to 20 kHz

Audio input
Number/signal type 1 analog stereo, unbalanced or2 digital audio, embedded in the HDMI signal
NOTE    Analog audio is not embedded onto the HCT 101 HDMI digital signal. You can select analog audio or digital embedded audio using Extron PCS Product Configuration Software.
Connectors 1 female 3.5 mm mini stereo jack; tip (L), ring (R), sleeve (ground)2 female HDMI Type A
Source formats
Analog Analog stereo audio
HDMI LPCM up to 7.1/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel   Impedance 10k ohms, DC coupled
Nominal level -10 dBV (316 mVrms), unbalanced
Maximum level +7 dBV, unbalanced   CMRR >60 dB typical, unbalanced, @ 1 kHz    NOTE    0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

Audio output
Number/signal type 1 analog, line level stereo, balanced or unbalanced (variable)1 digital, embedded in HDMI (fixed)
Connectors (1) 3.5 mm captive screw connector, 5 pole1 female HDMI   Impedance 50 ohms unbalanced, 100 ohms balanced
Gain error ±0.5 dB channel to channel   Maximum level (Hi-Z) >+15 dBu, balanced; >+9 dBu, unbalanced
Output volume range 0 to 100% in 1% steps

Communications
USB control port 1 front panel female USB mini-B
USB standards USB 2.0, high speed
Program control Extron Product Configuration Software (PCS) for Windows®

Communications — control processor
Memory
SDRAM 512 MB
Flash 512 MB
Software
Configuration software Extron Global Configurator® Plus and Professional      Utilities Toolbelt, embedded web page
Ethernet
Network interface controllers (NICs) 1
Connectors 1 female RJ-45 connector
Data rate 10/100Base-T, half/full duplex with autodetect
Protocols DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Default settings Link speed and duplex level = autodetectedIP address = 192.168.254.250Subnet mask = 255.255.255.0Gateway = 0.0.0.0DHCP = offDNS: 127.0.0.1
Serial
Quantity/type 1 bidirectional RS-232
Connectors (1) 3.5 mm captive screw connector, 3-pole
Baud rate and protocol 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits;1 (default) or 2 stop bits;no parity (default), even, or odd parity
NOTE    This 3-pole port supports software flow control. The default is no flow control.
Pin configuration  Pin 1 = Tx, 2 = Rx, 3 = Gnd
Digital I/O
Quantity/type 4 digital input/output (configurable)
Connectors (1) 3.5 mm captive screw connector, 6-pole
Digital inputs
Input voltage range 0 to 24 VDC, clamped at +30 VDC
Input impedance >10k ohms
Programmable pullup 1k ohms to +5 VDC
Threshold low to high 2.8 VDC
Threshold high to low 2.0 VDC
Digital outputs 250 mA sink from 24 VDC max.
Pin configurations Pins 1, 2, 4, 5 = digital I/Os 1, 2, 3, 4; pins 3, 6 Gnd
IR
Quantity/type 1 programmable TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz
Connector (1) 3.5 mm captive screw connector, 2-pole
Pin configuration Pin 1 = signal, 2 = Gnd
IR output carrier frequency 30 kHz to 300 kHz


General
Power supply External, included
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 4.2 A, 50 watts
Power consumption
System
Device 16.8 watts
Device and power supply 19.0 watts
NOTE Connect the included 4.2 A, 50 W, external power supply to the HCR 102, and the receiver remotely powers the HCT 101 EU or HCT 101 MK. Alternatively, the transmitter can be powered locally by an optional external power supply.
Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing
Cooling Convection, vents on top and sides
Thermal dissipation
System
Device 56.4 BTU/hour
Device and power supply 65.9 BTU/hour
Mounting
HCT 101 EU
Furniture or wall mount Yes, with an EU 1-gang electrical junction box and included EU 1-gang frame
HCT 101 MK
Furniture or wall mount Yes, with an MK 1-gang electrical junction box and included MK 1-gang frame
HCR 102
Rack mount Yes, with optional 1U high rack shelf or back of the rack mounting kit
Furniture mount Yes, with included, attached MBU 125 under-desk mounting brackets
Enclosure type Metal
Enclosure dimensions
HCT 101 EU
Frame 3.17" H x 3.17" W x 0.40" D (1-gang)
(81 mm H x 81 mm W x 10 mm D)
Device 2.17" H x 2.17" W x 1.60" D
(55 mm H x 55 mm W x 41 mm D)
(Excludes faceplate. Fits mounting frames that accept 55 mm x 55 mm modules and fits many 1 gang EU junction boxes. Allow at least 2.4" [61 mm] depth in the wall or furniture.)

HCT 101 MK
Frame 3.39" H x 3.39" W x 0.40" D (1-gang)
(86 mm H x 86 mm W x 10 mm D)
Device 2.17" H x 2.17" W x 1.60" D
(55 mm H x 55 mm W x 41 mm D)
(Excludes faceplate. Fits mounting frames that accept 55 mm x 55 mm modules and fits many 1 gang EU junction boxes. Allow at least 2.4" [61 mm] depth in the wall or furniture.)

HCR 102 1.0" H x 8.75" W x 6.0" D (half rack wide)
(25 mm H x 222 mm W x 152 mm D)
(Depth excludes connectors.)
Product weight
HCT 101 EU, HCT 101 MK 0.2 lb (0.1 kg)
HCR 102 1.2 lbs (0.6 kg)
Regulatory compliance CE**, C-tick, c-UL, FCC Class A**, ICES, UL, VCCI
Complies with the appropriate requirements of RoHS, WEEE
NOTE **CE and FCC testing is conducted with STP (shielded twisted pair) I/O cable.
Product warranty 3 years parts
NOTE All nominal levels are at ±10%.
NOTE Specifications are subject to change without notice.
(5467-D2)

Shipping Dimensions and Weights
Part # 42-287-01
Height Width Depth 8.0" (20.3 cm) 12.0" (30.5 cm) 10.5" (26.7 cm)
Weight 4.0 lbs (1.81 kg)

Extron NBP 100 Network Button Panel with 6 Buttons- US 2 Gang

Memory
SDRAM 512 MB
Flash 512 MB

Software
Configuration software Global Configurator® Plus and Professional
Programming software Global Scripter®
Control apps Extron Control
Resource management software GlobalViewer® Enterprise
Utilities Toolbelt, embedded web page

Ethernet
Network interface controllers (NICs) 1
Connector 1 female RJ-45 connector
Data rate 10/100Base-T, half/full duplex with autodetect
Protocols DHCP, DNS, HTTP (redirect), HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Default settings Link speed and duplex level = autodetected
IP address = 192.168.254.253
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0
DHCP = off
DNS = 127.0.0.1

General
Power supply Not included
Power input requirements Power over Ethernet (PoE) (complies with PoE 802.3af, class 3)
Power consumption
NBP 100
Device 2.2 watts
Device and PoE injector 3.9 watts
Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling Convection, no vents
Thermal dissipation
NBP 100
Device 7.3 BTU/hr
Device and PoE injector 13.3 BTU/hr
Mounting
Rack mount No
Furniture or wall mount
NBP 100 Yes, in a standard US 2-gang electrical junction box or mud ring
Enclosure type Plastic faceplate and high-impact plastic rear enclosure
Enclosure dimensions
NBP 100
Faceplate 4.50" H x 4.60" W x 0.30" D (114 mm H x 117 mm W x 8.6 mm D)
Device 2.63" H x 3.50" W x 1.85" D (67 mm H x 89 mm W x 47 mm D)
(Depth excludes faceplate, buttons, and knob. Fits most 2 gang US boxes or mud rings. Allow depth in the wall or furniture for device and cable clearance.)
Product weight
NBP 100 1.2 lb (0.5 kg)
Regulatory compliance CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI Complies with the appropriate requirements of RoHS, WEEE, and Section 508 of the Rehabilitation Act (29 U.S.C. 794d).
Product warranty 3 years parts
NOTE    All nominal levels are at ±10%.
NOTE    Specifications are subject to change without notice.(5413-D4)

Shipping Dimensions and Weights
Part # 60-1794-014.25" (10.8 cm)
Height Width Depth 5.5" (14.0 cm)5.5" (14.0 cm)
Weight 1.15 lbs (0.52 kg)

LG 70UN731C 70" 4K UHD Commercial Display

Display

Screen Size 70” / 65” / 55” / 50” / 49” / 43”
Resolution 3,840 × 2,160
IPS Panel Yes (Wide Viewing Angle, Except 70” / 65” / 55” / 50” / 43”)
Wide Viewing Angle Yes (Wide Viewing Angle, Except 70” / 65” / 55” / 50” / 43”)
BLU Type Direct

Video
(Picture Quality)

Processor Quad Core Processor 4K
Image Enhancing Image Enhancing
HDR / HDR10 Pro / HLG Active HDR / Yes (4K / 2K) / Yes (4K / 2K) FILMMAKER MODETM Yes HDR Effect Yes (4K / 2K)
Dynamic Tone Mapping / Pro HDR Dynamic Tone Mapping
Dimming Algorithm LG Local Contrast
Upscaler 4K Upscaler
Picture Mode 10 Modes (Vivid, Standard, Eco, Cinema, Sports, Game, HDR Effect, Filmmaker, (ISF) Expert (Bright Room, Dark Room))

Audio

Sound Output 20 W (10 W per Channel)
Channel 2.0 ch
Direction Down Firing
Surround Mode Ultra Surround
Bluetooth Surround Ready Yes (Bluetooth Required)
LG Sound Sync Yes (Bluetooth Required)
Auto Notification (Bluetooth Easy Paring) Yes (Bluetooth Required)
Sound Share Yes

Broadcasting
System

Digital TV Reception (Terrestrial, Cable, Satellite) DVB-T2, DVB-C (VH Only), -
Analog TV Reception Yes

AI Function

ThinQ, Intelligent Voice Recognition, Speech to Text, LG Voice Search, Google Assistant, Amazon Alexa, AI UX, AI Home, AI Recommendation,
Intelligent Edit, Home Dashboard, Auto Device Detection, Smart Speaker Compatible, Google Home Connection, Amazon Echo Connection,

LG ThinQ Hub Device, LG Smart Speaker (WK7, WK9), Mobile Connectivity, ThinQ App

Smart Feature

webOS Smart TV, Number of CPUs (Quad,) Magic Remote Control (Built-In), Quick Access, Universal Control, 360° VR Play, Related Content Search,
LG Store, DIAL, Web Browser, Music Player, TV On with Mobile, Wi-Fi TV On, Bluetooth Low Energy On, Network File Browser,
Block Access to Harmful Site, Live Plus (ACR-based Bilateral Service (webOS5.0 : Australia (Asia))), Hotel Mode, Sports Alert, Music Discovery

Connectivity

Screen Share, HDMI 2.0 (Rear / 2 Side), Features Specified in HDMI 2.1 (HDMI 2.0), Simplink (HDMI CEC), eARC / ARC (Audio Return Channel (ARC (HDMI 2)),
USB (Rear / Side), LAN (Rear), Component (Rear, Component In / AV in Common), Composite In (AV (Rear, Component In / AV in Common)),

RF In (RF), SPDIF (Optical Digital Audio Out (Rear)), Wi-Fi (802.11 ac), Bluetooth (V 5.0)

Dimension W × H × D / Weight (with Stand) Differ by Size, Region W × H × D / Weight (without Stand) Differ by Size, Region W × H × D / Weight (Shipping) Differ by Size, Region

Power & Green

Power Supply AC 100-240 V ~, 50/60 Hz (Differ by Region)
Standby Power Consumption Under 0.5 W
Power Consumption (Max) Differ by Size, Region
Energy Saving Mode Yes
Illuminance Green Sensor Yes
Energy Standard Yes (Differ by Region)
Accessory Remote MR20
Power Cable Yes (TV Detached)
