The Extron eLink 100 is a professional‑grade wireless transmitter and receiver set for extension of HDMI video and multi‑channel audio up to 100 feet (30 meters). This HDCP‑compliant extender features a robust wireless communication technology to ensure high reliability and real‑time performance with exceptional image quality for resolutions up to 1920x1080, including HDTV 1080p/60. It includes features designed specifically for professional AV systems such as AES‑128 encryption to ensure a secure link and use of the 5 GHz spectrum for transmission through multiple walls. Extron eLink™ technology ensures reliable operation of up to four eLink extender sets, even if other wireless systems are within the same facility. In addition to point‑to‑point designs, one transmitter can support four receivers to create a wireless distribution system.
When you buy meeting collaborative system solutions online from Singapore's Premier AVL Superstore, you will benefit from the support of our experienced team of experts. For Government sector customers, we are a GeBiz registered vendor with an EPPU grade S7.
For connection stability within environments with multipath signals, the eLink 100 uses a robust multi‑input and multi‑output - MIMO communication technology that reliably delivers high quality video and audio with real-time performance. MIMO technology provides maximum throughput to enable precise image transmission of high resolution video with ultra‑low latency, which makes the extender suitable for live presentations. Use of the 5 GHz spectrum allows omnidirectional transmission through walls and furniture.
Extron eLink 100 Professional Grade Wireless Extender for HDMI
- Reliable, professional-grade wireless extension of HDMI video and multi-channel audio signals up to 100 feet (30 meters)
- Capable of transmitting through multiple walls and furniture
- Supports computer video up to 1920x1080, including HDTV 1080p/60
- HDCP Compliant
- Ultra-low latency transmission of video and audio signals
- Professional-grade technology enables simultaneous transmission from one transmitter to as many as four receivers
LG 70UN731C 70'' 4K UHD Commercial Display
- Built-in TV Tuner
- Brightness: 350 cd/m2
- Resolution: 4K UHD
- Smart Features (Hotel Mode, Google assistant, Screen share, Airplay)
- Web Browser
- Inbuilt Wifi
- Bluetooth 5.0
- 1 X Component, 3 x HDMI

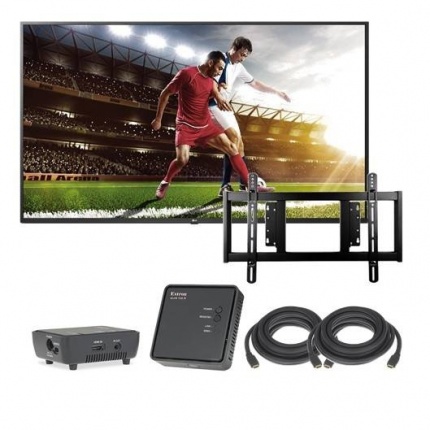

Package consists of
1 x Extron eLink 100 Professional Grade Wireless Extender for HDMI
1 x LG 70UN731C 70" 4K UHD Commercial Display
1 x Standard Wall Mount Bracket
2 x 1m HDMI 2.0 CableNot included - Get in touch with us to arrange a site visit and quote
Cabling and conduit
Height access by M.O.M Approved Scaffold Contractor (If required)
Installation, testing & commissioning by W.A.H certified workmen by BizSafe Level 3 contractor.Extron eLink 100 Professional Grade Wireless Extender for HDMI
Video
Maximum data rate 6.75 Gbps (2.25 Gbps per color)
Maximum pixel clock 148.5 MHz
Resolution range Up to 1080p @ 60 Hz; 8, 10, or 12 bit color depth and VESA up to 1920x1080 @ 60 Hz
Supported resolutions 720(1440)x4801, 640x4801, 720x4801, 720(1440)x5762, 720x5762, 1280x7203, 1920x10803,4, 1366x7685, 1440x9005, 1400x10505, 1600x9005, 1680x10505, 640x4806, 800x6007, 1024x7688, 1280x7209, 1920x10803,9
1 = 60 Hz, and 59.94 Hz
2 = 50 Hz
3 = 50 Hz, 60 Hz, and 59.94 Hz
4 = 50 Hz, 60 Hz, 23.98 Hz, 24 Hz, 25 Hz, 59.94 Hz, 29.97 Hz, and 30 Hz
5 = 60 Hz
6 = 72 Hz, and 59.94 Hz
7 = 60 Hz, and 72 Hz
8 = 60 Hz, and 70 Hz
9 = 50 Hz, 60 Hz, 23.98 Hz, 24 Hz, 59.94 Hz, 29.97 Hz, and 30 Hz
Formats RGB and YCbCr digital video
Standards DVI 1.0, HDMI, HDCP 2.0
Signal transmission distance Up to 100 ft (30 m)
Video input — transmitter
Number/signal type 1 single link HDMI (or DVI-D*)
Connector 1 female HDMI type A
Video output — receiver
Number/signal type 1 single link HDMI (or DVI-D*)
Connector 1 female HDMI type A
Audio
Supported formats PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital Surround EX, DTS 2-channel, DTS Digital Surround 5.1, DTS 96/24
Communications
IR control port (Rx) Included IR remote control
IR pass-through control port (Rx to Tx) Unidirectional, 38 KHz
Signal characteristics
HDCP compliant Yes
Bandwidth 40 MHz
Transmission distance 100 ft (30 m)
Operating frequency
EU: 5.19 ~ 5.23 GHz
DFS center frequencies
EU: 5.27 ~ 5.67 GHz
System latency 1 ms
Security Encryption Standards AES-128
General
Power supply External
Input: 100-240 VAC, 50-60 Hz
Output: 5 VDC, 2.6 A, 13 watts
Power consumption
Transmitter
Device 7.5 watts, 5 VDC
Device and power supply 8.8 watts, 100-240 VAC, 50-60 Hz
Receiver
Device 7.5 watts, 5 VDC
Device and power supply 9.0 watts, 100-240 VAC, 50-60 Hz
Temperature/humidity Storage: -4 to +176 °F (-20 to +80 °C) / 10% to 90%, noncondensing
Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing
Cooling Convection
Thermal dissipation
Transmitter
Device 24.4 BTU/hr
Device and power supply 28.9 BTU/hr
Receiver
Device 24.4 BTU/hr
Device and power supply 29.6 BTU/hr
Mounting
Wall mount Yes
Enclosure type Plastic
Enclosure dimensions
Transmitter 1.4" H x 3.2" W x 4.0" D
(3.6 cm H x 8.0 cm W x 10.2 cm D)
Receiver 1.3" H x 3.7" W x 3.7" D
(3.4 cm H x 9.5 cm W x 9.5 cm D)
Product weight
Transmitter 0.3 lbs (0.1 kg)
Receiver 0.3 lbs (0.1 kg)
Vibration ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety UL, c-UL, CE
EMI/EMC CE, C-tick, FCC Class B, ICES, VCCI, KC
Environmental Complies with the appropriate requirements of RoHS, WEEE
Product warranty 3 years
NOTE All nominal levels are at ±10%.
NOTE Specifications are subject to change without notice.
Shipping Dimensions and Weights
eLink 100 T EU
Part # 60-1490-12 2.63"
Height Width Depth (6.7 cm) 6.75" (17.1 cm) 5.75" (14.6 cm)
Weight 0.94 lbs (0.43 kg)
eLink 100 R EU
Part # 60-1490-13
Height Width Depth 2.63" (6.7 cm) 6.75" (17.1 cm) 5.75" (14.6 cm)
Weight 0.93 lbs (0.42 kg)LG 70UN731C 70" 4K UHD Commercial Display
Display
Screen Size 70” / 65” / 55” / 50” / 49” / 43”
Resolution 3,840 × 2,160
IPS Panel Yes (Wide Viewing Angle, Except 70” / 65” / 55” / 50” / 43”)
Wide Viewing Angle Yes (Wide Viewing Angle, Except 70” / 65” / 55” / 50” / 43”)
BLU Type DirectVideo
(Picture Quality)Processor Quad Core Processor 4K
Image Enhancing Image Enhancing
HDR / HDR10 Pro / HLG Active HDR / Yes (4K / 2K) / Yes (4K / 2K) FILMMAKER MODETM Yes HDR Effect Yes (4K / 2K)
Dynamic Tone Mapping / Pro HDR Dynamic Tone Mapping
Dimming Algorithm LG Local Contrast
Upscaler 4K Upscaler
Picture Mode 10 Modes (Vivid, Standard, Eco, Cinema, Sports, Game, HDR Effect, Filmmaker, (ISF) Expert (Bright Room, Dark Room))Audio
Sound Output 20 W (10 W per Channel)
Channel 2.0 ch
Direction Down Firing
Surround Mode Ultra Surround
Bluetooth Surround Ready Yes (Bluetooth Required)
LG Sound Sync Yes (Bluetooth Required)
Auto Notification (Bluetooth Easy Paring) Yes (Bluetooth Required)
Sound Share YesBroadcasting
SystemDigital TV Reception (Terrestrial, Cable, Satellite) DVB-T2, DVB-C (VH Only), -
Analog TV Reception YesAI Function
ThinQ, Intelligent Voice Recognition, Speech to Text, LG Voice Search, Google Assistant, Amazon Alexa, AI UX, AI Home, AI Recommendation,
Intelligent Edit, Home Dashboard, Auto Device Detection, Smart Speaker Compatible, Google Home Connection, Amazon Echo Connection,LG ThinQ Hub Device, LG Smart Speaker (WK7, WK9), Mobile Connectivity, ThinQ App
Smart Feature
webOS Smart TV, Number of CPUs (Quad,) Magic Remote Control (Built-In), Quick Access, Universal Control, 360° VR Play, Related Content Search,
LG Store, DIAL, Web Browser, Music Player, TV On with Mobile, Wi-Fi TV On, Bluetooth Low Energy On, Network File Browser,
Block Access to Harmful Site, Live Plus (ACR-based Bilateral Service (webOS5.0 : Australia (Asia))), Hotel Mode, Sports Alert, Music DiscoveryConnectivity
Screen Share, HDMI 2.0 (Rear / 2 Side), Features Specified in HDMI 2.1 (HDMI 2.0), Simplink (HDMI CEC), eARC / ARC (Audio Return Channel (ARC (HDMI 2)),
USB (Rear / Side), LAN (Rear), Component (Rear, Component In / AV in Common), Composite In (AV (Rear, Component In / AV in Common)),RF In (RF), SPDIF (Optical Digital Audio Out (Rear)), Wi-Fi (802.11 ac), Bluetooth (V 5.0)
Dimension W × H × D / Weight (with Stand) Differ by Size, Region W × H × D / Weight (without Stand) Differ by Size, Region W × H × D / Weight (Shipping) Differ by Size, Region
Power & Green
Power Supply AC 100-240 V ~, 50/60 Hz (Differ by Region)
Standby Power Consumption Under 0.5 W
Power Consumption (Max) Differ by Size, Region
Energy Saving Mode Yes
Illuminance Green Sensor Yes
Energy Standard Yes (Differ by Region)
Accessory Remote MR20
Power Cable Yes (TV Detached)
