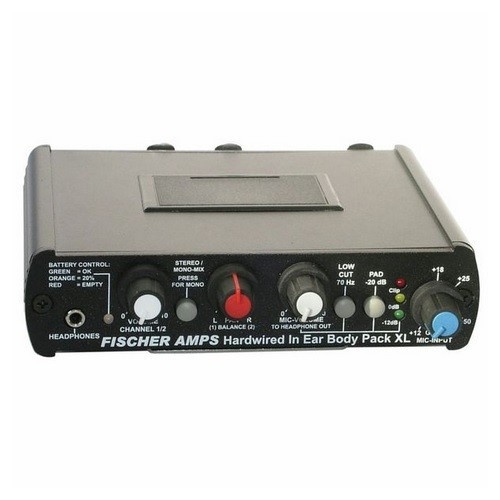

The Fischer Amps In Ear Body Pack XL is a professional wired in-ear monitor beltpack amplifier designed for musicians, orchestras, broadcast engineers and live sound professionals who require greater control over their personal monitor mix. Based on the Fischer Amps Hardwired In Ear Body Pack, the XL version adds a dedicated microphone input with integrated microphone preamp, allowing users to mix their own microphone signal with the incoming stereo or mono monitor feed.
The microphone input features 48 V phantom power, adjustable gain, a -20 dB PAD, switchable Low-Cut filter, and an XLR Mic Thru output for looping the microphone signal to another device. The unit also includes Stereo, Mono and Mono Mix operating modes, an integrated limiter for hearing protection, and operates from a standard 9 V battery or optional external DC power supply. Designed and manufactured in Germany, it is an ideal solution for vocalists, orchestra musicians and monitor engineers requiring maximum flexibility on stage.
In the Box
1 × Fischer Amps In Ear Body Pack XL
User Documentation -
General
Product Type: Wired In-Ear Monitor Beltpack Amplifier
Brand: Fischer Amps
Model: In Ear Body Pack XL
SKU: FA-IEBPXL
Article No.: HA00001130Construction
Aluminium housing
Stainless-steel belt clip

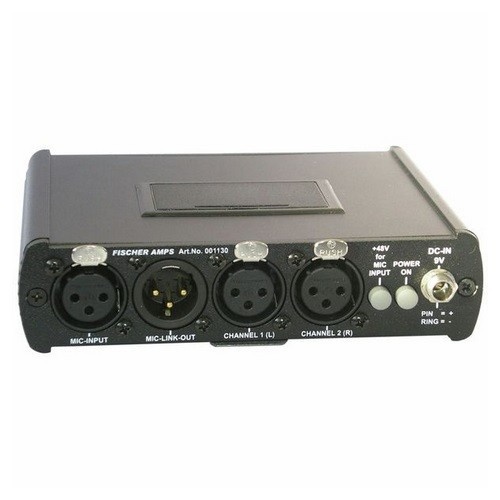

Locking Neutrik XLR connectorsConnectivity
2 × XLR Monitor Inputs
1 × XLR Microphone Input
1 × XLR Microphone Thru Output
1 × 3.5 mm Stereo Headphone Output
1 × Locking 9 V DC InputAudio Specifications
Frequency Response: 30 Hz – 20 kHz (±2 dB)
Maximum Output Power: 40 mW per channel @ 20 Ω
Minimum Headphone Impedance: 12 Ω per channel
Input Impedance:
15 kΩ (Monitor Inputs)
2 kΩ (Microphone Input)
15 kΩ with PAD enabled
Nominal Input Level: 0 dBV
Maximum Input Level: +4 dBV
Input Limiting Threshold: +5 dBV
Microphone Gain: -60 dB to +6 dB
48 V Phantom Power
Integrated Limiter
Stereo / Mono / Mono Mix modes
Switchable Low-Cut Filter
-20 dB PADPower
Power Supply:
1 × 9 V Alkaline Battery
8.4 V NiMH Rechargeable Battery (minimum 210 mAh)
Optional 9 V DC Locking Power Supply
Battery Life:
Approx. 7.5 hours (9 V alkaline)
Approx. 4 hours (270 mAh NiMH rechargeable)Dimensions
Dimensions (L × W × H): 136 × 125 × 32 mm
Weight: Approx. 430 g (without battery)Applications
Live Performance
Orchestra Monitoring
Vocal Performance
Theatre Productions
Broadcast Production
Studio Monitoring
Houses of Worship
Monitor Engineering
