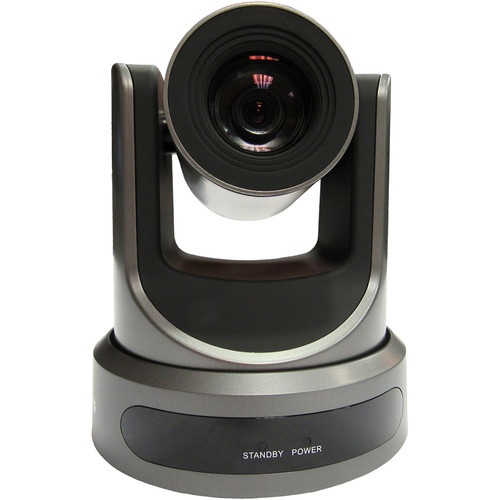

The 30X-SDI Gen 2 Live Streaming Broadcast Camera, in gray, from PTZ Optics, features simultaneous 1080p 3G-SDI, HDMI, and IP streaming and offers a 30x optical zoom, which is suitable for large conferencing rooms and auditoriums. It also has a composite output that can be used on its own (without any of the other outputs concurrently) to deliver 576i/480i resolution. The camera streams up to 1080p60 resolution. When streaming over all three of the main outputs at the same time, you can select 1080p60 for SDI and HDMI while up to only 1080p30 for IP or you can select 1080p60 for IP and 1080p30 for SDI and HDMI.
The 30X-SDI Gen 2 can be powered over PoE or an included power supply. It offers RS-232 and RS-485 serial control, an audio line in for HDMI and IP streaming, and 10 presets via the included IR remote control or 255 via serial or IP control.
Features:
60.7° wide-angle lens
Low-light sensitive with Wide Dynamic Range (WDR)
Simultaneous 3G-SDI, HDMI, and IP streaming
Up to 1080p60 resolution
Composite output (576i/480i)
2D and 3D noise reduction
RS-232 and RS-485 serial control
IP (LAN/WAN) control
H.264, H.265, and MJPEG streaming over RJ45 LAN port
Power over Ethernet or 12 VDC power supply
RTMP and RTSP IP streamingIn the Box:
PTZ Optics 30X-SDI Gen 2 Live Streaming Broadcast Camera (Gray)
Power Supply
IR Remote Control
RS-232C Cable
2 x AAA BatteriesImage Sensor
Image Sensor 1-Chip 1/2.7" CMOS Sensor
Signal-to-Noise Ratio 55 dB
Sensitivity f/1.8 at 0.5 lux
Camera
Shutter Speed 1/30 to 1/10,000 sec
Flip / Mirror Support Mirror (Vertical)
Lens
Optical Zoom Ratio 30x
Focal Length 4.4 to 132.6mm
Field of View Horizontal: 2.28 to 60.7°
Vertical: 1.28 to 34.1°
Maximum Aperture f/1.8 to 2.8
Video Output
Output Formats SDI, HDMI, RJ45: 1920 x 1080p at 25, 30, 50, 60 fps
1920 x 1080i at 50, 60 fps
1280 x 720p at 25, 30, 50, 60 fps
Control
Presets 10 via IR
255 via IP
Movement Range Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Supported Control Protocols Pelco-D
Pelco-P
RS-232
RS-485

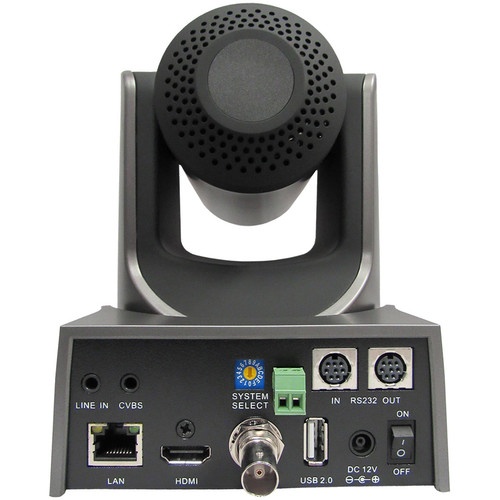

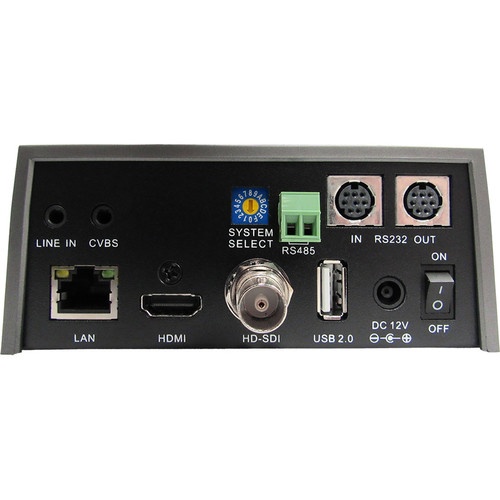

Interfaces
Video Output Connectors 1 x BNC (3G-SDI)
1 x HDMI Type A
1 x RJ45
1 x 1/8" / 3.5 mm TS (Composite)
Audio I/O 1 x 1/8" / 3.5 mm Stereo Input
Control Interface 1 x 8-Pin Mini-DIN (RS-232) Input
1 x 8-Pin Mini-DIN (RS-232) Output
1 x 2-Wire (RS-485)
Other I/O 1 x USB (Unspecified Type)
Power
PoE Support Yes
Power Connectors 1 x JEITA (10.8 to 13 VDC)
Power Consumption 12 W
General
Dimensions 6.7 x 6.3 x 5.5" / 17 x 16 x 14 cm
Weight 3 lb / 1.4 kg
