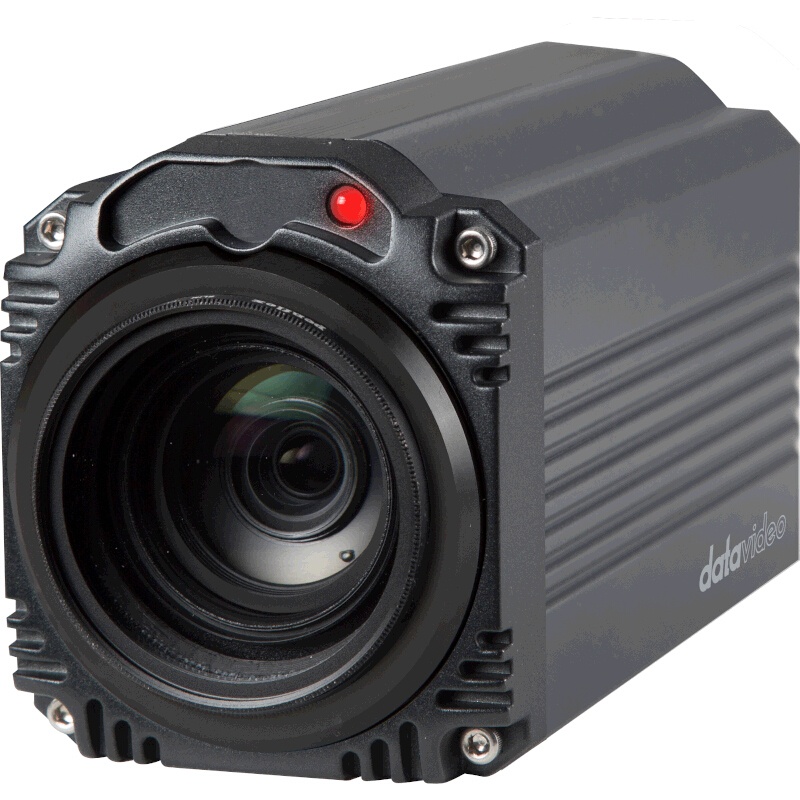

Datavideo's BC-50 1080p HD Block Camera captures up to 1080p60 resolution video and allows you to output the signal via a 3G/HD/SD-SDI port to connect it to a switcher or other broadcast device. You can also simultaneously stream the signal to RTMP destinations in up to 1080p60 over an Ethernet port. Moreover, you can transmit a second stream in up to 720p60 resolution over the same Ethernet port. The camera offers up to 20x optical and 16x digital zoom, adjusting from a 4.3 to 129mm focal length. The BC-50 is designed for applications requiring fixed camera positions, such as certain indoor sports (like table tennis), TV studios, or virtual studios. To use it in PTZ operations, you can incorporate the optional PTR-10 Robotic Pan and Tilt Head from Datavideo.

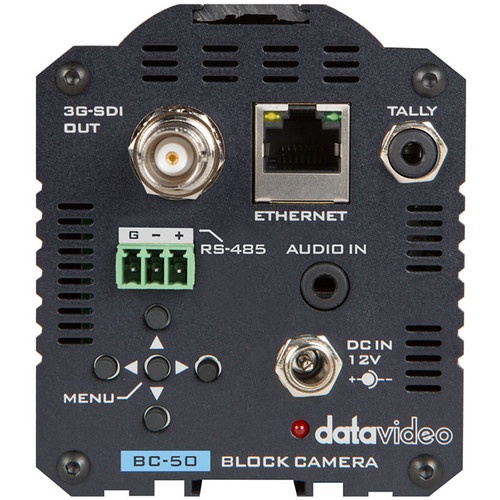

In a compact and rugged all-metal body, the camera features an SDI output, 3.5mm audio input (does not embed into SDI output; can be used for streaming), Ethernet port, and RS-485 control interface with up to a 3280' control range. It supports VISCA, Pelco-D, and Pelco-C control protocols. The camera has a dual-color tally light on the front above the lens. For accessories, it offers a long shoe mount slot on top, and for mounting it has a 1/4"-20 tripod mount on the bottom. Many settings are adjustable, including shutter speed, gamma, iris, white balance, gain, and focus. Many of these can also be set to auto. Video is encoded in H.265, H.264, and MJEPG formats. The camera also has a M52.0 x 0.75 filter thread. A 12V power adapter is included for providing continuous powering to the camera.
Features:
Captures up to 1080p60 resolution video for SDI output to switchers and other devices
Up to 1080p60 RTMP IP streaming over an Ethernet port at the same time as the SDI output
Second stream in up to 720p60
20x optical and 16x digital zoom
3.5mm audio input (does not embed into SDI out; can be used for streaming)
RS-485 control interface with up to a 3280' control range
VISCA, Pelco-D, and Pelco-C control protocol support
Dual-color LED tally light on the front
Long shoe mount slot on top for accessories
Tripod mount on the bottom
H.265, H.264, and MJEPG compression formats
Adjustable shutter speed, gamma, iris, white balance, gain, and more
M52.0 x 0.75 filter thread
Compact all-metal bodyIn The Box:
1 x BC-50 main unit
1 x DC 12V power adaptorVideo format
1080p 60/50/30/25
1080i 60/50
720p 60/50Image Sensor
1/2.7" progressive scan CMOS sensorEffective Pixels (approx.)
2.07 Mega pixelsS/N Ratio
55 dBMin. Illumination
0.05 Lux @ (F1.8, AGC ON)Electronic Shutter
1/30 ~ 1/10000 secZoom Ratio
20x Optical zoom, 16x Digital zoomGamma Control
YesIris Control
Auto / ManualDigital Noise Reductions
2D & 3DOn-Screen Display (OSD)
English, Simplified Chinese, Traditional ChineseWhite Balance
Auto, 3000K/Indoor, 4000K, 5000K/Outdoor,
6500K_1, 6500K_2, 6500K_3, One Push, ManualAGC / Gain Control
Auto / Manual (0 to 28 step)
Max. Gain Limit (6 to 28 step)Mirror / Flip Image
YesFocus Mode
Auto / ManualFocal Length
f=4.3 mm (WIDE) to 88.5 mm (TELE)
F1.6 to F4.7Field of View (Horizontal, Wide)
Approx. 63.7° (WIDE END) / 2.3° (TELE END)Image Compensation
Day & Night functionVideo Output
3G/HD-SDI x1Audio Input
3.5mm Jack (Stream Output Only)Tally LED
Dual color (Red, Green)Filter
M52.0 x 0.75 Thread with UV ProtectionProtocol
VISCA, Pelco-D, Pelco-CRemote Control Interface and Transmit Distance
RS-485: Transmit up to 1000mVideo Compression Format
H.265, H.264, MJEPGAudio Compression Format
AACNetwork Protocol
TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etcF/W Update
EthernetTripod Mount
1/4-20 UNCOptions
PTR-10Color
Dark blueDimension (LxWxH)
71 x 162 x 83 mmWeight
0.7 kgOperating Temp. Range
0~40 °CPower
DC 12V 6W
