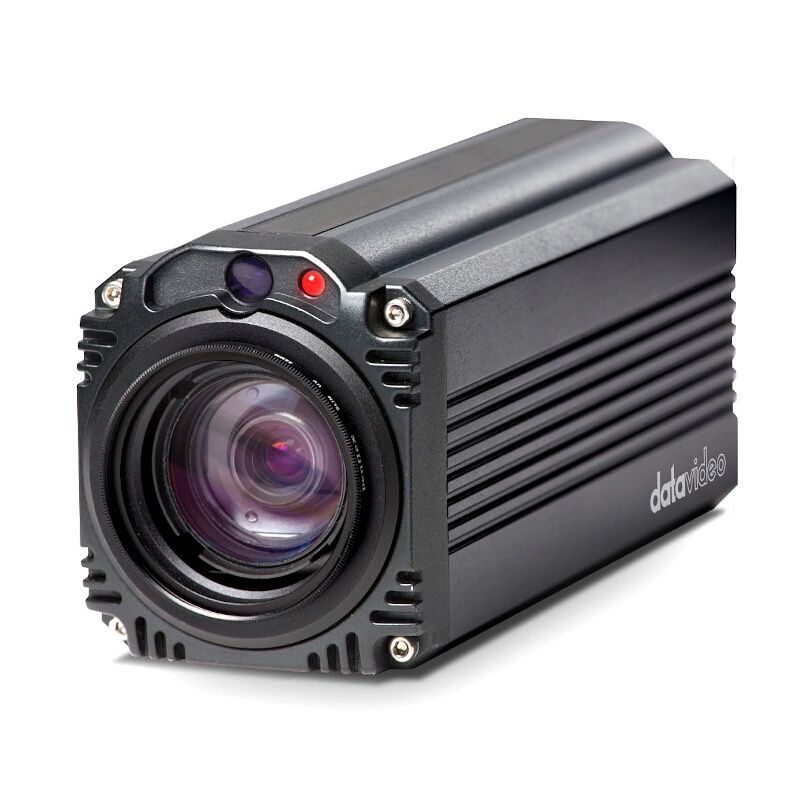

The Datavideo BC-80 1080p HD Block Camera captures up to 1080p59.94 resolution video and allows you to output the signal simultaneously via 3G/HD/SD-SDI and HDMI outputs to connect to switchers and other broadcast devices. The BC-80 is designed for applications requiring fixed camera positions such as certain indoor sports (like table tennis), TV studios, or virtual studios. The camera offers up to 30x optical zoom, which is suitable for large spaces, including auditoriums. To additionally use it in PTZ operations, you can incorporate the optional PTR-10 Robotic Pan and Tilt Head from Datavideo.

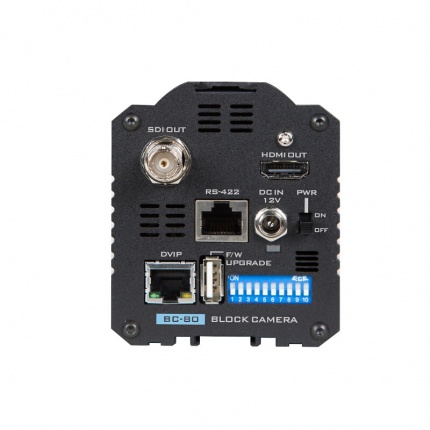

In a compact and rugged all-metal body, the camera features an SDI output, HDMI output, and RS-422 and DVIP RJ-45 control interfaces. It supports the VISCA control protocol and has a DIP switch for setting the VISCA ID, remote control protocol, and other settings. The camera also has a dual-color tally light on the front above the lens. For accessories, it offers a long shoe mount slot on top, and for mounting it has a 1/4"-20 tripod mount on the bottom. Many settings are adjustable, including shutter speed, gamma, iris, white balance, gain, and focus, and these and other settings can be assigned to one of 10 preset positions. Many of these settings can also be set to auto. The camera also has a M52.0 x 0.75 filter thread. A 12V power adapter is supplied for providing continuous power to the camera, and an IR remote control is included for executing many common tasks.
Features:
Captures up to 1080p59.94 video for simultaneous output via 3G/HD/SD-SDI and HDMI outputs
30x optical zoom
RS-422 and DVIP RJ-45 control interfaces
Supports the VISCA control protocol
DIP switch
Dual-color LED tally light on the front
Long shoe mount slot on top for accessories
Tripod mount on the bottom
Adjustable shutter speed, gamma, iris, white balance, gain, and more
10 savable presets (for various settings)
M52.0 x 0.75 filter thread
Compact all-metal bodyIn The Box:
1 x BC-80 main unit
1 x IR remote control
1 x DC 12V power adaptorVideo format
1080p 59.94/50/29.97/25
1080i 59.94/50
720p 59.94/50Image Sensor
1/2.8” type progressive scan CMOS sensorEffective Pixels (approx.)
2.14 Mega pixelsS/N Ratio
50 dBMin. Illumination
Color : 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)Electronic Shutter
1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100, 1/120 (1/125), 1/150(1/180), 1/215( 1/250), 1/300(1/350), 1/425(1/500), 1/600(1/725), 1/1000, 1/1250(1/1500) secZoom Ratio
30x Optical ZoomGamma Control
Off / Normal / Standard Mode 1-4Iris Control
Auto / ManualDigital Noise Reductions
YesOn-Screen Display (OSD)
EnglishWhite Balance
AWB, MWB, One push WB, Outdoor, Indoor, FluorescentAGC / Gain Control
Auto / Manual (0 to 28 step)
Max. Gain Limit (6 to 28 step)Mirror / Flip Image
YesFocus Mode
Auto / ManualPreset
10 PositionFocal Length
f=4.3 mm (WIDE) to 129 mm (TELE)
F1.6 to F4.7Field of View (Horizontal, Wide)
Approx. 63.7° (WIDE END) / 2.3° (TELE END)Image Compensation
Day & Night functionVideo Output
HDMI (V1.3) x 1
3G-SDI x 1Tally LED
Dual color (Red, Green)Filter
M52.0 x 0.75 Thread with UV ProtectionProtocol
VISCA / DVIP ProtocolRemote Control Interface and Transmit Distance
RS-422: Transmit up to 1000m
DVIP (RJ45): 100mF/W Update
USBIR Control
YesCamera Control Unit
RMC-180/RMC-300CTripod Mount
1/4-20 UNCOptions
PTR-10Color
Dark blueDimension (LxWxH)
71 x 202 x 83 mmWeight
0.7 kgOperating Temp. Range
0~40 °CPower
DC 12V 15W
