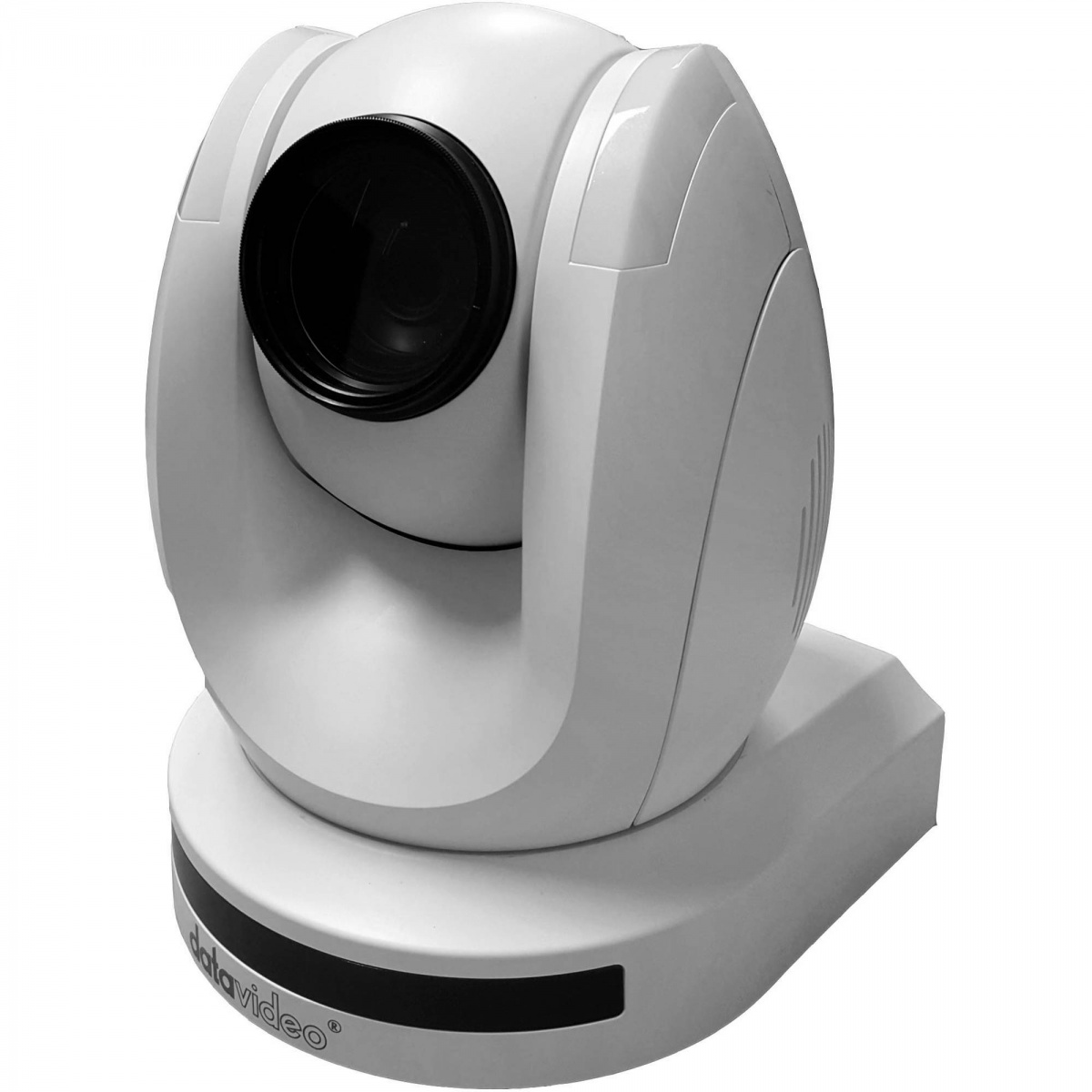

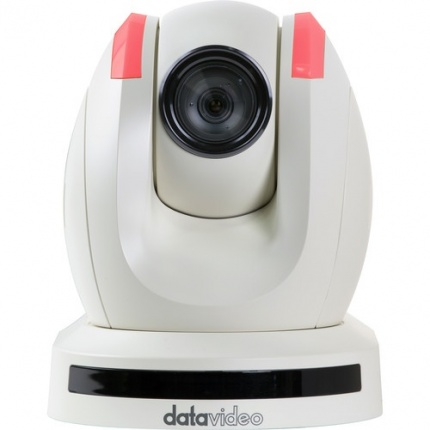

Datavideo PTC-150 HDMI/SDI PTZ Video Camera (White)

Capture high-resolution video up to 1080p with the dark gray PTC-150 HD/SD PTZ Video Camera from Datavideo. It can be remotely controlled to perform pan, tilt, and zoom operations using the included IR remote control or by using a separately available serial PTZ controller. The camera can be mounted on a wall, ceiling, floor, or tabletop.
The PTC-150 features motorized 30x optical zoom capability, a wide dynamic range, backlight compensation, image mirror and rotation, and a tally light to indicate when the camera is active. Video outputs include 3G-SDI, HDMI, or CVBS ports that can simultaneously output video signals. The lens features a field of view range of 2.3 to 63.7° as well as an M52 filter thread to add a separately available filter. It also features 50 programmable position presets for your pan, tilt, and zoom operations.
A built-in IR cut filter is included to assist with low-light shooting, which then is disabled for daylight shots. The camera supports the VISCA protocol for PTZ control using the serial RS-422 interface and DVIP over the unit's RJ45 port.

Features:
30x optical zoom
Position coordinates report in real time per frame
Dehazing technology allows foggy or hazy images to be clear and sharp

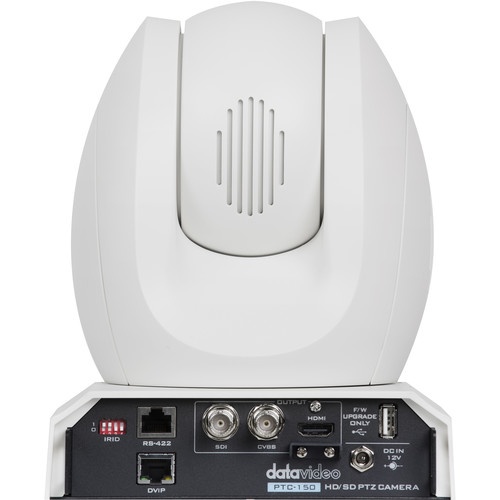

Simultaneous HD-SDI, CVBS, and HDMI video outputs
Supports DVIP control protocol using DVIP RJ45 port
Supports VISCA serial protocol over RS-422 RJ45 port
Built-in tally LED
Digital Noise Reduction function (DNR) reduces the noise and enables clearer image under low-light conditions

In The Box:
1 x PTC-150 Unit
1 x IR remote controller
1 x PTC-150 Thank You Card
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Power Cord
1 x A braided safety cable

Specifications

Video format
1080p 59.94/50/29.97/25
1080i 59.94/50
720p 59.94/50
480i, 576i (on CVBS)

Image Sensor
1/2.8” type progressive scan CMOS sensor

Effective Pixels (approx.)
2.14 Mega pixels

S/N Ratio
50dB

Min. Illumination
Color : 0.4 lx
B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)

Electronic Shutter
1/25~1/1250 sec (50/25Hz)
1/30~1/1500 sec (59.94/29.97Hz)

Zoom Ratio
30x Optical Zoom

Gamma Control
Off / Normal / Standard Mode 1-4

Iris Control
Auto / Manual

Digital Noise Reductions
Yes

On-Screen Display (OSD)
English

White Balance
AWB, MWB, One push WB, Outdoor, Indoor, Fluorescent

AGC / Gain Control
Auto / Manual
Max. Gain Limit

Mirror / Flip Image
Yes

Focus Mode
Auto / Manual

Panning / Tilting Range
Pan: 270° , Tilt: +90° to -20°

Panning / Tilting Speed
Manual: 1~150°/Sec
Swing: 1~150°/Sec

Preset
50 Position

Focal Length
f=4.3 mm (WIDE) to 129 mm (TELE)
F1.6 to F4.7

Field of View (Horizontal, Wide)
Approx. 63.7° (WIDE END) / 2.3° (TELE END)

Image Compensation
Day & Night Function

Video Output
3G-SDI x1
HDMI x1
CVBS x1

Tally LED
Dual color (Red, Green)

Filter
M52.0 x 0.75 Thread with UV Protection

Protocol
VISCA, DVIP

Remote Control Interface and Transmit Distance
RS-422: Transmit up to 1000m
DVIP (RJ45): 100m

F/W Update
USB

IR Control
Yes

Camera Control Unit
RMC-180/RMC-300C

Tripod Mount
1/4-20 UNC

Options
WM-1/WM-10

Color
Black/White

Dimension (LxWxH)
173 x 189 x 219 mm

Weight
2.7 kg

Operating Temp. Range
0~40 °C

Power
DC 12V 29W
