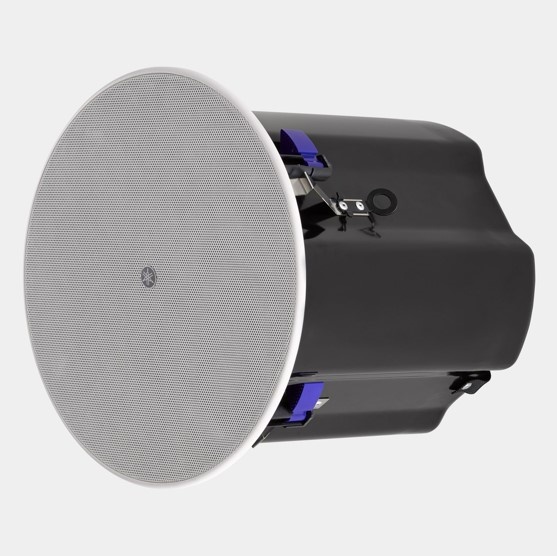

Yamaha VXC8SW 8" Ceiling Subwoofer (WHITE)

S$ 450.00
(S$ 450.00 excl GST)
Special order! Expected availability: 5+ weeks Not refundable/exchangeable
What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!

Sold per UNIT

Key Features:
  • Sound and size ideally matched to the VXS and VXC series
  • Band-pass design ensures smooth, distortion-free low-frequency extension
  • Direct support for low-impedance or high-impedance connections
  • Built-in carrying band increases safety during installation
  • Anti-drop tab mechanism provide secure temporary positioning during installation
  • Double-threaded speaker clamp screws for speedy tightening
  • Paintable grilles with magnetic catches
Show moreShow less
  • Naturally Extended Lows Bring the Music to Life
    VXC series “S model" ceiling subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction without spoiling interior design of architectures.

    A Choice of Models for All Low-frequency Needs
    Luxurious bass response can enhance musical presence and realism in a big way. The enclosures of VXC series S models incorporate a band-pass design to reduce unwanted vibrations and noise, making it possible to achieve a higher SPL.

    Smart Design for Safer, Faster Installation
    The VXC-S ceiling speakers come with smart mechanical features that contribute to significantly safer, faster installation. And since these models support both low-impedance and high-impedance connection, the need for extra stock is minimized and systems can be designed to ideally meet the requirements of any application.

    Features

    - Hi-Z or Lo-Z
    Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.

    - Portable
    A built-in "carrying band" not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.

    - Secure
    An anti-drop tab mechanism securely holds the speaker in place so that the installation can proceed safely and efficiently. There’s also a release lever that allows the speaker to be smoothly removed from the ceiling as required.

    - Fast
    Double threaded screws used for the speaker clamp mechanism allow the clamps to be tightened twice as fast as conventional screws.

    - Streamlined
    The supplied speaker grilles are firmly and elegantly held in place by powerful magnets. An anti-drop wire is also included.

    - Paintable
    The supplied grilles can be painted any color to match interior decor.

  • Speaker type - Band-pass type Subwoofer

    Frequency range (-10dB) - 44 Hz - 200 Hz (Half-space 2π)

    Nominal coverage -

    Components
    LF - 8" Cone

    Power rating
    NOISE - 100 W
    PGM - 200 W
    PEAK - 400 W

    Nominal impedance - 8 Ω

    Transformer taps
    100V - 60 W, 30 W, 15 W, 7.5 W
    70V - 60 W, 30 W, 15 W, 7.5 W, 3.8 W

    SPL
    Sensitivity (1W; 1m on axis): 88 dB SPL (Half-space 2π)
    Peak (Calculated): 114 dB SPL (Calculated, 1m)

    I/O connectors: Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)

    Protection circuit
    Load protection: Full-range power limiting to protect network and transducers

    Finish: VXC8SB: VXC8SW: White (approx. Munsell N9.3)

    Dimensions
    Diameter: 324 mm (12-13/16")
    D: 314 mm (12-23/64")

    Net weight: 8.7 kg

    Cutout size: Ø285 mm (Ø11-7/32")

    Required ceiling board thickness: 5 mm - 37 mm

    Accessories: Cutout Template

    Packaging: Single package

    Certificate: UL1480, UL2043, NFPA70, CE, EAC, RoHS
