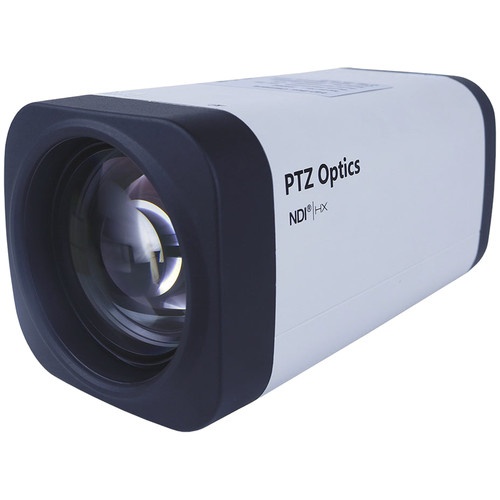

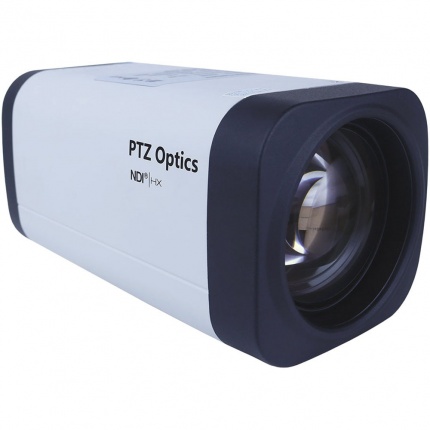

PTZOptics 12x NDI|HX ZCam 3G-SDI Box Camera

The 12x NDI|HX ZCAM 3G-SDI Box Camera from PTZOptics is designed to capture static shots of a specific area of your environment. It can be used in meeting rooms and conferencing applications as well as combined with PTZ cameras to provide more angle options in your setup. The camera features a built-in 12x optical zoom lens, which has a focal length of 3.5mm wide to 42.3mm telephoto. The zoom range is ideal for small spaces and allows getting wide shots in up to a 72.5° angle of view.
The camera offers up to 1080p60 output over 3G-SDI or up to 1080p30 over IP (NDI|HX or RTSP/RTMP). SDI and IP can be output simultaneously. The camera can be powered using an included power adapter or conveniently over Power-over-Ethernet. The same cable used for IP video and connectivity can also be used for PoE.

Features:
1/2.7" CMOS sensor
Simultaneous 3G-SDI and IP (NDI|HX or RTSP/RTMP) output
Up to 1080p60 resolution over SDI and 1080p30 over IP

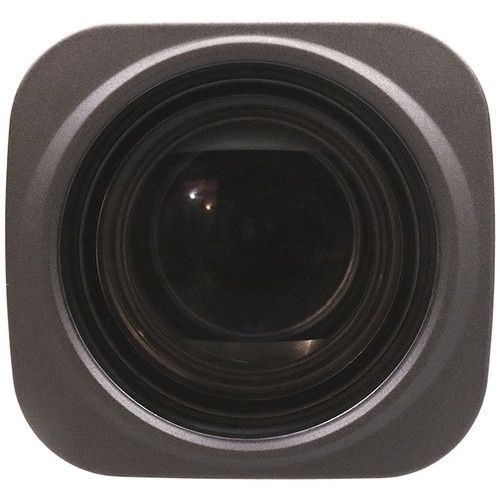

Integrated 12x optical zoom lens
Up to 72.5° horizontal field of view
High SNR (signal to noise ratio) combined with 2D and 3D noise reduction algorithms for reduced noise even in low-light conditions
RS-485 interface for wired remote control
Web-based IP remote control interface
Power-over-Ethernet (802.3af)
1/4"-20 mounting thread on the bottom

In the Box:
PTZOptics 12x NDI|HX ZCAM 3G-SDI Box Camera
AC Power Adapter

Specifications

Sensor 1/2.7" CMOS
Effective Pixels 2.07 MP

Resolution

1080p60/50/30/25, 1080i60/50, 720p60/50
IP/NDI|HX is Limited to 1080p30

Scanning Mode Progressive

Lens

Built-In
3.5 - 42.3mm
f1.8 - 2.8

Optical Zoom 12x
Digital Zoom 16x
Minimum Illumination 0.5 Lux at f/1.8, AGC On
Shutter 1/30 - 1/10000s
White Balance Auto, Indoor, Outdoor, One Push, Manual
Backlight Compensation Yes
Digital Noise Reduction 2D/3D DNR
Video S/N Ratio ≥55 dB
Horizontal Angle of View 6.9 to 72.5°
Vertical Angle of View 3.9 to 44.8°
Image Mirroring Yes
Number of Presets 255
Preset Accuracy 0.1°
Video Codecs H.264, H.265, MJPEG
Image Freeze Yes
Face Detection No
PoE Yes, 802.3af
Video Streams First / Second Stream

Streaming Resolution

First Stream:
1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 640 x 480, 640 x 360

Second Stream:
1280 x 720, 1024 x 576, 720 x 480, 720 x 408, 640 x 360, 480 x 270, 320 x 240, 320 x 180

Streaming Bit Rate

32 to 20480 Kb/s
Variable Rate, Fixed Rate

Streaming Frame Rates

SDI:
50 Hz: 1 - 50 fps
60 Hz: 1 - 60 fps

IP:
50 Hz: 1 - 25 fps
60 Hz: 1 - 30 fps

Streaming Audio Standard AAC
Streaming Audio Rate 96/128/256 Kb/s

Supported Protocols TCP/IP, HTTP, RTSP, RTMP, Multicast, DHCP

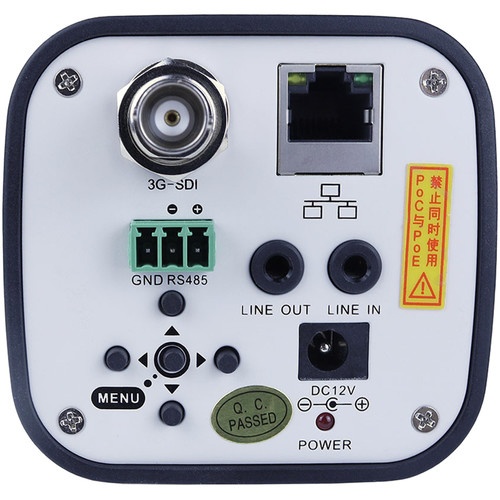

Video Output 1 x 3D-SDI on BNC
Network Interface 1 x RJ45: 10/100/1000M Adaptive Ethernet Port
Audio Input 1 x 3.5 mm Audio Line In

Communication Interface

1 x RS-485 3-Pin Phoenix Port
Max Distance: 4921' / 1500 m
Protocol: VISCA/Pelco-D/Pelco-P

Power Input JEITA Type 12 VDC
Input Voltage 12 VDC
Current Consumption 0.5 A (Max)
Operating Temperature 14 to 104°F / -10 to 40°C
Storage Temperature -40 to 140°F / -40 to 60°C
Power Consumption 6 W (Max)
Mount Type 1/4"-20 Female

Dimensions 3.1 x 2.9 x 6.3" / 7.8 x 7.3 x 16 cm
Weight 1.4 lb / 635 g
