Datavideo NVS-40 4-Channel Streaming Encoder and Recorder

S$ 2,880.00
(S$ 2,880.00 excl GST)
Out of stock
What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!
Key Features:
  • H.264 Streaming and Recording
  • 1 x SDI and 4 x HDMI Video Inputs
  • 1.4 HDMI & SDI Loop-Through Video Output
  • Streams via RTSP, RTMP, TS, and HLS
  • Analog XLR and RCA Audio Inputs
  • Resolution Range of 160x120 to 1920x1080
  • Bit Rate up to 30 Mb/s per Channel
  • Supports FAT/exFAT/NTFS
  • Controlled over the Web UI
  • Built-In Deinterlacer
Show moreShow less
  • The 1 RU 4-Channel Streaming Encoder and Recorder from Datavideo streams and records a variety of video resolutions by setting the encoder with various video formats and bit rates according to application and internet bandwidth limitations. The streaming encoder/recorder features one SDI and four HDMI video inputs as well as one HDMI 1.4 and one SDI video output. Resolutions up to 1920 x 1080 are supported.

    The streaming encoder/recorder allows external XLR balanced audio and RCA unbalanced audio input sources. It can also be used as a video IP switcher to switch between different videos via the internet. In addition, a separately available 2.5" HDD/SSD can be inserted into the encoder/recorder's front panel and formatted into NTFS, FAT, or exFAT, which allows you to record a single video file that exceeds 4GB.



    Features:

    Four input channels for video encoding, capturing, and streaming
    H.264 streaming and recording simultaneously

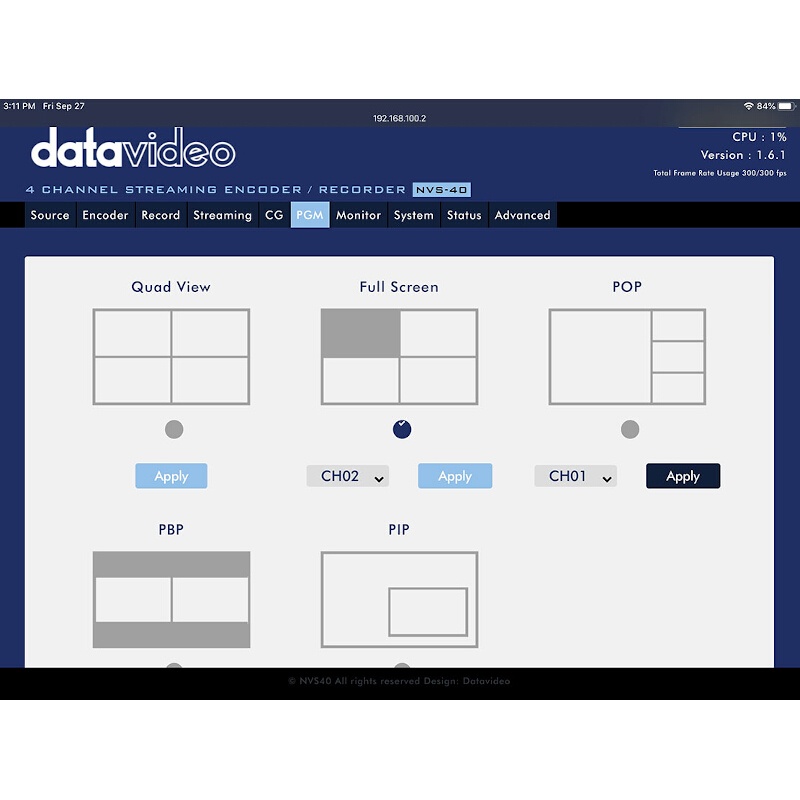

    Quad view, PiP, PoP, full screen, PbP screen layouts
    Dynamic parameter settings adjustment: GOP size, frame rate, and bit rate
    Dual-color LED indicator showing the status or detections



    In The Box:

    1 x NVS-40 main unit
    1 x DC 12V Power Adaptor
    2 x 1U Rack Mount Ear
    6 x M4 Screws for Rack Mount Ear
    1 x 2.5” Removable HDD/SSD Enclosure
    4 x Screws for 2.5 Removable HDD/SSD Enclosure
    1 x 500GB HDD
    1 x SATA to USB 3.0 Cable



    Recommended SSD Drives:

    ORICO SSD TROODON SERIES H100
    INTEL SSD 5
    SAMSUNG SSD 860 Pro
    PNY CS900 SSD

  • Video Input
    HDMI x4
    (Channel 1 SDI/HDMI selectable)

    Supported Video Input Resolution
    1080p 60/59.94/50
    1080p 30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50
    576i 50
    480i 59.94

    Video Output
    HDMI 1.4x1
    SDI loopthrough x1

    Audio Input
    RCA L/R x1
    XLR x2

    Encode
    H.264/AVC High Profile Level 4.1

    Video Bitrate
    Each Channel Rec + Stream 30Mbps

    Video Rate Mode
    CBR

    Audio Mode
    Stereo/Mono

    Audio Bitrate
    AAC-LC
    Sample rate: 48KHz, 16bit
    Configurable bit rate: 128K or 256K or 384K

    Streaming Protocols
    TS over UDP unicast & multicast
    RTSP over HTTP/TCP/UDP
    RTMP/RTMPS (Publish)
    HLS
    SRT

    Recording File Format
    MP4, MOV, TS

    Storage
    SSD/HDD x1
    (File System: NTFS, FAT, exFAT)

    Power Supply
    DC 12V 16W

    Dimension (LxWxH)
    480 x 180 x 44 mm

    Weight
    2.3kg

    Operating Temp. Range
    0~40 °C
