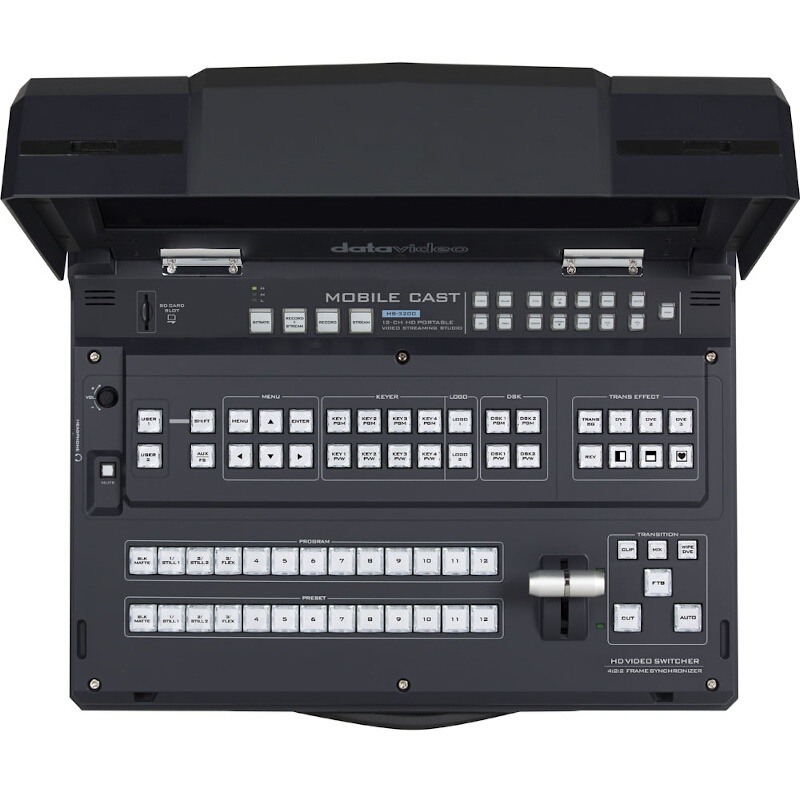

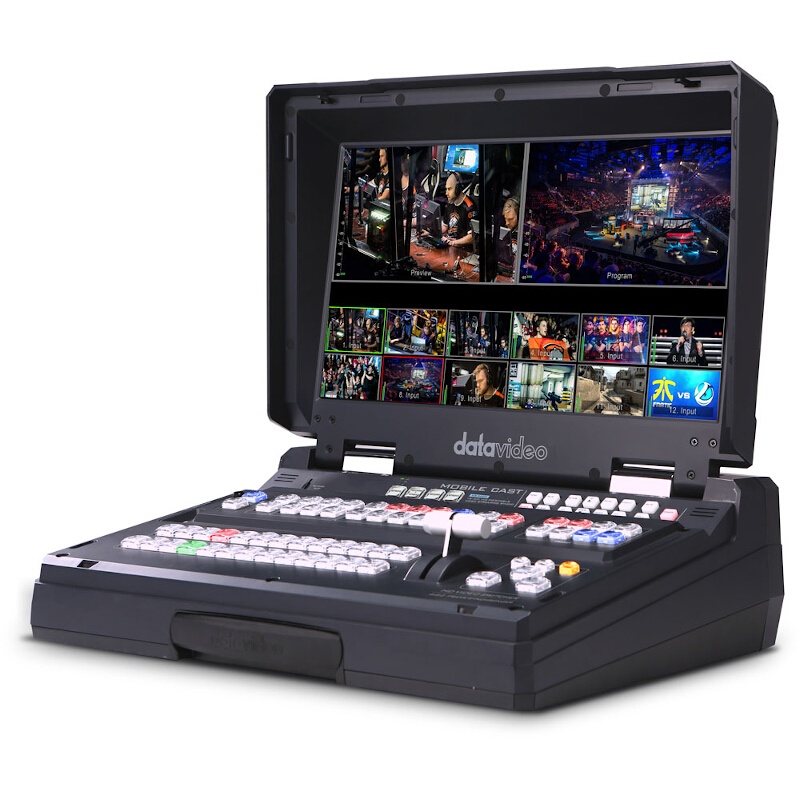

Datavideo HS-3200 12-Input HD-SDI & HDMI Mobile Streaming Studio

The 12-Input HD-SDI & HDMI Mobile Streaming Studio with 17.3" LCD Monitor from Datavideo is a 12-channel portable switcher with 1080p60 (3G) high-definition support, 12 digital inputs including eight SDI and four HDMI with embedded audio, and five SDI plus four HDMI outputs for connecting an HD recorder and external monitors.
The Mobile Studio also features chroma/luma keying, DSK, PiP, a wipe generator, still stores, logo insertion, and a built-in title overlay system for use with a separately available character generator.

Features:

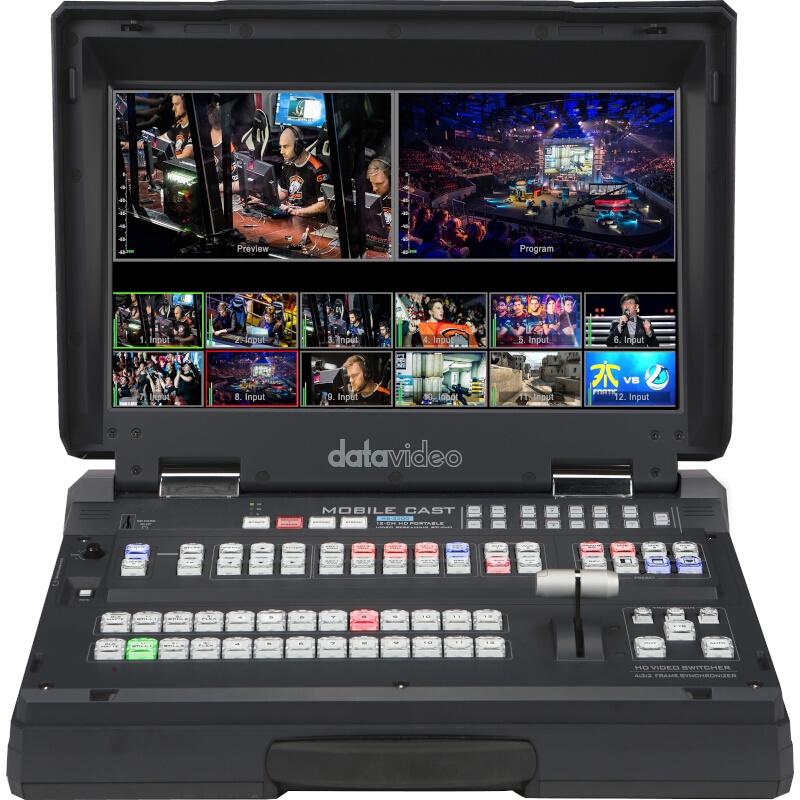

17.3" Full HD video monitor with multiview
Four upstream keyers that support chroma/luma key
Multiview displays video input sources, preview video, and program video
Lightweight and portable design for live events and TV programs that need to mix a variety of video and audio sources
Easy-to-use video streaming and recording device for professional video producers

In The Box:
1 x HS-3200 Unit
1 x AD Switch DC 12V with AC Cord

Specifications

Video Standard
Full HD

Video Format
1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz

Input Routable / Crosspoint
All 12
repeatable

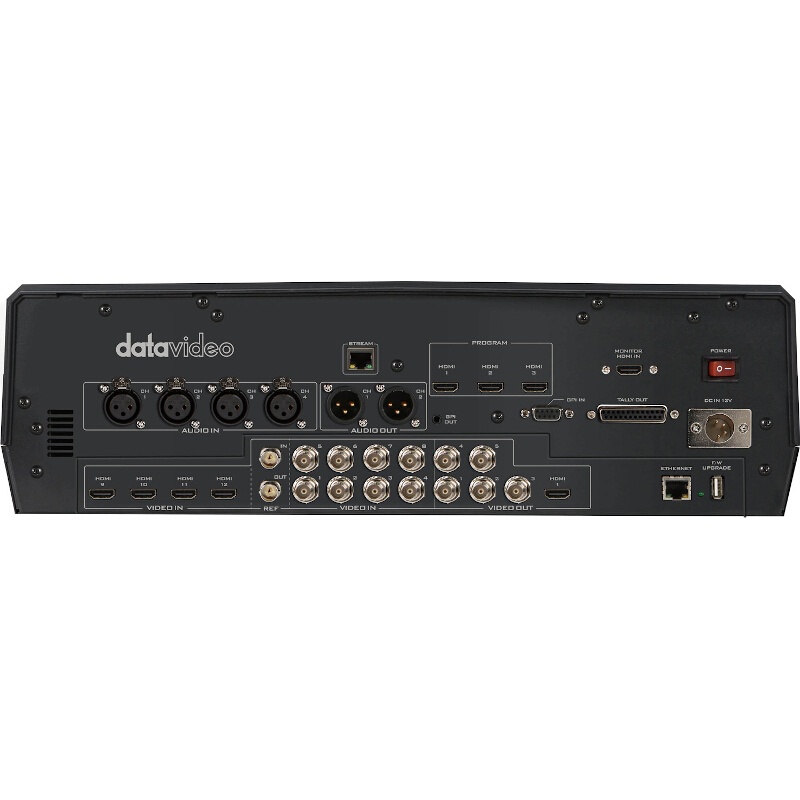

Video Input
8x SDI

4x HDMI

Computer Graphic Interface
4 via HDMI

Down-converted Output
1x SDI

Video Output
5x SDI, 1x HDMI assignable:
Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source 3x HDMI PGM only

Analogue Audio Input
4x Balanced XLR

Analogue Audio Output
2x Balanced XLR

Digital Embedded Audio Support Input
Input 2 channels,
Output 4 channels

Audio Delay Calibration
Up to 16 frames

A+V Switching
Yes

USK
4

DSK
2, support Lumakey & Linear key (Key / Fill)

Picture in Picture
8 (4x Keyer, 4x Flex Source)

Logo Insertion
2

Title Creator
Yes, CG-200 software free download

Built-in Audio Mixer
N/A

Built-in Monitor Display
17.3” HD TFT LED backlit, 1920x1080 pix

Built-in Intercom & Tally
N/A

Streaming Video Encode
H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps

Streaming Audio Encode
AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16-bit

Streaming Protocol
TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP
RTMP/RTMPS (Publish)
SRT

Streaming Control
Web browser UI for configuration and control Socket commands

Recording File System
MP4

Streaming & Recording Setting Control
Web UI for system configuration and control

Special Features
4 Chroma-Key Virtual Studio
9 stinger transition and 4 user preset
Built-in TC-200 CG interface
Streaming encoder and recorder
12x9 matrix seamless switch
Dimension (LxWxH)
455 x 355 x 134 mm

Weight
17.8 Lbs (8.1 kg), Reinforce Plastic Case

Power
DC 12V, 11A

Operating Temp. Range
0~40 °C
