UNLOCK YOUR TRUE SOUND

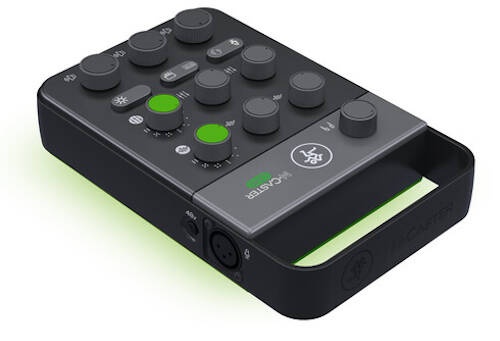

Looking to step up your audio game on your streams, podcast, or videos? M•Caster Live is the ultimate portable audio solution for mobile devices and Mac/PC. Plug in your mic, sweeten your sound with ContourFX and StreamFX, then stream in minutes. M•Caster Live also features dedicated headset and media player inputs, USB connectivity, and user-selectable RGB lighting, plus it can be powered via an external USB battery.Connect directly to your smartphone’s headphone jack to both send and receive audio
Connect your favorite mic, headset, and more
Pick the perfect vocal sound with selectable ContourFX Presets
StreamFX makes it easy to add the finishing touch with fun voice-changing effects
RGB LED strip with 7 user-selectable colors
USB connectivity allows for use as an audio interface on a Mac/PCIn the Box:
Mackie MCaster Live Portable Streaming Mixer (Black)
Power Supply
3.5mm TRS Aux Cable
3.5mm TRRS Cable for Smartphones
USB CableForm Factor Desktop
Display None
Channels of I/O 4 Inputs / 2 Outputs
Number of Microphone Preamps 1 Preamp
Built-In Microphone None
Input Level Adjustment 3 x Knob
Expansion Slots None
Signal Processing
Gain/Trim Range 0 dB to +16 dB
High-Pass Filter None
Connectivity
Analog Audio I/O
1 x XLR 3-Pin Balanced Mic Input
1 x 1/8" / 3.5 mm TRS Unbalanced Headset Input
1 x 1/8" / 3.5 mm TRS Unbalanced Line Input
1 x 1/8" / 3.5 mm TRRS Unbalanced Smartphone Input
1 x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
1 x 1/8" / 3.5 mm TRS Unbalanced Main Output
Phantom Power 48 V
Digital Audio I/O None
Host Connection / USB 1 x USB Type-C (Class-Compliant)
USB (Non-Host) 1 x USB Type-C (Power Input)
Sync I/O None
Network I/O None
MIDI I/O None
Wireless Connectivity None
Audio Storage & Playback
Memory Card Slot None
Compatibility
OS Compatibility
Windows 10 or Later
Android 9 or Later
macOS 10.8 or Later
iOS 13 or Later
*As of January, 2022: Check with manufacturer for the most up-to-date compatibility
Included Software None
Included Plug-Ins Equalization:
Accusonus
RAM Requirements 32 MB, 64 MB Recommended
Power
Power Requirements USB Bus Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC/DC Power Adapter 5 VDC at 1 A (Included)
Power Consumption 5 W
Physical
Dimensions 8 x 5.1 x 2" / 203.2 x 129.5 x 50.8 mm
Weight 1.2 lb / 0.5 kg
