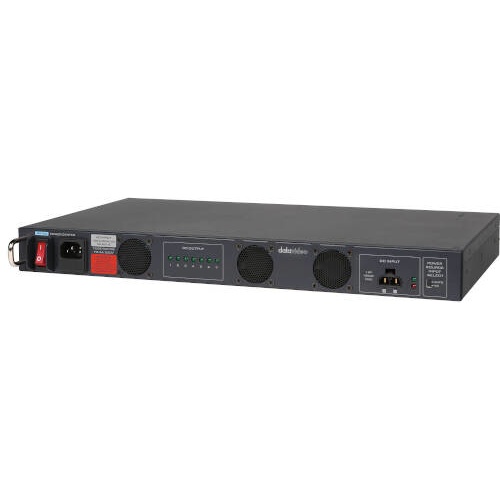

The PD-2A 1RU 19” Rack Power Distribution Center from Datavideo provides steady power supply for studio equipment, such as the video switcher, monitors, recorders, and intercom system.
The PD-2A power distribution center features auto-switchable inputs of 110/120VAC, a UPS interface, and 12VDC ports. In addition, it also features four 12V/3A terminals, two 12V/5A terminals, two 12V/10A terminals (shared), and XLR DC outputs. It adds reliability to studio equipment and consolidates power supplies and cabling.
Features:
Maximum rating 400 W
Power indicator and auto-recovering fuse protector for each output terminal
Sequential-Power On of each DC output terminal during power on stage by 1 second duration
Auto-switchable 110/120VAC or 12VDC UPS input source
Compliant safety
EMI and RoHS certificationIn The Box:
Datavideo PD-2A 1RU 19" Rack Power Distribution Center
AC CordAC Input
100~240 VAC (50Hz or 60Hz)

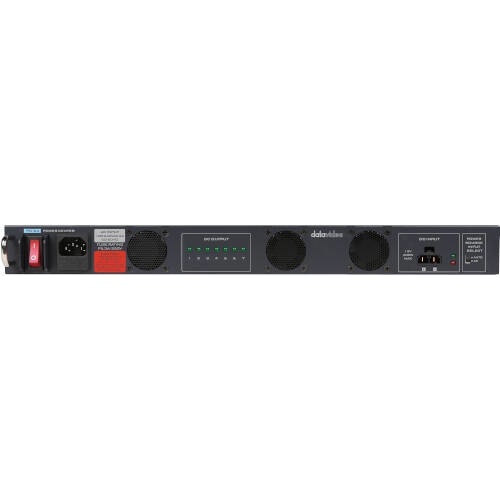

AC input outlet: One AC input with Power SwitchDC Backup Input
One DC 12V/32A
supports non-regulated DC 12V outputDC Output
8

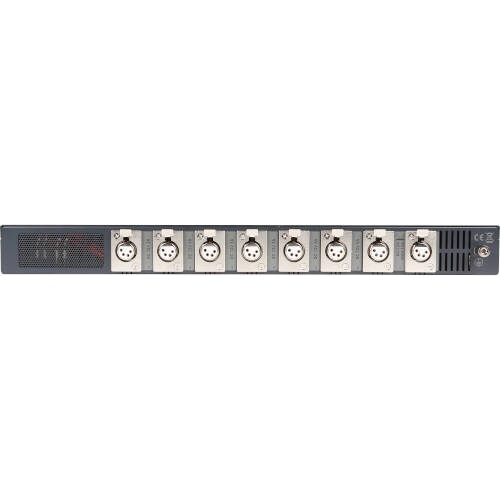

12V±5%, 3A XLR DC Female Jack x4
12V±5%, 5A XLR DC Female Jack x2
12V±5%, 10A XLR DC Female Jack x2Max. Power Rating
400WDC Overload
DC overload protection, auto-recovery
fuses on each DC output terminalAC Overload
non-recovery fuse on the AC input outletLED Indicator
8 DC output LED indicatorsPower Source Input Select AUTO/AC
Selectable of Auto/AC input switchDimension (LxWxH)
484 x 217 x 49 mmWeight
4.6 kgOperating Temp. Range
0~40 °CPower
AC 100-240 VAC
DC 12V 400W
