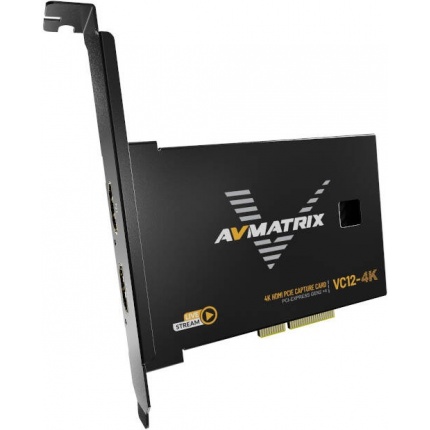

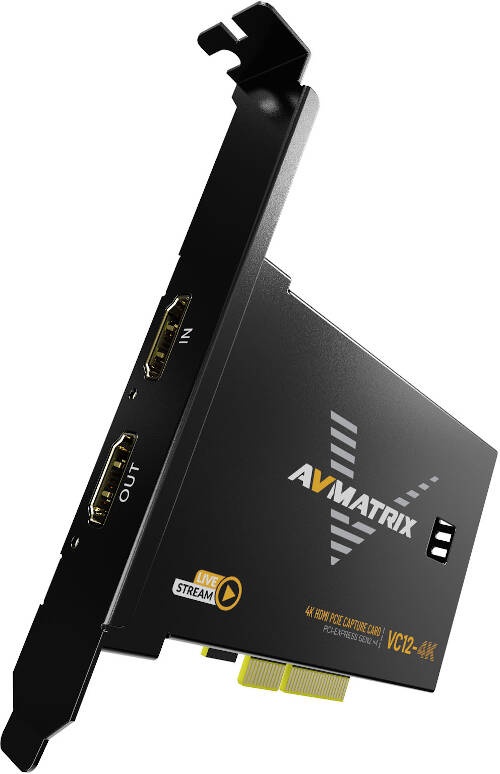

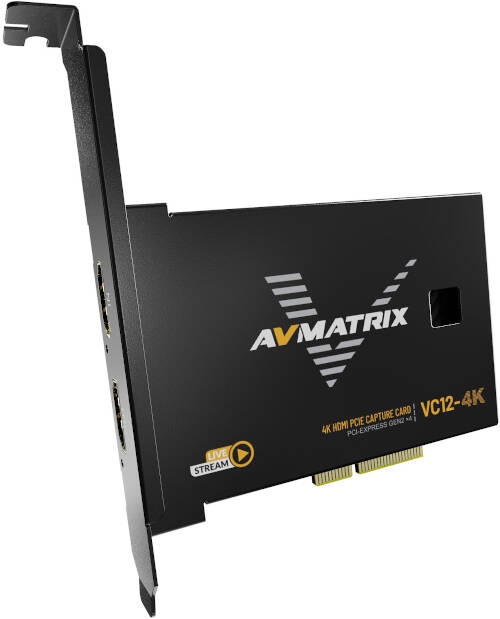

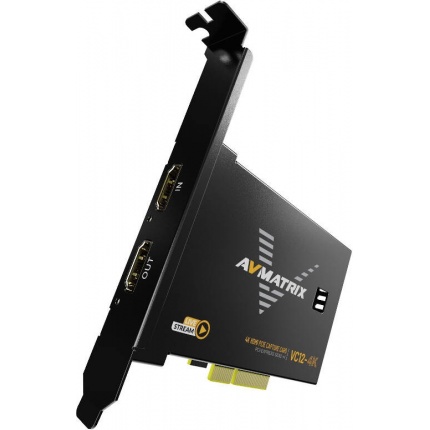

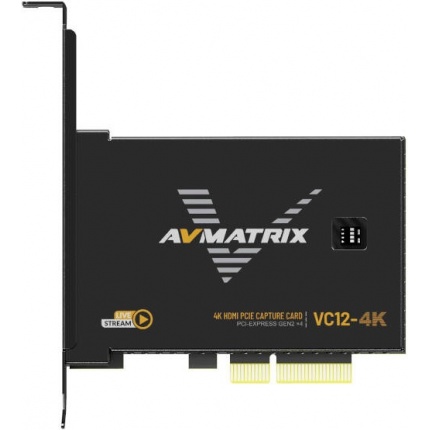

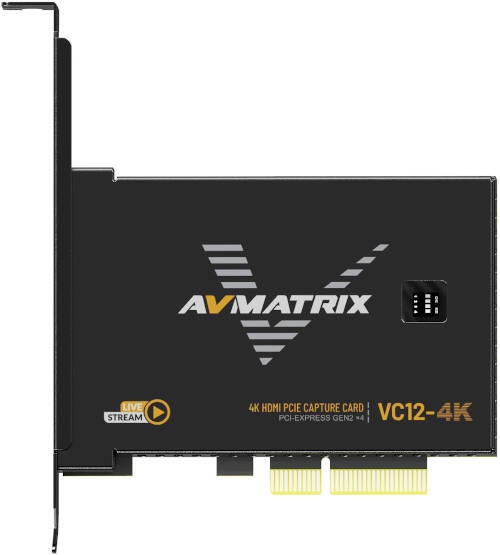

Simultaneously stream and display your gameplay or broadcast using this VC12-4K UHD 4K HDMI PCIe Capture Card from AVMATRIX with its HDMI input and loop output. The PCIe 2.0x4 interface supports up to UHD 4K video at 60 fps. It outputs YUY2 uncompressed video for a high-quality picture.
The image integrity is further preserved thanks to the 1080i hardware deinterlacing and 3D noise reduction algorithm. Compatible with Windows and Linux operating systems, the card is capable of recording to applications like OBS and Teams and livestreaming the captured video to major platforms.
High Bandwidth and Ultralow Latency
The PCIe 2.0 interface has 2.5GB/s transmission bandwidth for faster data transfer speed in gaming and livestream applications, bringing uncompressed and ultralow latency to the streaming experience.24-Hours of Non-Stop Work
The card has a thick gold-plated interface for more stable contact and transmission to work continuously for a long period of time.Compatibility
Windows 7 and Linux 18.04 operating systems and above are supported by the card. Streaming and recording via OBS, Teams, Twitch, and other platforms is also supported for broadcast to major livestreaming platforms like YouTube and Facebook via the network.In the Box:
AVMATRIX VC12-4K UHD 4K HDMI PCIe Capture Card
Host Connection PCIe x4 (PCIe 2.0)
Input
Video Input Connectors 1 x HDMI (HDMI 2.0) Female
Input Video Format
HDMI
UHD 4K 60 fps
1440p 144 fps
1080p 240 fps
Audio Input Connectors None
Input Audio Format LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
Embedded Audio Input HDMI
Output
Video Output Connectors 1 x HDMI (HDMI 2.0) Female (Loop Output)
Output Video Format
HDMI
UHD 4K 25/30/50/60 fps
DCI 4K 25/30/50/60 fps
1440p 60 fps
DCI 2K 60 fps
2560 x 1440 25/30/50/60/120/144 fps
1080p Ultrawide (2560 x 1080) 60 fps
WUXGA (1920 x 1200) 60 fps
1080p 25/30/50/59.94/60/120/144/240 fps
UXGA (1600 x 1200) 60 fps
WXGA+ (1440 x 900) 60 fps
SXGA (1280 x 1024) 60 fps
WXGA (1280 x 800) 60 fps
1280 x 720 (Non-Standard WXGA) 25/30/50/59.94/60/120/144/240 fps
XGA (1024 x 768) 60 fps
SVGA (800 x 600) 60 fps
576p 60 fps
480p 60 fps
Output Audio Format LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
Embedded Audio Output HDMI
Standards
HDR Compatibility Not Specified by Manufacturer
Hardware
OS Compatibility
Windows 7 or Later
Linux 18.4 or Later
*As of August, 2022: Check with manufacturer for the most up-to-date compatibility
Power Consumption Device: 2 W
Environmental
Operating Temperature 32 to 140°F / 0 to 60°C
Storage Temperature -4 to 158°F / -20 to 70°C
Operating Humidity 5 to 90% (Non-Condensing)
General
Dimensions 4.7 x 3.8 x 0.9" / 120.1 x 95.7 x 21.6 mm
Weight 3.5 oz / 100 g
