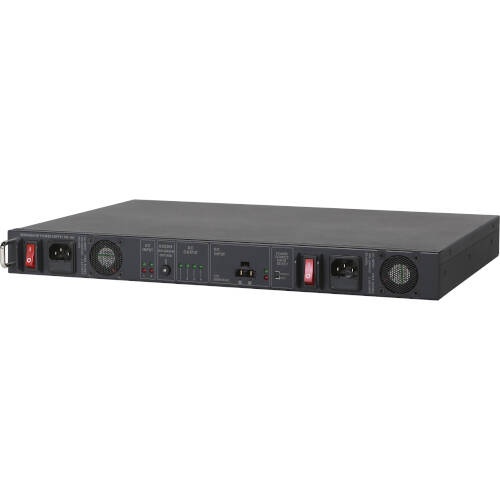

The Datavideo PD-4A Power Distributor comes with a redundant power supply, which is a second power supply that provides power just in case the first one fails. This PD-4A Power Distributor lets you use a single power cord with no additional power supplies for the switcher, processor, and other devices that operate on 12VDC.
This power distributor includes two independent AC inputs as well as a DC input for battery backup, offering mission critical reliability for your switcher, recorder, and monitors with this redundant power supply.
Features:
Supplies energy even if one power source fails
Output : 3 x 5A + 2 x 10A 12V XLR DC Female
Built-in time delay power-on control to initiate each DC output terminal
Ideal for any installed or Mobile Studio
In The Box:
Datavideo PD-4A Power Distributor with Redundant Power Supply

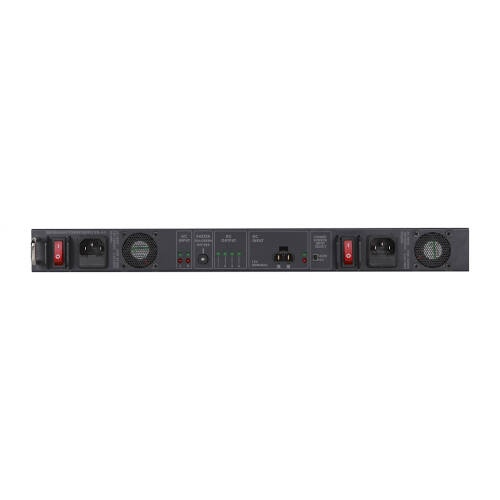

AC Input
100~240 VAC (50Hz or 60Hz)
AC input outlet: Two AC inputs & Two Power SwitchesDC Backup Input
One DC 12V/25A
supports non-regulated DC 12V outputDC Output
5

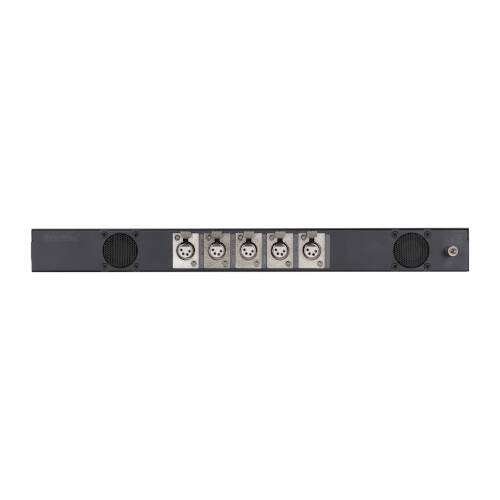

12V±5%, 5A XLR DC Female Jack x3
12V±5%, 10A XLR DC Female Jack x1
(share of two XLR DC Jack)Max. Power Rating
360WDC Overload
DC overload protection, auto-recovery
fuses on each DC output terminalAC Overload
non-recovery fuse on the AC input outletLED Indicator
Green LED: Unit under working condition
Red twinkle: AC Input failed
1~4 XLR DC outputs LED indicatorPower Source Input Select AUTO/AC
Selectable of Auto/AC input switchDimension (LxWxH)
484 x 300 x 49 mmWeight
6.1 kgOperating Temp. Range
0~40 °CPower
AC 100-240 VAC
DC 12V 300W
