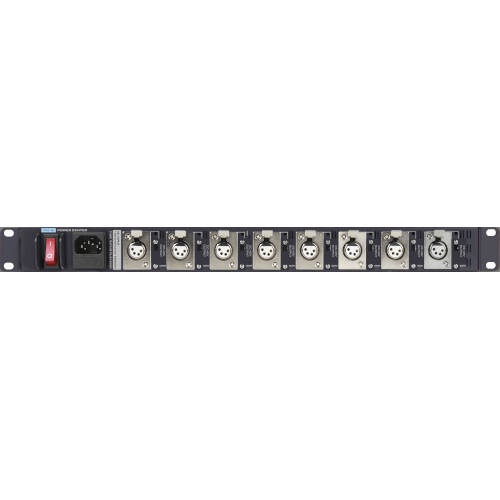

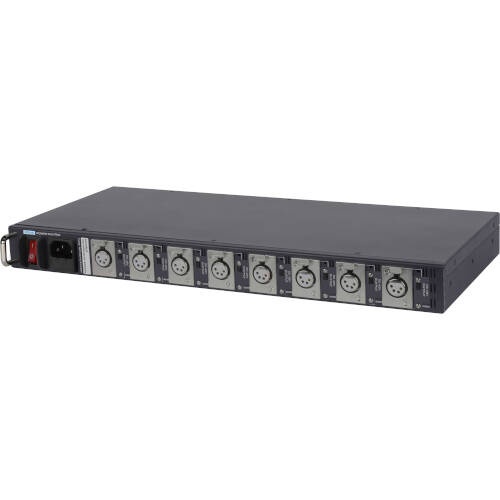

The PD-6 Universal VAC to VDC Camera Power Distributor from Datavideo is a power distribution center designed to fit a 1RU 19" rack mount. The PD-6 supplies steady and sequenced voltage for production kit whether on location or in a studio. This unit features eight outputs which can be configured individually at 48, 24, 14.4, or 12 VDC with a total power consumption of 360 W. You can use the CB-22H, CB-23H, DDC-4012H, and VP-605H accessories for the PD-6 along with this power distributor.
(Please note that non-H versions of these accessories are designed for the PD-3 and will not be compatible with the PD-6.)
Features:
Automatically adjusts to work with 50 or 60Hz power supplies between 100-240 VAC
8 VDC outputs with a combined total power consumption of 360W
Each VDC output can be switched to provide 12, 14.4, 24, or 48V
Each VDC output features multi-colored LED confirming the chosen voltage by color
Unit provides both VDC and VAC overload protectionIn the box
1 x PD-6 Product
1 x AD CordAC Input
100~240 VAC (50Hz or 60Hz)
AC input outlet: One AC input with Power SwitchDC Output
Total 8 Outputs.
30W: 48V(0.6A)
60W: 48V(1.25A)PIN 1:GND
PIN 2:DC OUT
PIN3/4:NC
Max. Power Rating
360WDC Overload
Protection type: Recovery automatically after fault condition is removedAC Overload
non-recovery fuse on the AC input outletLED Indicator
LED Color Indicator: Red:48VOperating Temp. Range
0~40 °CPower
AC 100-240 VAC
