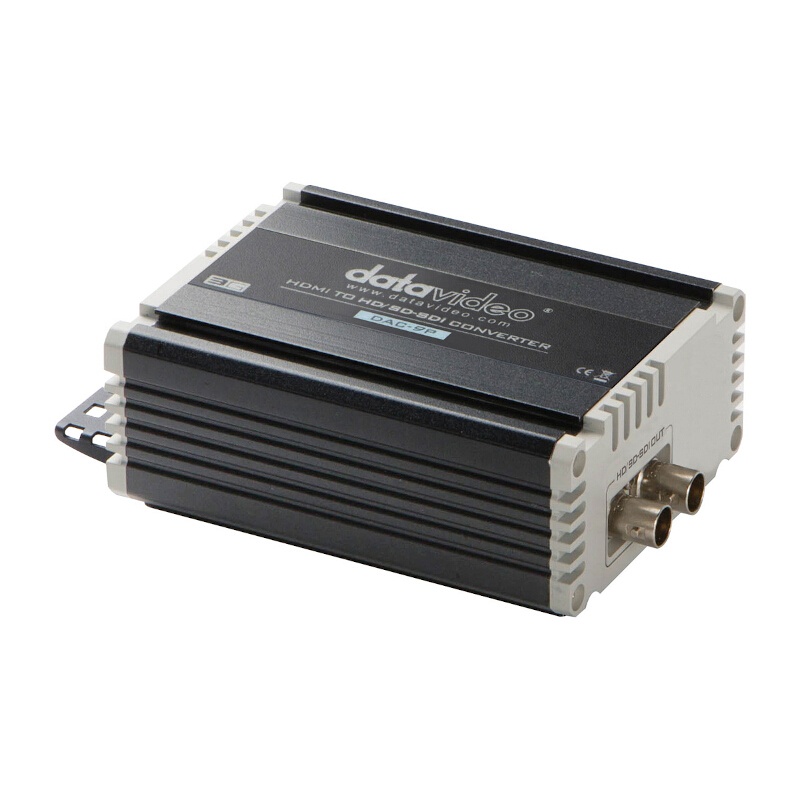

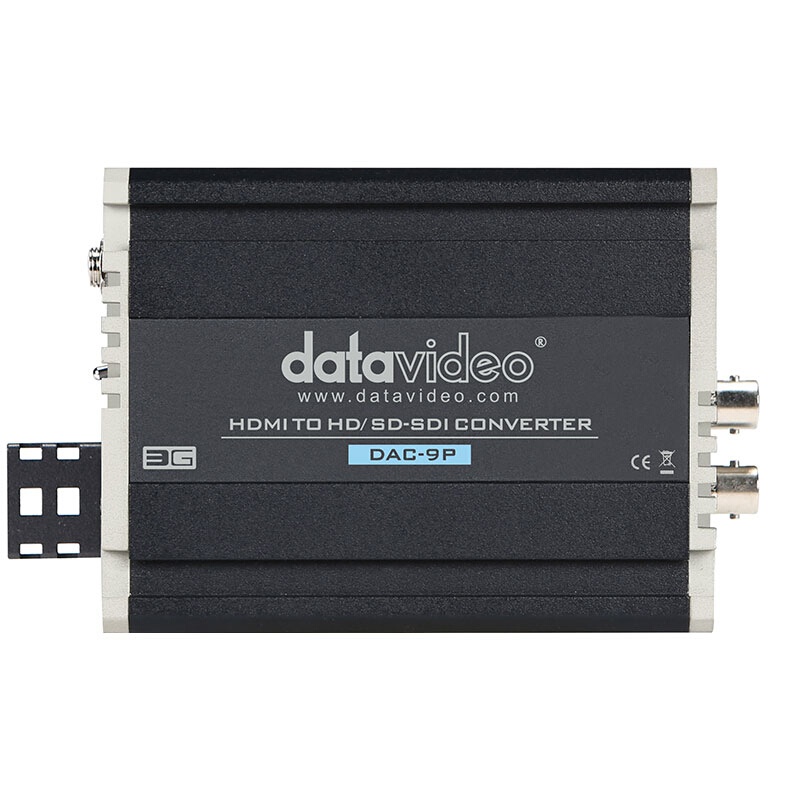

Datavideo's DAC-9P HDMI to HD/SD-SDI 1080p/60 Converter converts an HDMI video signal along with embedded audio for output on two HD/SD-SDI outputs, making possible for an HDMI camera signal to be monitored on professional SDI displays up to 300 ft away. The converter auto-senses the image quality of the HDMI input and outputs it according to this quality as either HD-SDI or SD-SDI. The converter accepts both NTSC and PAL, automatically detects whether the input is one or the other, and supports resolutions up to 1080p/60 NTSC or 1080p/50 PAL.
(Please note: DAC-9P is not compatible with the HDMI output from the Sony HDR-FX7 camera.)
Features:
Converts video with embedded audio
Supports up to 1080p/60 NTSC or 1080p/50 PAL
Auto-sensing HDMI 1.4 input and two HD/SD-SDI outputs
Outputs as either HD-SDI or SD-SDI based on the image quality of the inputIn The Box:
1 x DAC-9P
1 x AD Switch DC 12VConversion
HDMI to 3G/HD/SD-SDIVideo Inputs

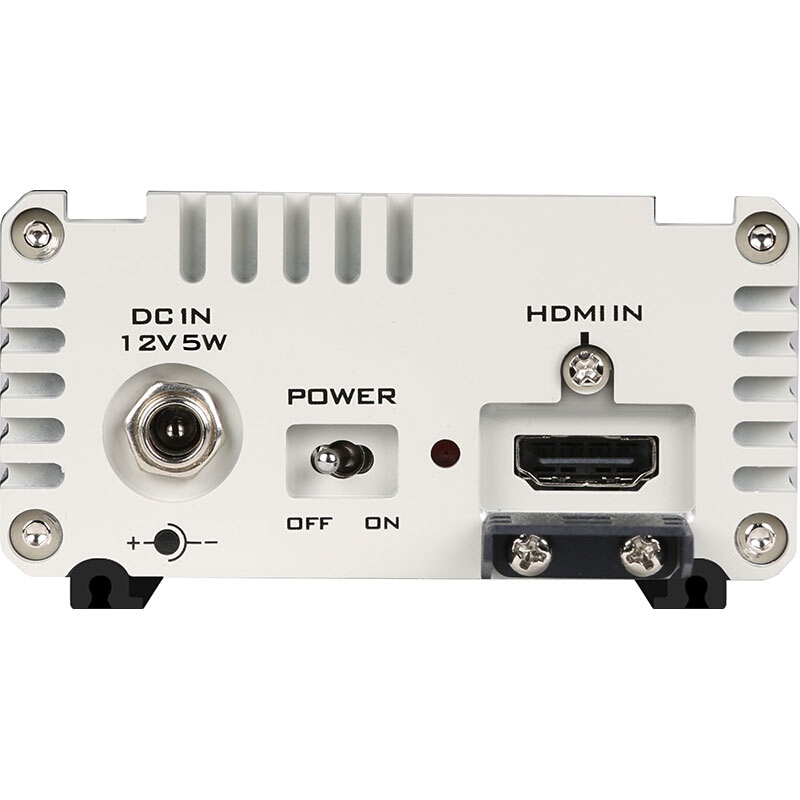

1x HDMIVideo Outputs

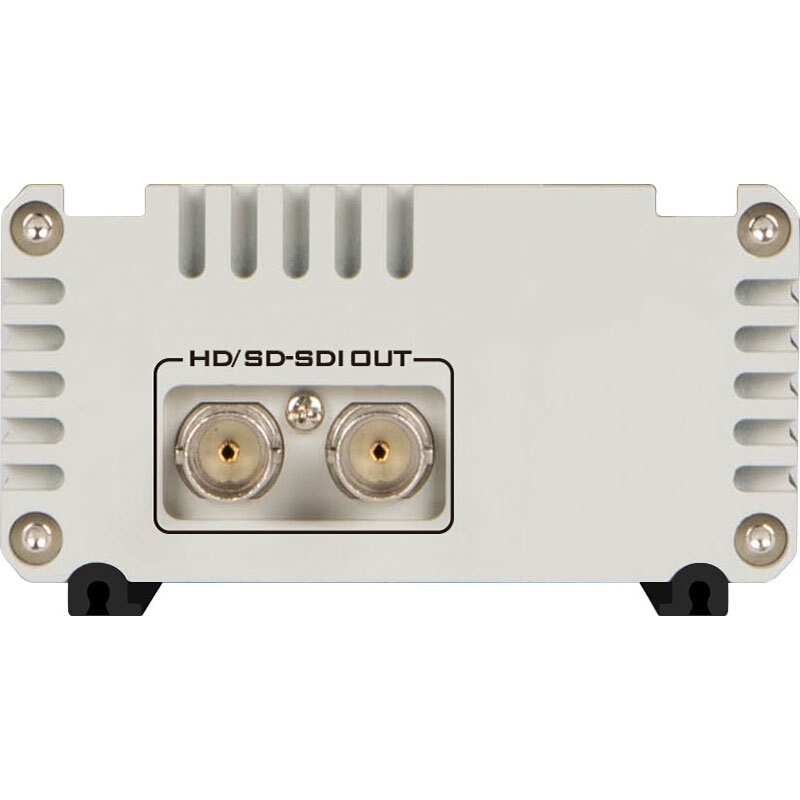

2x 3G/HD/SD-SDI
with embedded AudioAudio Inputs
2x HDMI Audio embeddedAudio Outputs
2x SDI Audio embeddedSupported Video Input Formats
1080p (23.98/24/25/29.97/30/50/59.94/60Hz),
1080i (50/59.94/60Hz),
720p (50/59.94/60Hz),
576i (PAL), 480i (NTSC)Output Resolutions
Automatically matches the SD, HD and
3G HDMI video inputSDI Cable Drive
YesDimension (LxWxH)
112 x 85 x 45 mmWeight
0.3 kgOperating Temp. Range
0~40 °CPower
DC 12V, 5W
