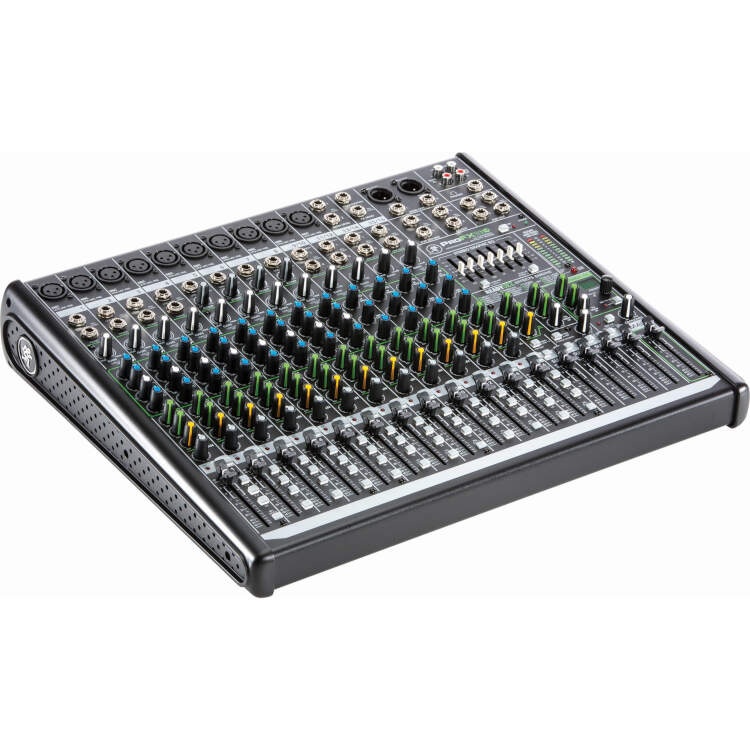

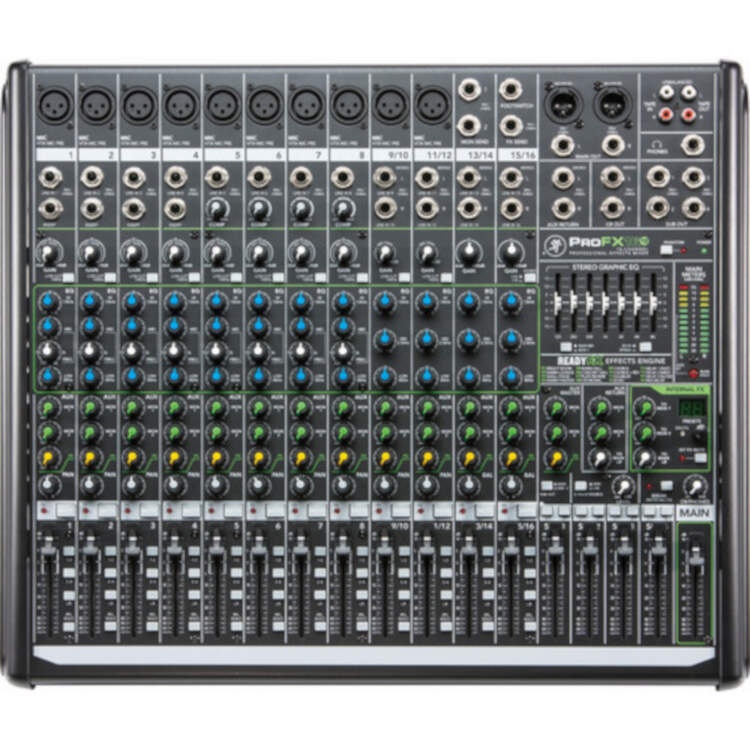

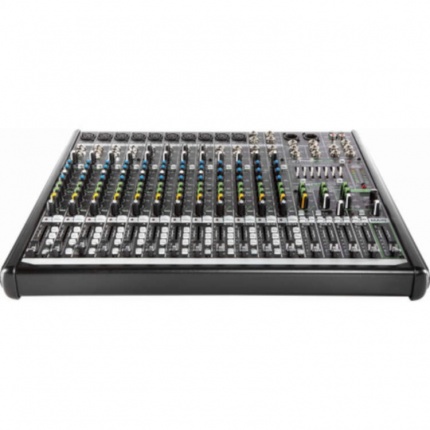

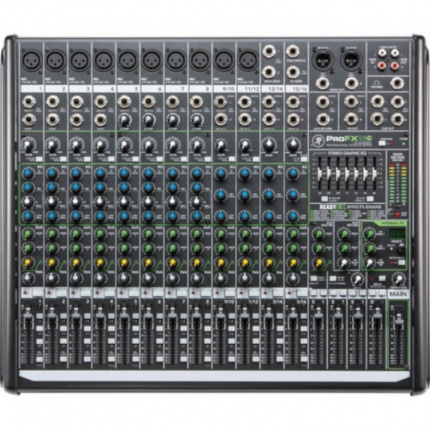

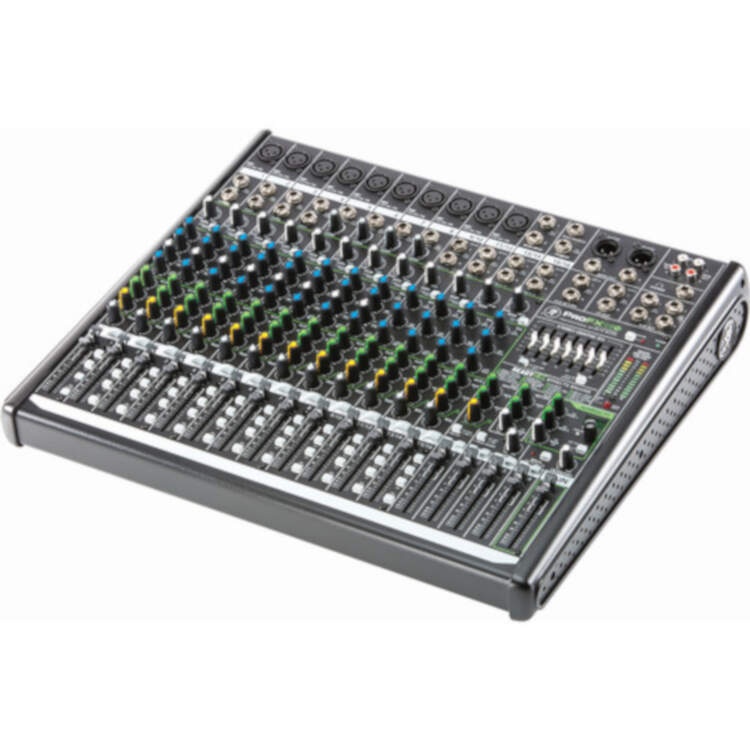

The ProFX16v2 16-channel mixing console from Mackie features a built-in effects engine, and is ideal for a plethora of live sound reinforcement applications ranging from live bands and DJs to lecturers and presenters. With 10 XLR mic inputs with low-noise Vita microphone preamps, per channel 3-band EQ, 2 aux sends, and an FX out for feeding external processors, the ProFX16v2 offers professional features to suit a wide variety of configurations.
In addition to the mic inputs, the ProFX16v2 includes 16 line inputs for connecting keyboards, samplers, and other gear. There is also an RCA tape input and output for connecting portable music players similar devices. In addition, the mixer has rugged 60mm faders for all input channels, return and main/monitor masters.
The ProFX16v2's effects engine offers 16 different effects, including reverbs, delays, and choruses. It also features a 7-band graphic EQ that can be used for tuning mains or monitors, and a built-in USB interface that can be used to record the show or provide music playback via Mac or Windows computer.
Features at a Glance
10 low-noise Vita mic preamps
ReadyFX effects engine with 16 effects like reverbs, delays, and choruses
Single-knob channel compression for smooth, even dynamic control (ch. 5-8)
7-band graphic EQ for tuning mains or monitors
Built-in USB interface to record the show or provide music playback
4 flexible subgroups for professional mix management
2 aux outputs for monitor mixes, fill speakers, and more
3-band EQ with sweepable mids on mono channels
16 high-headroom line level inputs
Individual channel mutes and overload indication
100 Hz low-cut filters per channel (18 dB/octave)
Channel inserts for connecting outboard processing (ch. 1-4)
60mm faders for input channels, subgroups and main masters
48V phantom power for connecting condenser mics
FX mute with remote control via footswitch
Break switch mutes all channels for music playback between sets
Control room / headphone outs with level control
Balanced XLR and balanced/unbalanced 1/4" main outputs
Built-in USB recording interface with simple setup via Mac or Windows
Choose to record subgroups 1/2 or main L/R mix
Separate USB input level control to mains
USB routable to full-featured channel strip
For live recording and home studios
Stream playback music for live or studio applications
Includes user-friendly Tracktion recording software
Solid steel chassis protects your investment

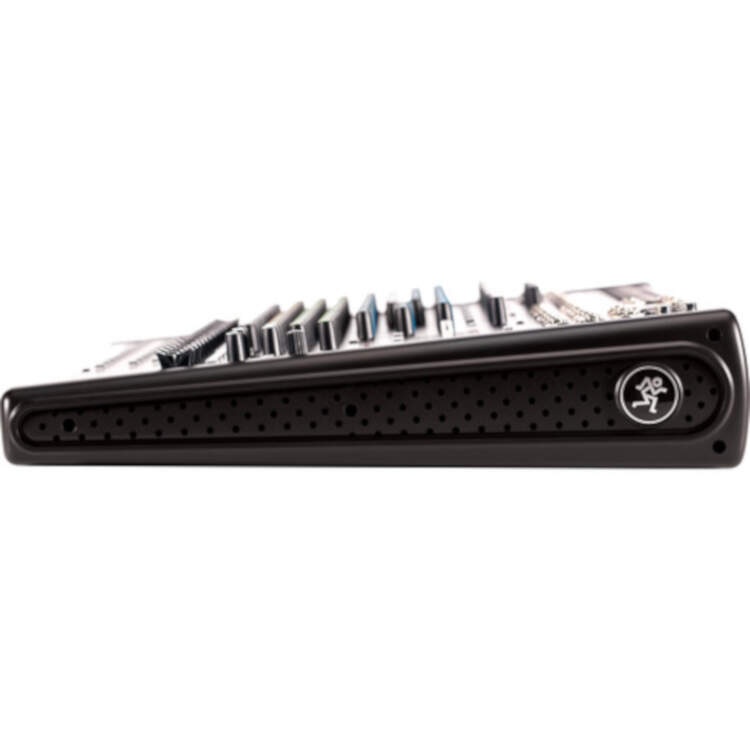

Tough ABS side protection
Robust internal multi-voltage power supplyMackie PROFX16V3 Specifications:
Equivalent Input Noise 150 ohm source impedance, 20 Hz to 20 kHz:
Mic in to insert send out, max gain -128 dBu
Residual Output Noise All outputs, master levels off, all channel levels off: -95 dBu
All outputs, master levels unity, one channel level unity: -85 dBu
Frequency Response Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 40 kHz
THD+N 22 Hz to 80 kHz bandwidth: Mic in to Main out (+4 dBu output): 0.01%
Attenuation and Crosstalk Adjacent Inputs @ 1 kHz: -90 dB
Inputs to Outputs @ 1 kHz: -80 dB
Fader Off @ 1 kHz: -75 dB
Mute Switch / Break Switch Mute @ 1 kHz: -100 dB
Common Mode Rejection Ratio Mic In to Main Out, max gain, 1 kHz: 70 dB
Maximum Level All inputs: +22 dB
Main Out XLR: +28 dBu
All other outputs: +22 dBu
Impedance Mic In 3.3 kOhms
Channel Insert Return 10 kOhms
All other inputs ≥ 20 kOhms
Tape output 1 kOhms
Phones output 25 ohms
All other outputs 120 ohms unbalanced, 240 ohms balanced
Equalization Mono Channels:
Low ±15 dB @ 80 Hz
Mid ±15 dB @ 100 Hz - 8 kHz
High ±15 dB @ 12 kHz
Low Cut Filter 18 dB/octave @ 100 HzStereo Channels
Low ±15 dB @ 80 Hz
Mid ±15 dB @ 2.5 kHz
High ±15 dB @ 12 kHz
Maximum Voltage Gain Mic Input Channel to:
Insert Output: 50 dB
Tape Output: 60 dB
USB Output: 60 dB
1/4" Main Output: 70 dB
XLR Main Output: 76 dB
Monitor Send: 81 dB
FX Send: 90 dBMono Line Input Channel to:
Insert Output: 30 dB
Tape Output: 40 dB
USB Output: 40 dB
XLR Main Output: 56 dB
Monitor Send: 61 dB
FX Send: 70 dBStereo Line Input Channel to:
Tape Output: 30 dB
USB Output: 30 dBXLR Main Output: 46 dB
Monitor Send: 51 dB
FX Send: 55 dBTape Input to:
XLR Main Output: 36 dBUSB Input to:
XLR Main Output: 36 dBStereo Return to:
Mon Output: 30 dB
XLR Main Output: 26 dB
Digital Effects I/O: mono input / stereo output
Number of Presets: 16
Meters Main L/R Mix:
Two columns of 12 segments each: OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30Channel OL LED:
Measured post-EQ, pre-fader (-3 dB before channel clipping): 18 dBu
Graphic EQ Frequency Centers [7-Band]: 125, 250, 500, 1k, 2k, 4k, 8k
Gain: ±15 dB
Assignable to Main or Monitor, bypassable
USB USB Recording to Computer (Mac & Win)
Phantom Power 48 VDC to all mic channels simultaneously
AC Power Requirements Power Consumption: 40 watts
Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz
Class II Detachable Line Cord: Yes
Operating Temperature 32 - 104˚F (0 - 40˚C)
Dimensions3.8 x 18.7 x 16.0" (97 x 475 x 407 mm)
Weight13.0 lb (5.9 kg)
