Mackie ProFX12v3 12-Channel Sound Reinforcement Mixer with Built-In FX | Buy Mackie products from avlfx.com at the best price. Warranty assurance through an in-house service center.
GST will be absorbed by us at check out.

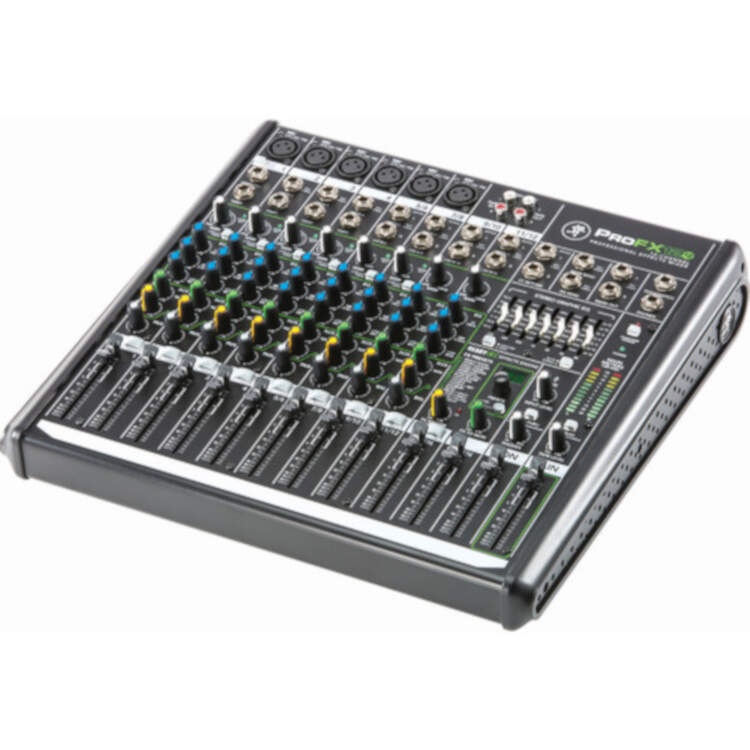

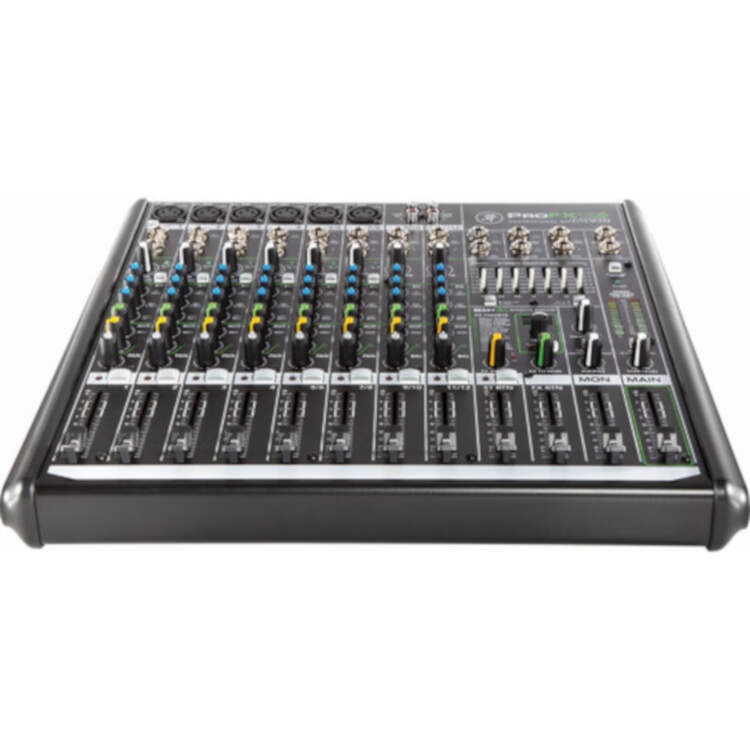

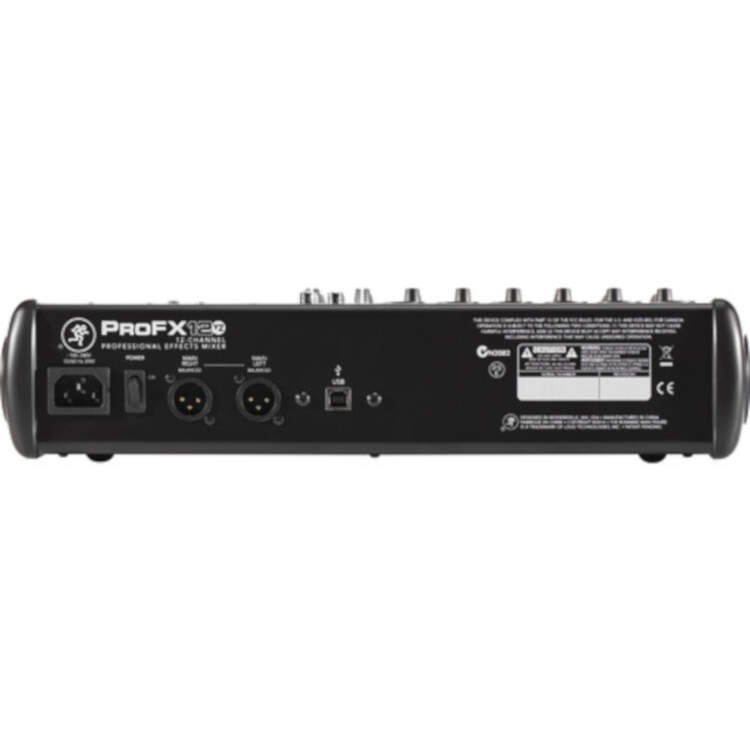

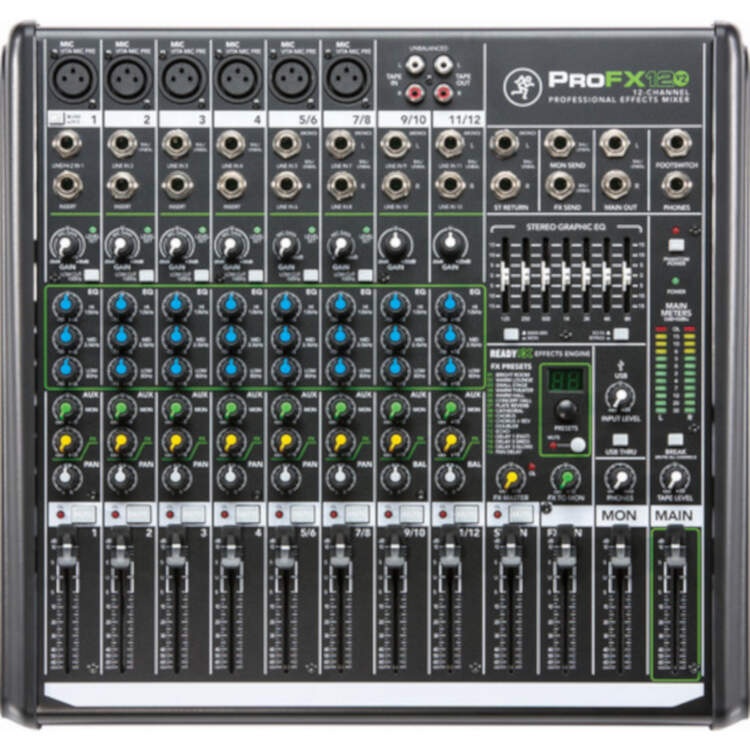

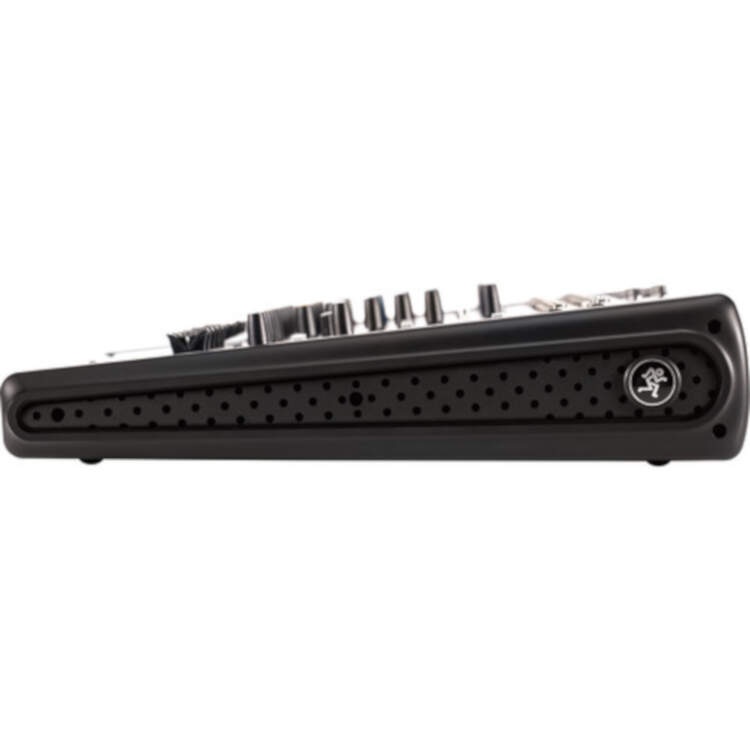

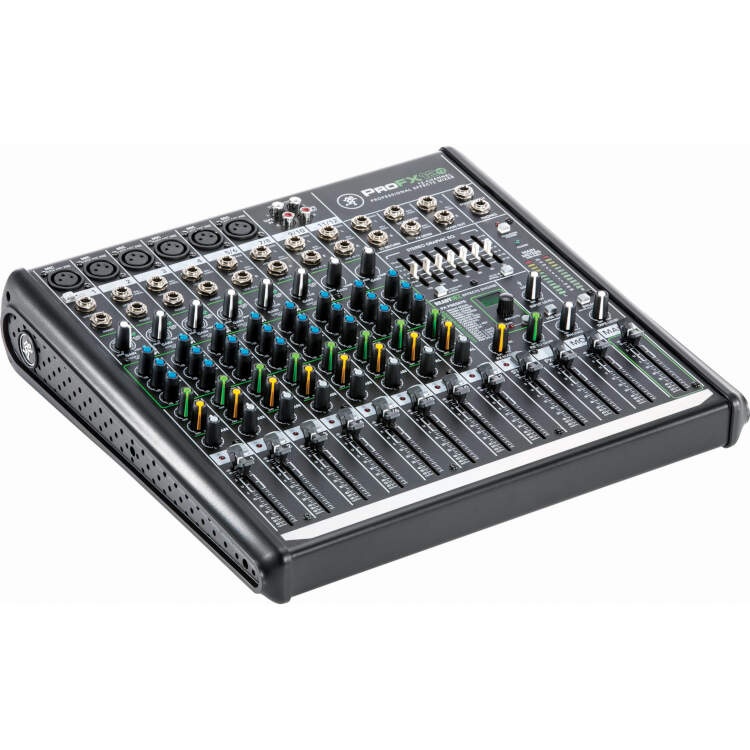

The ProFX12v2 12-channel mixing console from Mackie features a built-in effects engine, and is ideal for a plethora of live sound reinforcement applications ranging from live bands and DJs to lecturers and presenters. With 6 XLR mic inputs with low-noise Vita microphone preamps, per channel 3-band EQ, 1 aux send, and an FX out for feeding external processors, the ProFX12v2 offers professional features to suit a wide variety of configurations.
In addition to the mic inputs, the ProFX12v2 includes 12 line inputs for connecting keyboards, samplers, and other gear. There is also an RCA tape input and output for connecting portable music players similar devices. In addition, the mixer has rugged 60mm faders for all input channels, return and main/monitor masters.
The ProFX12v2's effects engine offers 16 different effects, including reverbs, delays, and choruses. It also features a 7-band graphic EQ that can be used for tuning mains or monitors, and a built-in USB interface that can be used to record the show or provide music playback via Mac or Windows computer.
Features at a Glance
6 low-noise Vita mic preamps
ReadyFX effects engine with 16 effects like reverbs, delays, and choruses
7-band graphic EQ for tuning mains or monitors
Built-in USB interface to record the show or provide music playback
Aux output ideal for driving a monitor mix
4 stereo channels plus extra stereo return for external effects or stereo playback device
60mm faders for input channels, return, and main/monitor masters
3-band EQ (80 Hz, 2.5 kHz and 12 kHz) on all channels
Directly connect guitar, bass, and other instruments via Hi-Z input
Insert, 100 Hz low-cut filter and 48V phantom power on all mic channels
Stereo RCA tape I/O with input level control
Headphone output with separate level control
Balanced XLR and balanced/unbalanced 1/4" main outputs
FX mute with remote control via footswitch
Break switch mutes all channels for music playback between sets
Built-in USB recording interface with simple setup via Mac or Windows
For live recording and home studios
Stream playback music for live or studio applications
Includes user-friendly Tracktion recording software
Solid steel chassis protects your investment
Tough ABS side protection
Robust internal multi-voltage power supplyMackie PROFX12V3 Specifications:
Equivalent Input Noise 150 ohm source impedance, 20 Hz to 20 kHz:
Mic in to insert send out, max gain -125 dBu
Residual Output Noise All outputs, master levels off, all channel levels off: -95 dBu
All outputs, master levels unity, one channel level unity: -80 dBu
Frequency Response Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 30 kHz
THD+N 22 Hz to 80 kHz bandwidth: Mic in to Main out (+4 dBu output): 0.03%
Attenuation and Crosstalk Adjacent Inputs @ 1 kHz: -90 dB
Inputs to Outputs @ 1 kHz: -80 dB
Fader Off @ 1 kHz: -75 dB
Mute Switch / Break Switch Mute @ 1 kHz: -90 dB
Common Mode Rejection Ratio Mic In to Main Out, max gain, 1 kHz: 70 dB
Maximum Level All inputs: +22 dB
Main Out XLR: +28 dBu
All other outputs: +22 dBu
Impedance Mic In 3.8 kOhms
Channel Insert Return 10 kOhms
All other inputs ≥ 20 kOhms
Tape output 1 kOhms
Phones output 25 ohms
All other outputs 120 ohms unbalanced, 240 ohms balanced
Equalization Low ±15 dB @ 80 Hz
Mid ±15 dB @ 2.5 kHz
High ±15 dB @ 12 kHz
Low Cut Filter 18 dB/octave @ 100 Hz
Maximum Voltage Gain Mic Input Channel to:
Insert Output: 50 dB
Tape Output: 60 dB
USB Output: 50 dB
1/4" Main Output: 70 dB
XLR Main Output: 76 dB
Monitor Send: 76 dB
FX Send: 90 dBMono Line Input Channel to:
Insert Output: 30 dB
Tape Output: 40 dB
USB Output: 30 dB
XLR Main Output: 56 dB
Monitor Send: 56 dB
FX Send: 70 dBStereo Line Input Channel to:
Tape Output: 30 dB
USB Output: 30 dBXLR Main Output: 46 dB
Monitor Send: 46 dB
FX Send: 60 dBTape Input to:
XLR Main Output: 36 dBUSB Input to:
XLR Main Output: 36 dBStereo Return to:
XLR Main Output: 26 dB
Digital Effects I/O: mono input / stereo output
Number of Presets: 16
Meters Main L/R Mix:
Two columns of 12 segments each: OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30Channel OL LED:
Measured post-EQ, pre-fader (-3 dB before channel clipping): 18 dBu
Graphic EQ Frequency Centers [7-Band]: 125, 250, 500, 1k, 2k, 4k, 8k
Gain: ±15 dB
Assignable to Main or Monitor, bypassable
USB USB Recording to Computer (Mac & Win)
Phantom Power 48 VDC to all mic channels simultaneously
AC Power Requirements Power Consumption: 30 watts
Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz
Class II Detachable Line Cord: Yes
Operating Temperature 32 - 104˚F (0 - 40˚C)
Dimensions3.6 x 14.6 x 14.1" (91 x 370 x 358 mm)
Weight9.0 lb (4.1 kg)
