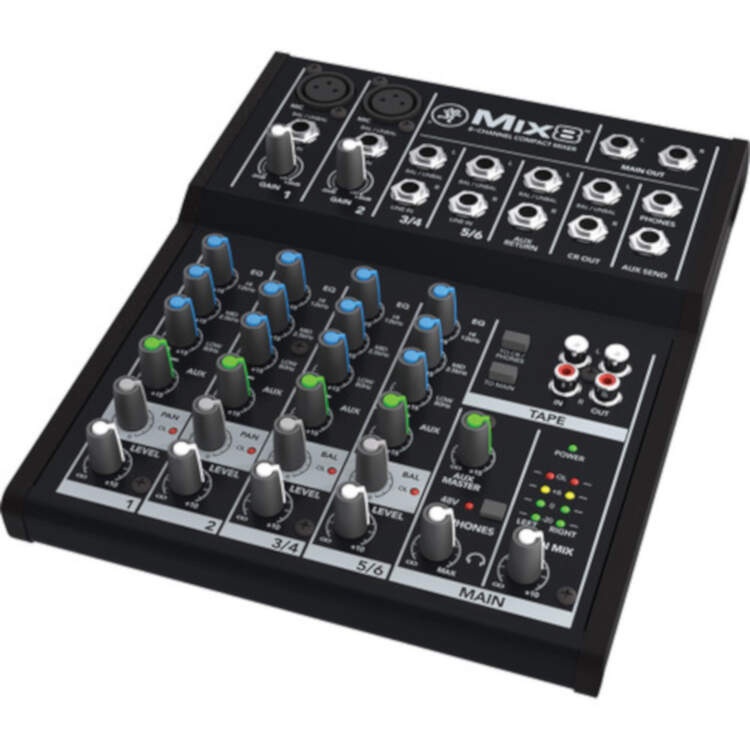

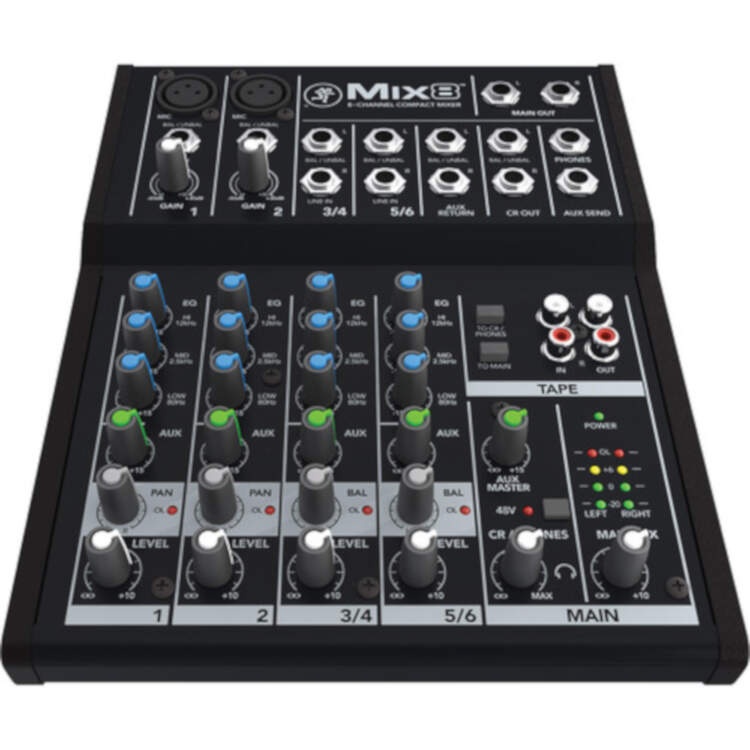

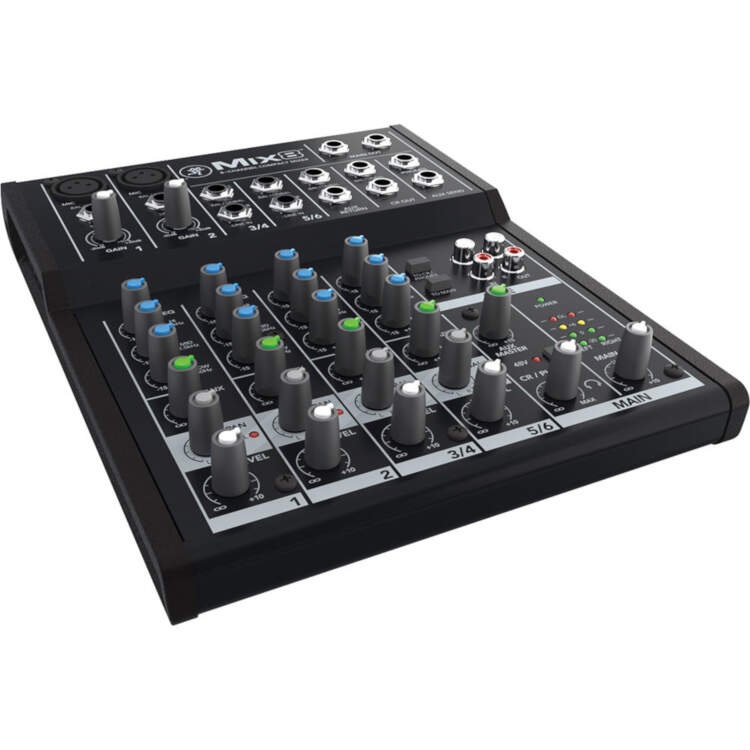

The Mackie Mix8 is an 8-channel compact mixer that features high quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features two mic/line inputs with 48V phantom power, two stereo 1/4" line inputs, and stereo 1/4" aux send and return. It is capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.

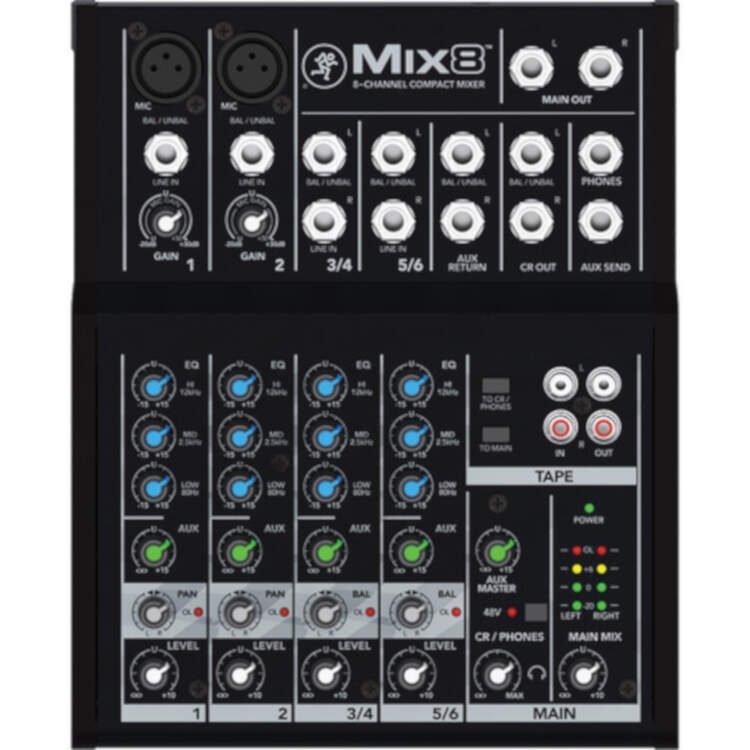

Each of the two mic/line inputs is equipped with XLR and 1/4" connectors, a dedicated 3-band EQ, aux send, pan, level control and an LED overload indicator. The two stereo 1/4" line inputs each feature an aux send, 3-band EQ, level control, balance control and also have an LED overload indicator.
Dedicated stereo RCA inputs/outputs for playback or recording
Headphone and stereo control room outputs
Rugged, reliable design built to last
Compact and portableMackie MIX8 Specifications:
Noise (20 Hz – 20 kHz bandwidth, 150 ohm source impedance, EIN)
All outputs, master levels and channel levels off –100 dBuAll outputs, master levels unity, all channel levels off –90 dBu
All outputs, master levels unity, 1 channel level unity –85 dBu
THD+N (20 Hz – 30 kHz bandwidth)
Mic input to main output 0.25% @ +4 dBu outputAttenuation and Crosstalk (20 Hz – 20 kHz bandwidth)
Inputs to outputs @1 kHz –85 dBMain mix off @1 kHz –75 dB
Frequency Response Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz
Equivalent Input Noise -125 dBu, (mic in to insert send out, max gain)
Common Mode Rejection Ratio 1 kHz better than –70 dB, (mic in to insert send out, max gain)
Impedance Mic In: 3.8 kohms
All Other Inputs: 10 kohms or greaterTape Out : 1 kohms
Phones: 22 ohms
All Other Outputs: 120 ohms unbalanced, 240 ohms balanced
Maximum Level Mic Inputs (XLR): +19 dBu
Aux Return In: +16 dBuAll Other Inputs: +21 dBu
All Outputs: +21 dBu
Equalization High Shelving: ±15 dB @ 12 kHz
Mid Peaking: ±15 dB @ 2.5 kHzLow Shelving: ±15 dB @ 80 Hz
Low Cut Filter: 18 dB/octave, –3 dB @ 75 Hz

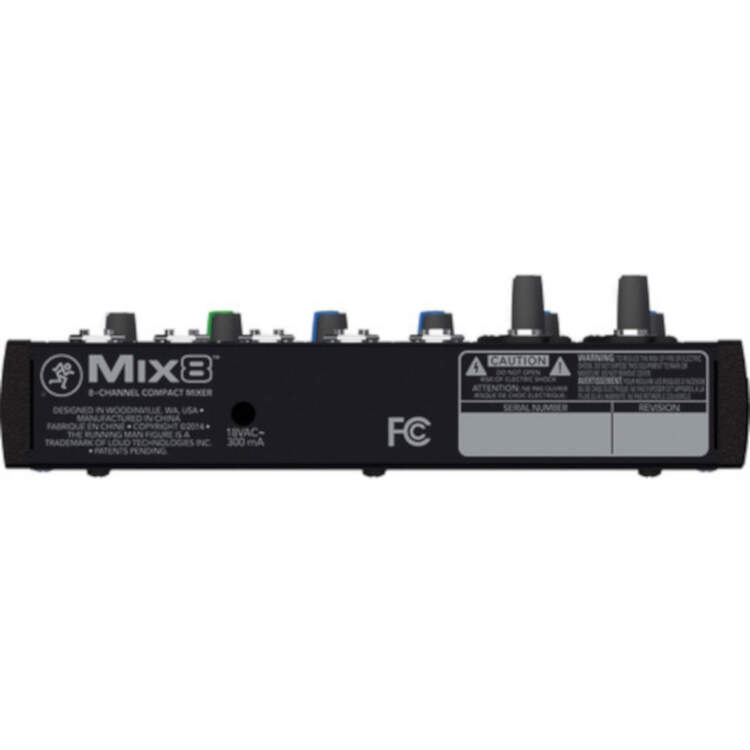

Power Requirements Power Connection: 2-pin DC connector [US], 3-pin DC connector [EU]
Input: 120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU]Output: 18 VAC, 600 mA
Dimensions
2.1 x 7.8 x 9.6" (53 x 198 x 244 mm)
Weight
2.5 lb (1.1 kg)
