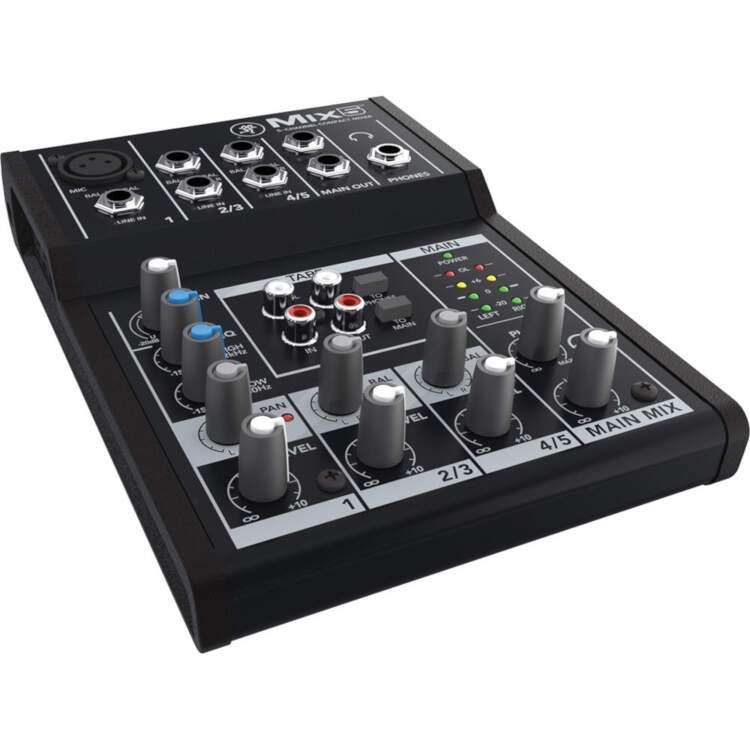

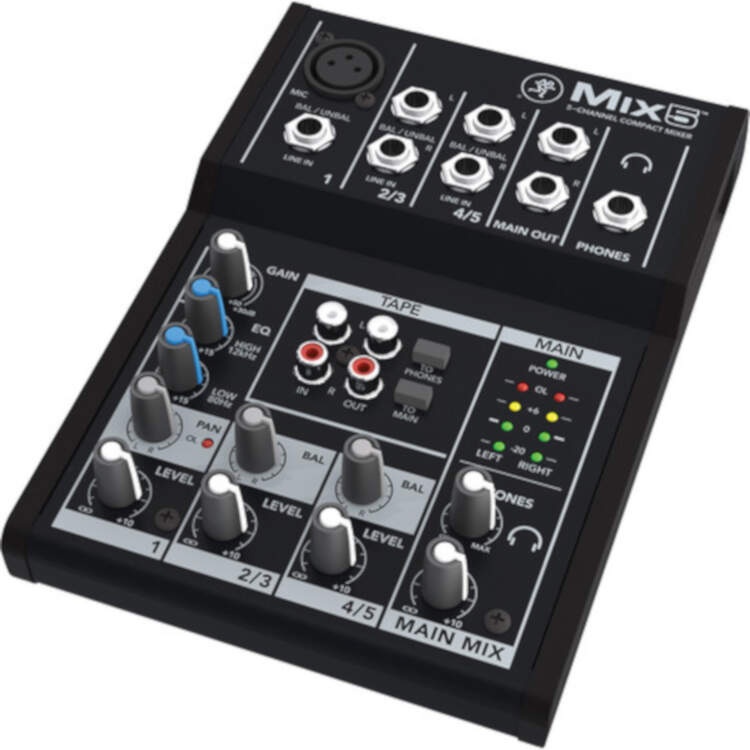

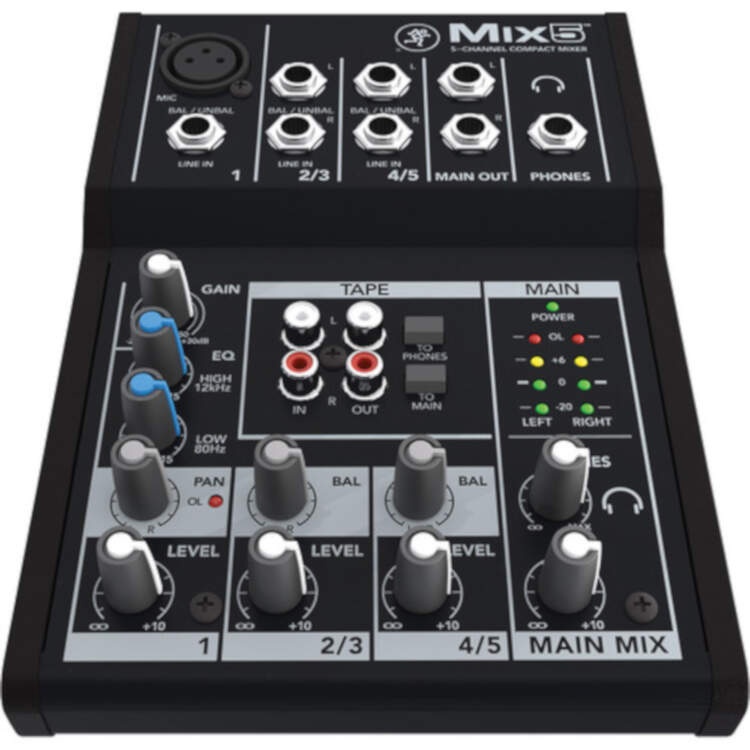

The Mackie Mix5 is a 5-channel compact mixer that features high-quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features one mic/line input, two stereo 1/4" line inputs, and is capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.

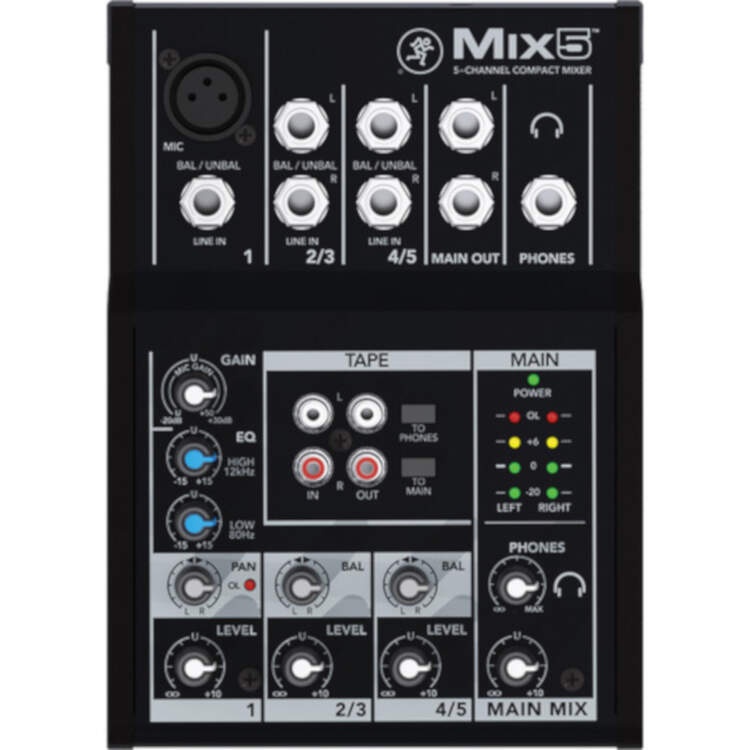

The mic/line input is equipped with XLR and 1/4" connectors, phantom power, a 2-band EQ, pan, level control and an LED overload indicator. Each of the two stereo 1/4" line inputs features a 3-band EQ, balance control, level control, and an LED overload indicator.
Dedicated stereo RCA inputs/outputs for playback or recording
Headphone and stereo control room outputs
Rugged, reliable design built to last
Compact and portableMackie MIX5 Specifications:
Noise (20 Hz – 20 kHz bandwidth, , 150 ohms source impedance, EIN)
All outputs, master levels and channel levels off –100 dBuAll outputs, master levels unity, all channel levels off –90 dBu
All outputs, master levels unity, 1 channel level unity –85 dBu
THD+N (20 Hz – 30 kHz bandwidth)
Mic input to main output 0.25% @ +4 dBu outputAttenuation and Crosstalk (20 Hz – 20 kHz bandwidth)
Inputs to outputs @1 kHz (-85 dB)Main mix off @1 kHz (-75 dB)
Frequency Response Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz
Equivalent Input Noise -125 dBu, (mic in to insert send out, max gain)
Common Mode Rejection Ratio 1 kHz better than –70 dB, (mic in to insert send out, max gain)
Impedance Mic In: 2 kOhms
All Other Inputs: 10 kOhms or greaterTape Out : 1 kOhms
Phones: 22 ohms
All Other Outputs: 120 ohms unbalanced, 240 ohms balanced
Maximum Level Mic Inputs (XLR): +19 dBu
Aux Return In: +16 dBu [Mix 8]All Other Inputs: +21 dBu
All Outputs: +21 dBu
Equalization High Shelving: ±15 dB @ 12 kHz

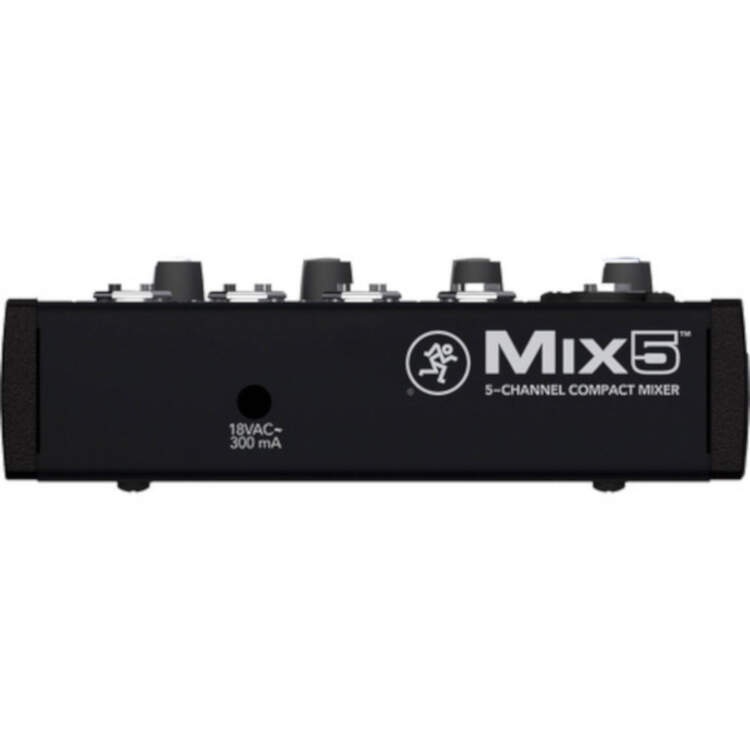

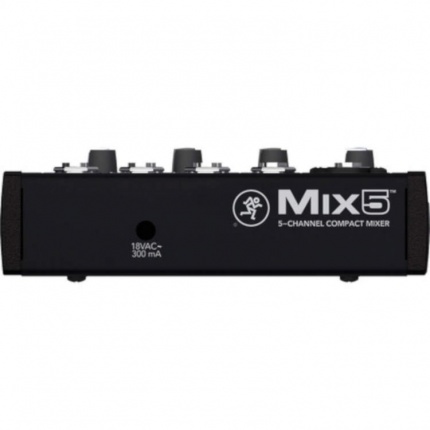

Low Shelving: ±15 dB @ 80 HzPower Requirements Power Connection: 2-pin DC connector [US], 3-pin DC connector [EU]
Input: 120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU]Output: 18 VAC, 600 mA
Dimensions
1.7 x 5.5 x 7.7" (43 x 140 x 196 mm)
Weight
1.4 lb (0.6 kg)
