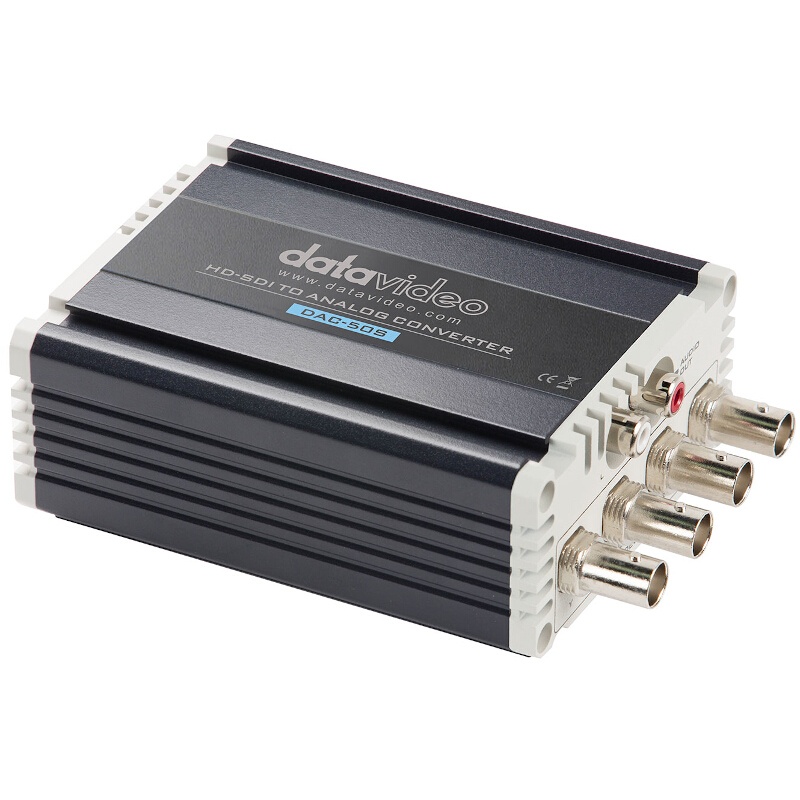

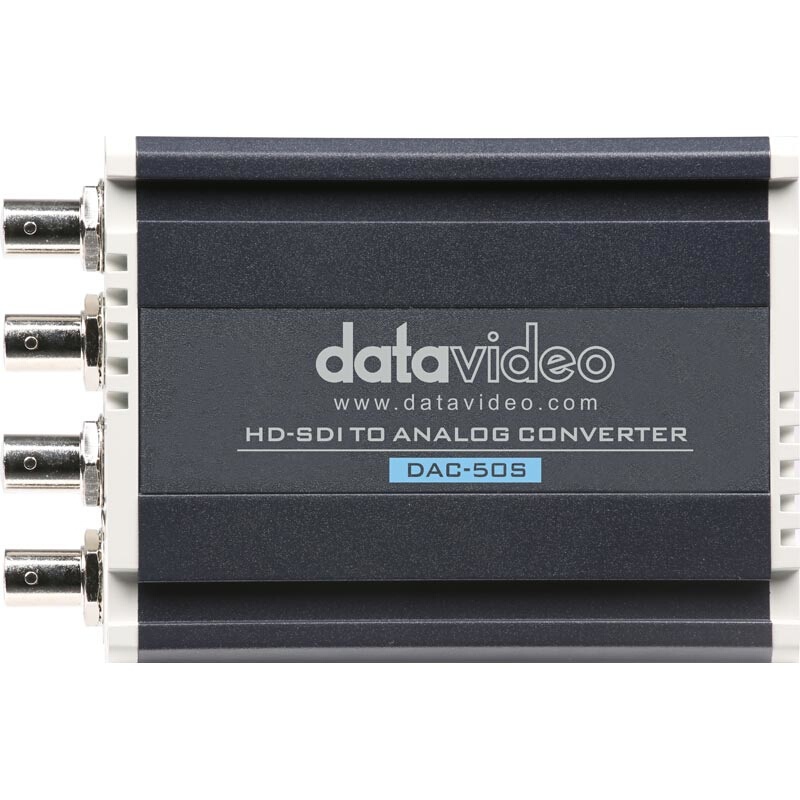

The DAC-50S from Datavideo is an HD/SD-SDI to Analog converter with the ability to scale both up and down. The converter has low power consumption and low heat dissipation. It supports a wide range of 3G video formats, including 1080p 50/59.94/60Hz (DAC-8P/9P/60/70), and supports YUV and RGB color space (DAC-8P/9P/60/70). The DAC-50 is housed in a rugged metal frame, and can be rack-mounted using the optional RMK-2 2RU rack mount kit. This unit provides an SDI cable drive and features reclocking and video equalization.
Features:
Converts 3G/HD-SDI input to analogue video and 2 unbalance analogue audio channels
Two available output combinations:

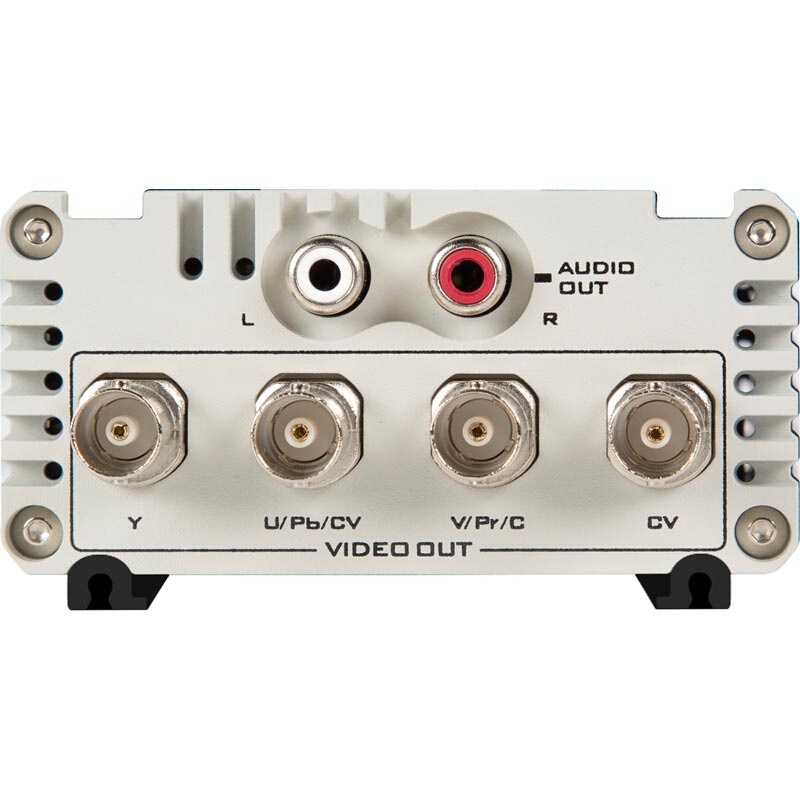

1 x YUV output & 1 x CV output – 1 x S-Video (Y/C) output & 2 x CV outputs
Supports PAL/ NTSC output

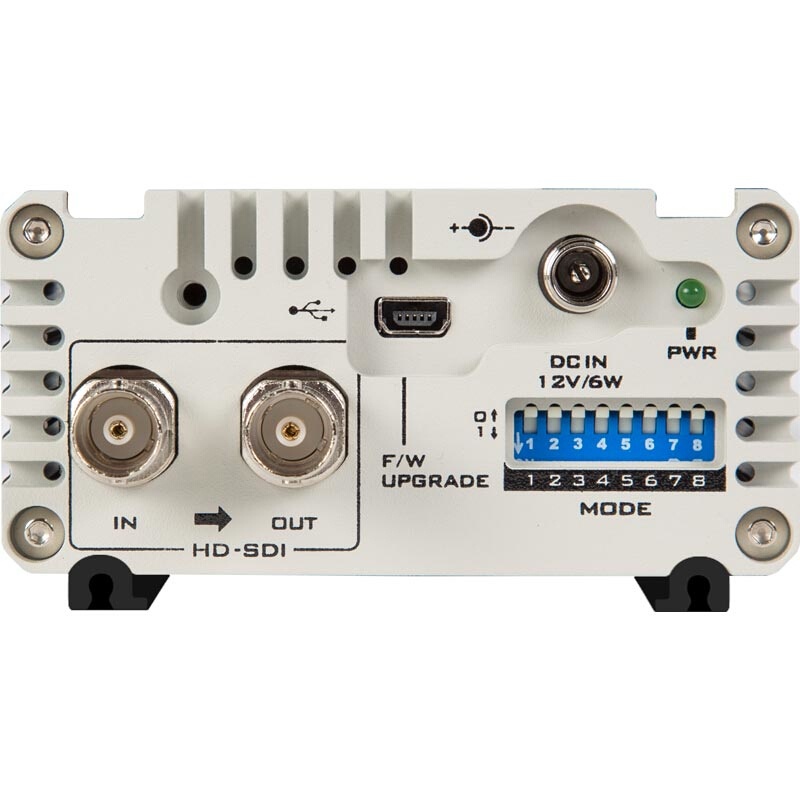

Define de-embedded audio channels sent to analogue audio outputs via a DIP switch
Solid aluminum housing
Ideal for use with RMK-2 (Rackmount kit) and also MB-4 Battery holderIn The Box:
1 x DAC-50S
1 x AD Switch DC 12VConversion
3G/HD/SD-SDI to Analog
Down ConverterVideo Inputs
1x 3G/HD/SD-SDILoop Through
YesVideo Outputs
YUV + Composite or Y/C + 2x CompositeAudio Inputs
1x SDI Audio embeddedAudio Outputs
2x RCA (Stereo Pair)Supported Video Input Formats
1080p (50/59.94Hz) ,
1080i (50/59.94Hz),
720p (50/59.94Hz), 576i, 480iOutput Resolutions
576i, 480iEqualizer
YesReclock
YesDimension (LxWxH)
112 x 85 x 45 mmWeight
0.5 kgOperating Temp. Range
0~40 °CPower
DC 12V, 6W
