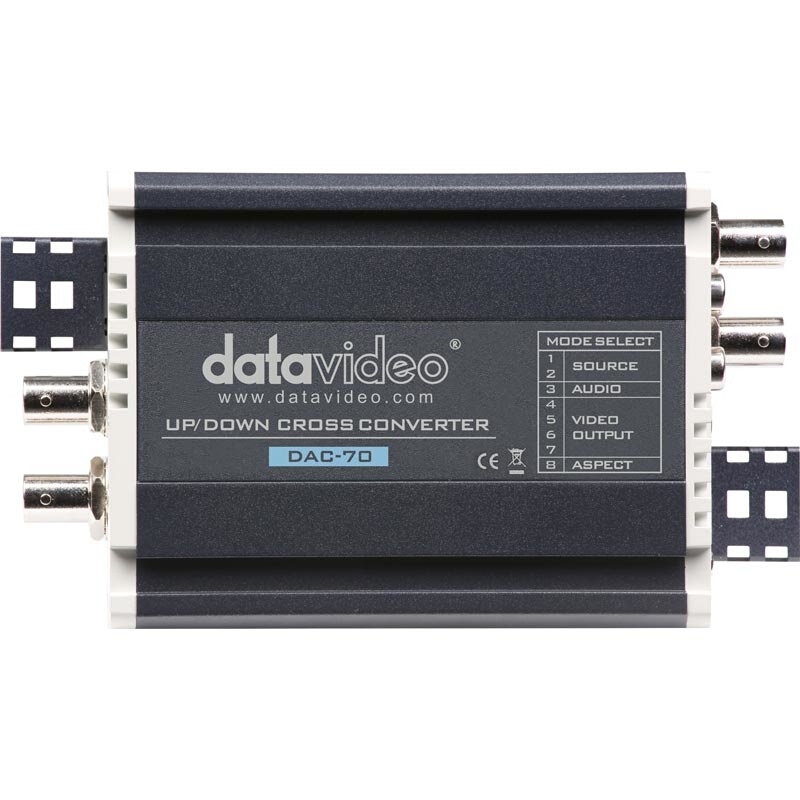

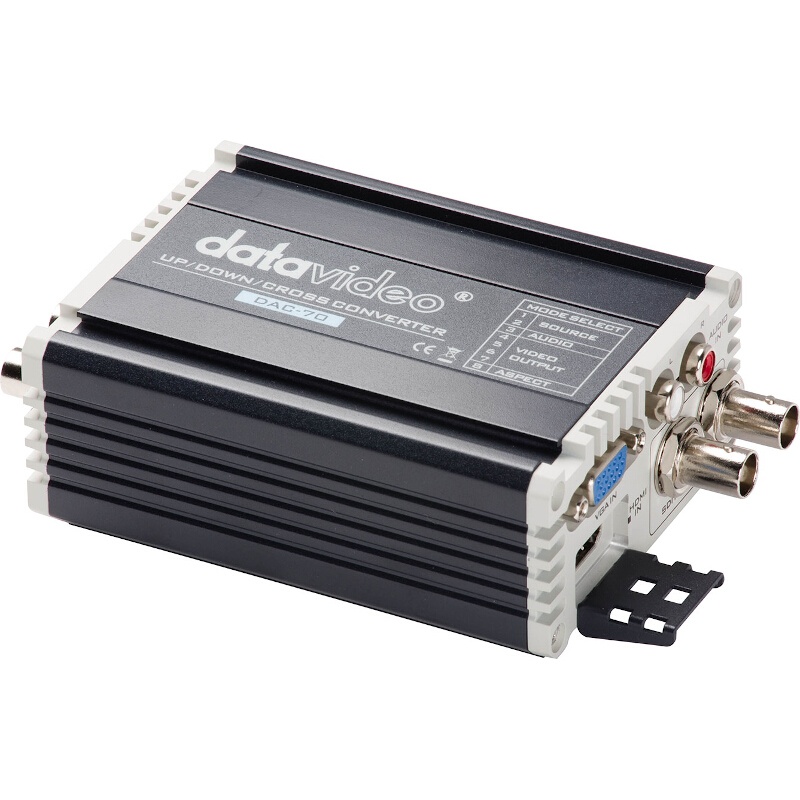

Datavideo DAC-70 SD/HD/3G-SDI Up/Down/Cross Converter

The DAC-70 SD/HD/3G-SDI Up/Down/Cross Converter from Datavideo converts between SD, HD, and 3G formats. It supports 10-bit video processing and accepts VGA, HDMI, and SD/HD-3G-SDI video input signals and automatically converts them to the selected output format. The DAC-70 supports resolutions up to 1080p60 and up to 8 channels of embedded SDI or HDMI audio. An analog L/R audio input is also provided. Thanks to a built-in mini-USB port, the converter is firmware upgradeable for support of future video formats. A 12V / 1A power supply and cord comes included.

Features:
Low SDI jitter with long cable lengths
Compatible with optional RMK-2, for holding multiple converters and distribution amplifiers in a 2RU space
Compatible with the MB-4 battery adapter
Compatible with MB-5 strap adapter
In The Box:
1 x DAC-70
1 x AD Switch DC 12V
1 x DIP switch Pin 8 label

Specifications

Conversion
VGA/HDMI/SDI to HDMI/SDI
Multi-format Up/Down/Cross

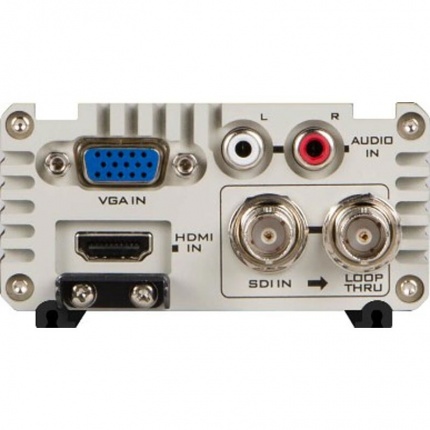

Video Inputs
1x VGA, 1x HDMI,
1x 3G/HD/SD-SDI (support Level A and Level B)

Loop Through
Yes

Video Outputs
2x 3G/HD/SD-SDI with embedded Audio (support Level A and Level B)
1x HDMI

Audio Inputs
2x RCA (Stereo Pair), 2x SDI/HDMI Audio embedded

Audio Outputs
SDI embedded audio up to 8CH, 48KHz, PCM audio
HDMI embedded audio up to 8CH, 48KHz, PCM audio

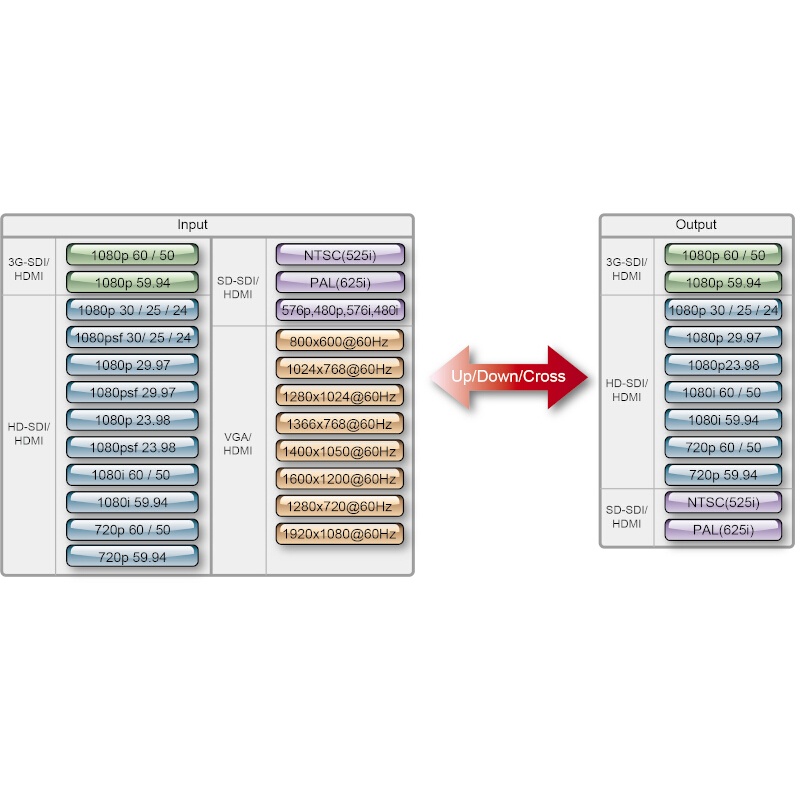

Supported Video Input Formats
1080p(23.98/24/25/29.97/30/50/59.94/60Hz),
1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 576p, 576i, 525i, 480p, 480i, 1920x1080(60Hz), 1280x720(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1024x768(60Hz), 800x600 (60Hz)

Output Resolutions
1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 525i

Equalizer
Yes

Reclock
Yes

SDI Cable Drive
Yes

Dimension (LxWxH)
112 x 85 x 45 mm

Weight
0.4 kg

Operating Temp. Range
0~40 °C

Power
DC 12V, 6W
