Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live productions benefit from a network-ready system that is designed to integrate seamlessly. The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.
Microphone capsule with especially high feedback rejection and consistent pick-up pattern (super-cardioid). Gives vocals a huge amount of space and a voluminous sound. Compatible with all handheld transmitters from the ew G3, ew G4, D1, AVX, SpeechSeries Digital Wireless and 2000 series. The Sennheiser EW-DX 845-S Set comes with two handheld microphones featuring MMD 845 capsules, renowned for their exceptional sound quality and feedback rejection. These microphones offer a super-cardioid pickup pattern, ensuring focused audio capture while minimizing background noise and feedback, making them ideal for live performances, speeches, and presentations. With robust construction and ergonomic design, these microphones provide comfort and reliability during extended use. Additionally, they operate wirelessly, providing freedom of movement on stage or in any performance environment. Whether you're a professional musician, public speaker, or event organizer, the Sennheiser EW-DX 845-S Set with its two handheld microphones guarantees outstanding audio performance and versatility for a wide range of applications.
Unleash the full potential of your audio experience with the Sennheiser EW-DX 845-S Set, a cutting-edge dual-channel digital wireless system meticulously crafted to elevate every performance, presentation, or event; boasting two high-performance handheld microphones equipped with MMD 845 capsules renowned for their pristine sound reproduction and superior feedback rejection, coupled with state-of-the-art digital transmission technology ensuring interference-free operation and remarkable clarity, all seamlessly integrated into a user-friendly interface for effortless setup and operation, making it the ultimate choice for professionals seeking unparalleled audio quality and reliability.
Perfect for Presenters and Singers.
All-in-one digital wireless handheld set for those who sing or speak - featuring Sennheiser's renowned e 845 capsule.

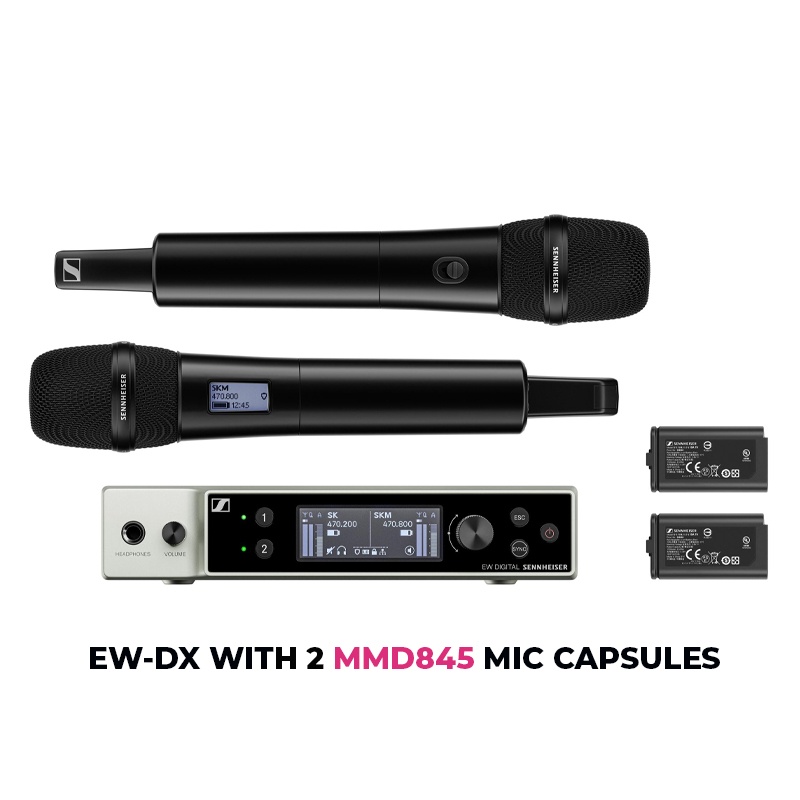

Whats In The Box

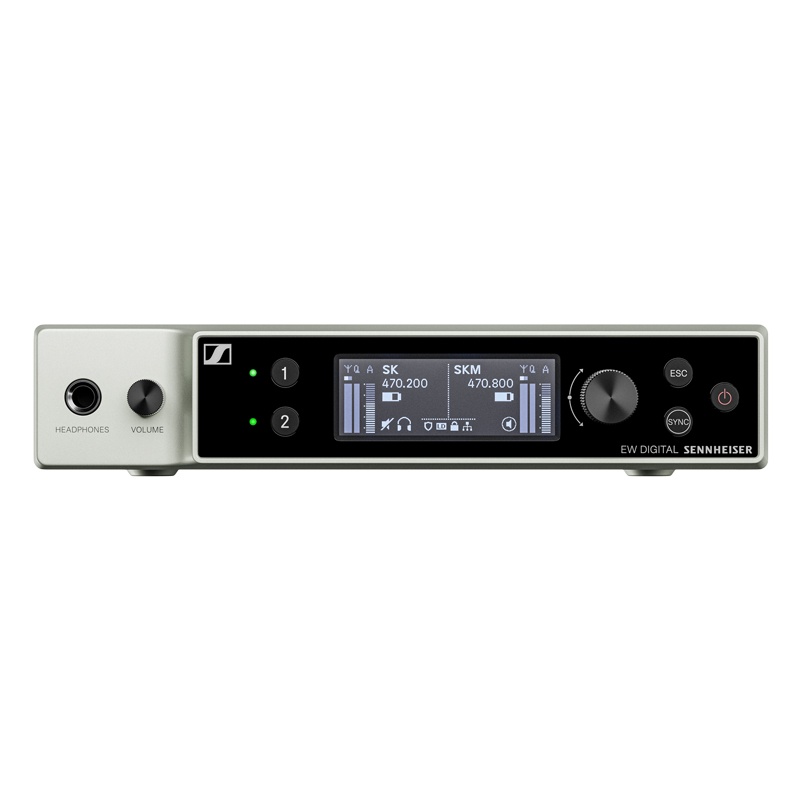

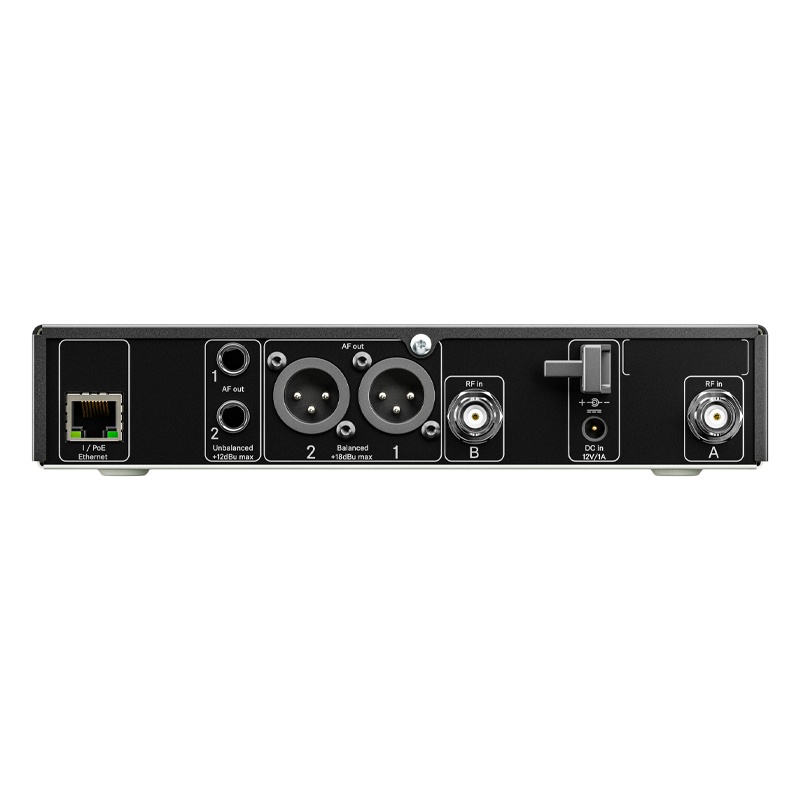

EW-DX EM 2 rack receiver (dual-channel)

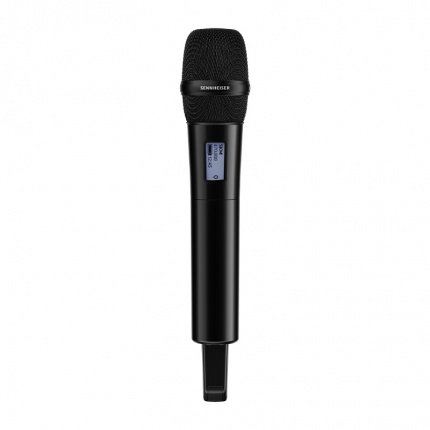

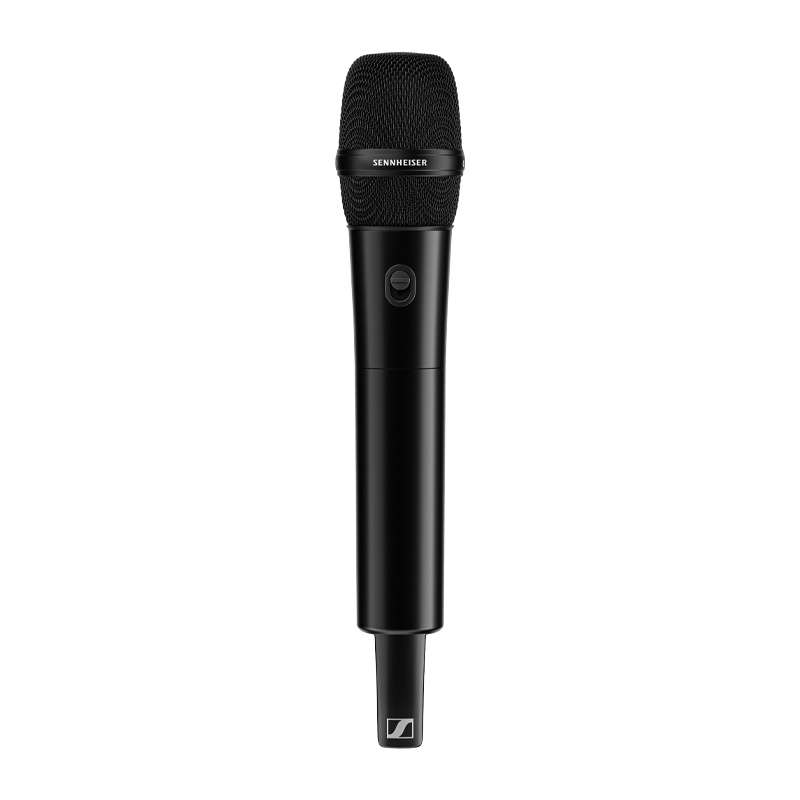

x2 EW-DX SKM-S handheld transmitter
x2 MMD 845 microphone moduleEW-D Power Supply with country adapters

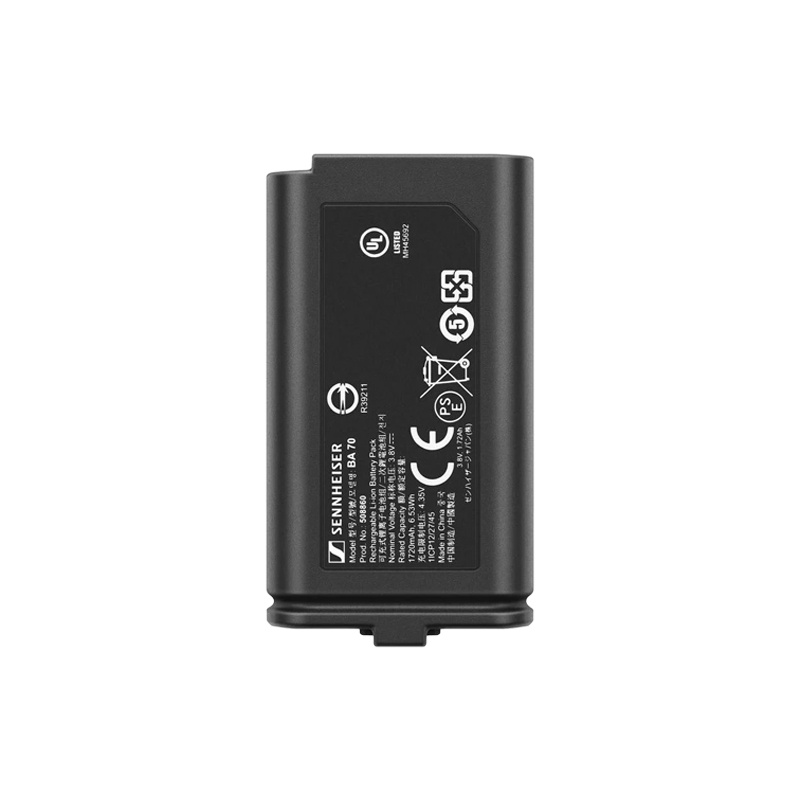

x2 BA 70 rechargeable battery packs
x2 MZQ 1 microphone clamp
x2 rod antennas
GA 3 rack mount Kit
x4 rubber feetSystem
Audio link frequency ranges
Q1-9: 470.2 - 550 MHzR1-9: 520 - 607.8 MHz
S1-10: 606.2 - 693.8 MHz
S2-10: 614.2 - 693.8 MHz
S4-10: 630 - 693.8 MHz
U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
V3-4: 925.2 - 937.3 MHz
V5-7: 941.700- 951.800 & 953.050 - 956.050 & 956.650-959.650 MHz
Y1-3: 1785.2 - 1799.8 MHz
Bluetooth® Low Energy (BLE) frequency range
2405 - 2480 MHzAudio frequency response
20 Hz - 20 kHz (-3 dB) @ 3 dBfsTotal harmonic distortion (THD)
≤ -60 dB for 1 kHz @ -3 dBfs input levelDynamic range
134 dBSystem Latency
1.9 msRF technology
Intelligent Switching DiversityOperating temperature
-10 °C - +55 °C (14 °F - 131 °F)Operating relative humidity
5 - 95 % (non-condensing)EW-DX EM 2 (Rack Receiver)
Input voltage range
11 - 13 V ⎓ or PoE IEEE 802.3af Class 0Input Current
≤ 1ATransmission power
BLE: max. 10 mW EIRPAudio output power
18 dBu max.Ethernet
RJ-45 socket, IEEE802.3100Base-TX (half+full duplex)
10Base-T (half+full duplex)
(CAT5e or higher)
Dimensions
212 x 44 x 189 mmWeight
approx. 1000 g (without antennas and power supply)
EW-DX SKM-S (Handheld Transmitter)Input voltage
2.0 - 4.35 VInput Current
≤ 300 mAPower supply
2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery packOccupied bandwidth
200 kHzTransmit power (radiated)
Audio link: 10 mW ERP(Range Y1-3): 12 mW ERP
LD mode: 10 mw ERP
BLE: max. 10 mW EIRP
Dimensions
50 x 268 mm (incl. MMD 835 microphone module)Weight w/o batteries
approx. 304 g (incl. MMD 835 microphone module) approx. 195 g (without microphone module)MMD 845 (Microphone Module)
Sound pressure level (SPL)
154 dBTransducer principle
dynamicPick-up pattern
super cardioidSensitivity
1,6 mV/PaHandheld Transmitter (each):
Weight: Approximately 312 grams (11 oz)
Dimensions: 50 x 260 mm (1.97 x 10.24 inches)
Receiver:
Weight: Approximately 1 kg (2.2 lbs)
Dimensions: 212 x 44 x 189 mm (8.35 x 1.73 x 7.44 inches)
