Transparent Digital Sound, Dependable Performance, and Multi-Mic Mode
The SLDX3 features a secure, twist-locking XLR connector ready to accommodate a huge variety of microphone options, including handhelds like Shure's VP64 and SM63 models as well as shotguns like the VP82 and VP89 (mics available separately).
The transmitter offers 12 and 48V phantom power options for condenser microphones.
Engage the -12 dB pad for use on loud sources or use the +12 dB boost option on low-level sources.
Use the mic offset gain function to fine-tune the gain and ensure multiple mics are at similar volume levels
.Engage the 150 Hz high-pass filter to reduce distracting, unwanted low-end for clearer speech.

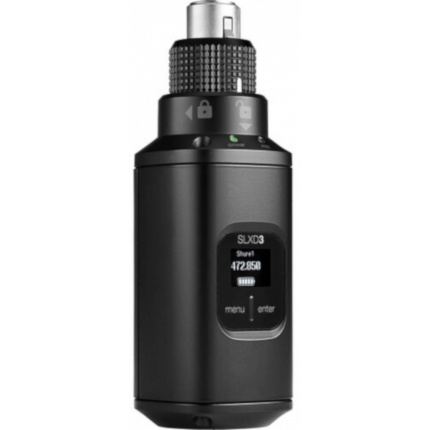

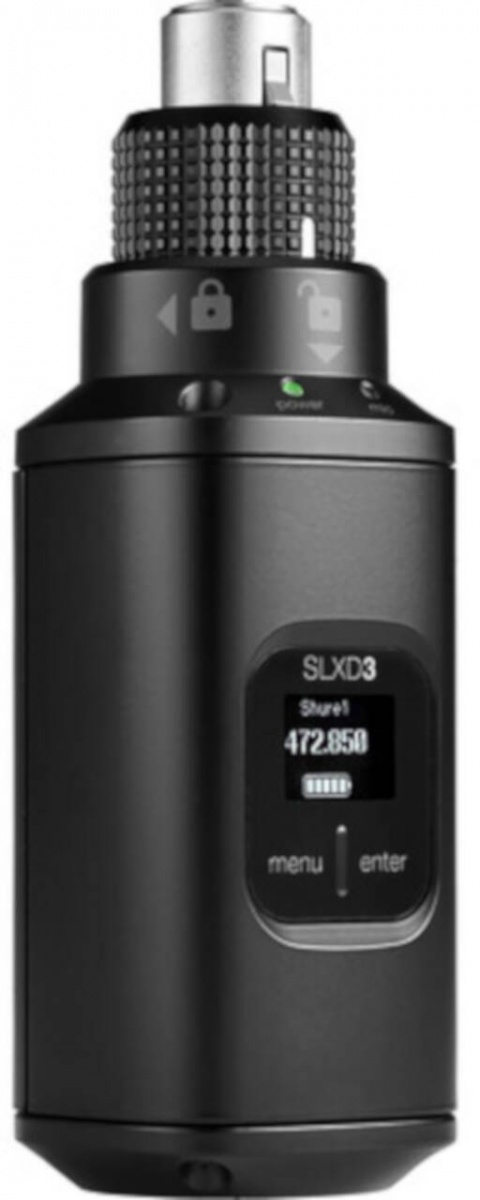

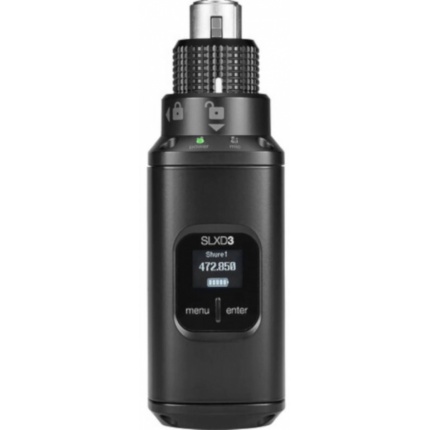

The rugged, all-metal transmitter includes a leather case with a belt clip and an OLED screen that shows essential information.
A selectable 1/10/30mW RF output allows you to increase the transmission power for long distances or to overcome interference, if necessary; the system provides a maximum transmission range up to 330'.

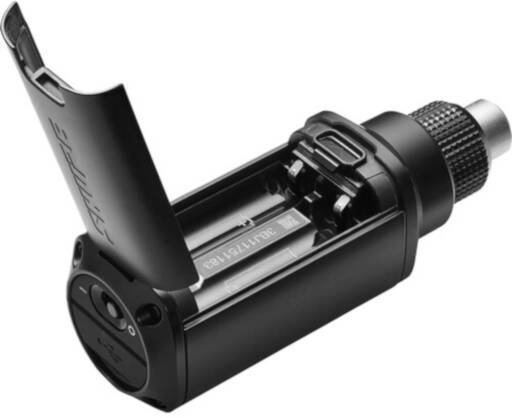

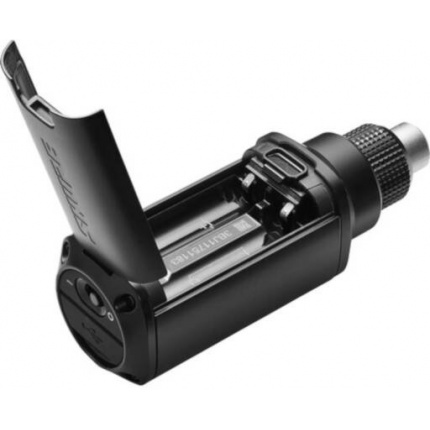

Two AA batteries (included) or an SB903 rechargeable battery (available separately) will power the unit for up to 8 hours.
In the box
Shure SLXD3 Digital Plug-On XLR Transmitter (G58: 470 to 514 MHz)

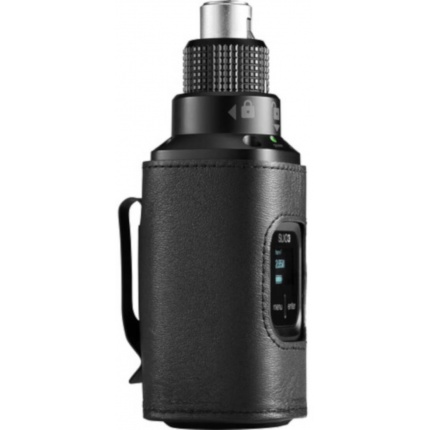

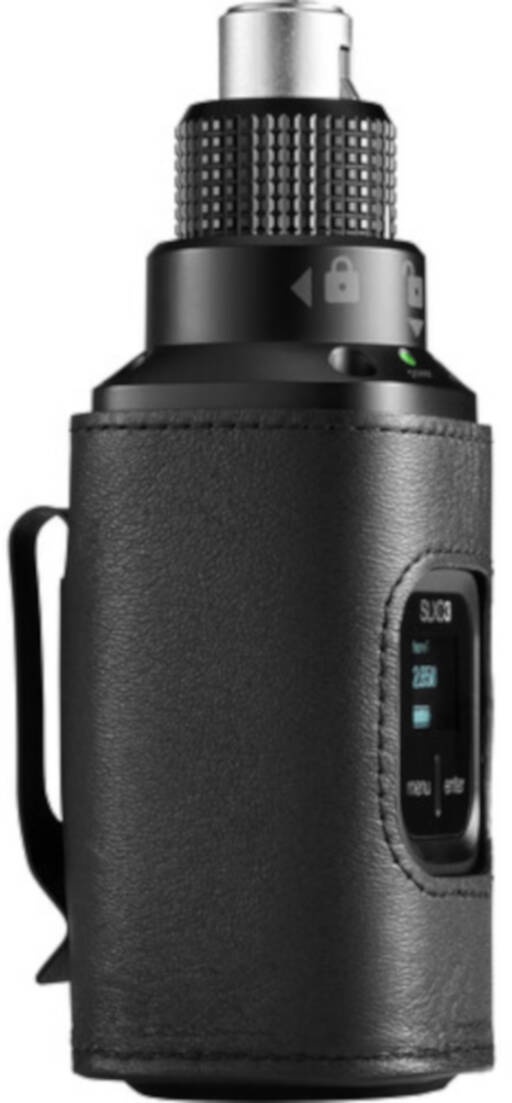

Leather Holder with Belt Clip
2 x AA Battery
Key Specs
Wireless Technology: Digital UHF
Max Operating Range: 328' / 100 m
Transmitter Type: Plug-On
Audio I/O: 1x XLR 3-Pin Male Balanced Input (Locking)
RF Frequency Band: G58: 470 to 514 MHz
RF Bandwidth: 44 MHz
Frequency Step Size: 25 kHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 328' / 100 m
Built-In Recorder: No
Timecode Support: Yes
Mobile App Compatible: No
Sample Rate/Resolution: 24-Bit
Latency: 3.2 ms
Encryption: No
THD: Below 0.02 %
TransmitterTransmitter Type: Plug-On
RF Output Power: 1 / 10 / 30 mW
Audio I/O: 1x XLR 3-Pin Male Balanced Input (Locking)
Included Cable Connector: No
Phantom Power: +12 V, +48 V
Pad: 12 dB
Muting: Off/On Switch
Audio Input Level: +20.5 to -3.5 dBV
Auto-Level Control: No
Gain Range: 0 +21 dB
Signal Processing: No
Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)
Sync Method: IR
Antenna: Internal
Power Requirements: Battery
Battery Type: 2x AA (Included), 1x Shure SB903 (Not Included)
Battery Charging Time: 1.25 to 5.5 Hours
Approx. Battery Life:8 Hours (Lithium Shure SB903)
USB/Lightning I/O: No
Display & Indicators: OLED (Battery Status, Channel, Group)
Housing: Metal
Operating Temperature: 0 to 122°F / -17 to 50°C
Storage Temperature: -20 to 165°F / -28 to 73°C
Dimensions: 1.6 x 5 x 1.6" / 41 x 126 x 41 mm
Weight: 7.1 oz / 200 g
frequency bands: H57 (520-564 MHz)
L57 (650-694 MHz)Packaging Info
Package Weight: 1.215 lb
Box Dimensions (LxWxH): 11 x 6 x 3"
