Rock-Solid Wireless Audio with Professional Digital Sound & More Mic Channels
The UHF transmission greatly enhances range (up to 330') and the wide 80 MHz bandwidth gives you the ability to find a clean channel from 3200 available frequencies.Intelligent Switching Diversity compares incoming signals on two independent antennas and receiver circuits to ensure optimal wireless quality. The receiver switches between antennas only during header data as to never affect the audio information. The equidistant tuning grid removes the need for frequency coordination and enables you to operate up to 134 mic channels simultaneously.
Flexibility for Those Who Want to Choose the Capsule That Best Meets Their Needs.
Base Set for digital wireless applications featuring 2-channel receiver, handheld and bodypack transmitter for use with a wide range of Evolution Wireless Digital microphone heads
Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live productions benefit from a network-ready system that is designed to integrate seamlessly. The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job. Flexibility for Those Who Want to Choose the Capsule That Best Meets Their Needs. Base Set for digital wireless applications featuring 2-channel receiver, handheld and bodypack transmitter for use with a wide range of Evolution Wireless Digital microphone heads.

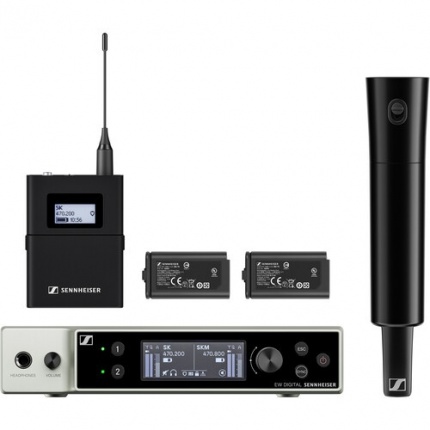

Whats In The Box

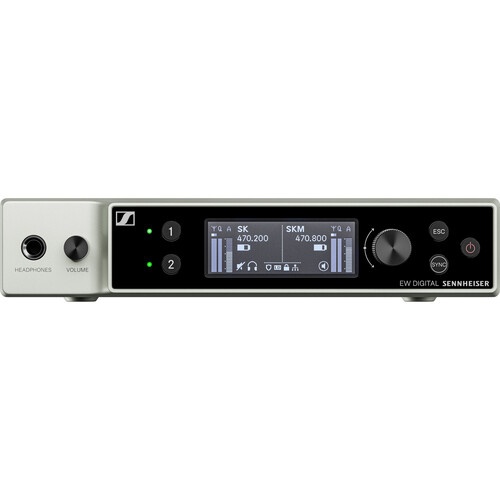

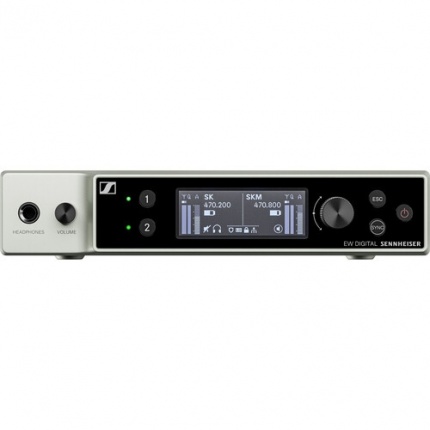

x1 EW-DX EM 2 rack receiver (dual-channel)

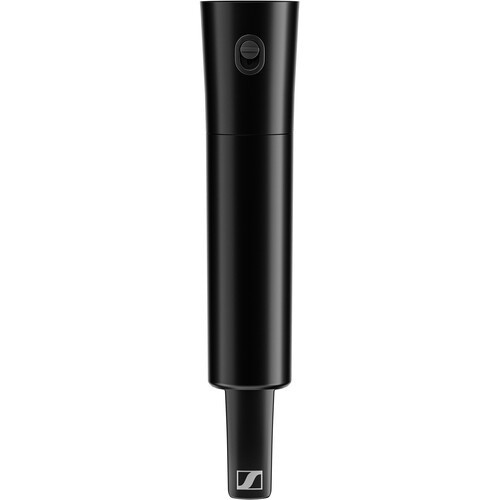

x1 EW-DX SKM-S handheld transmitter

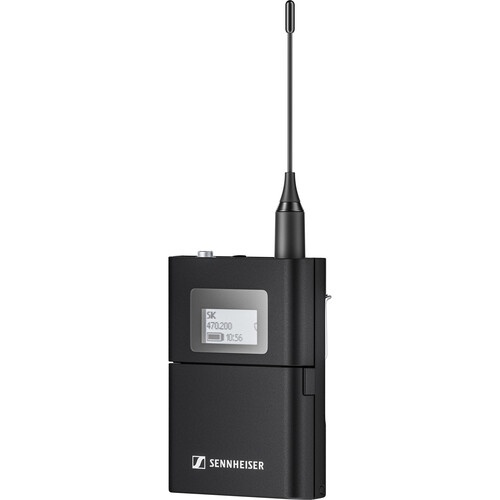

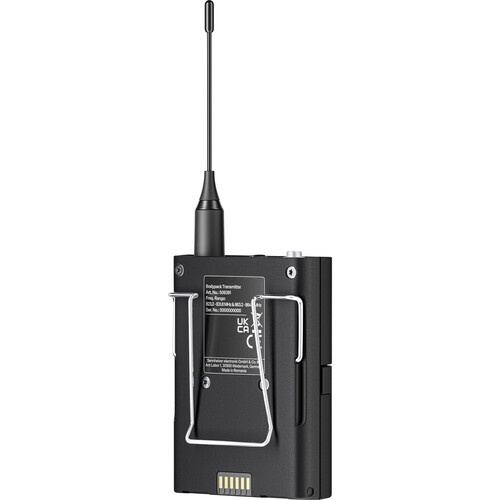

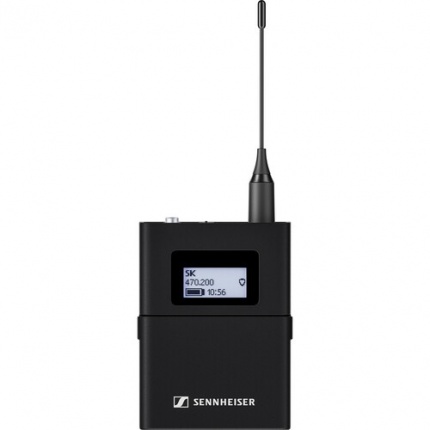

x1 EW-DX SK bodypack transmitter
x1 EW-D Power Supply with country adapters

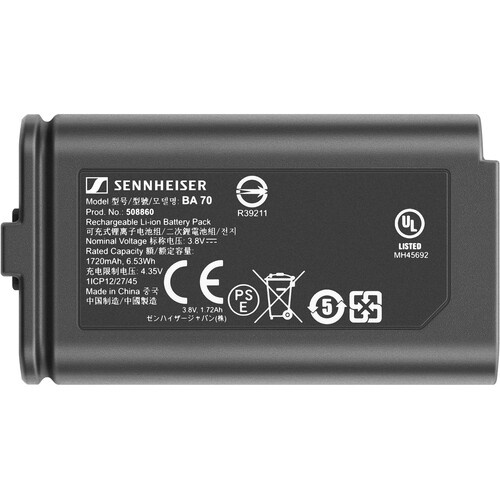

x2 BA 70 rechargeable battery packs
x1 MZQ 1 microphone clamp
x2 rod antennas
x1 GA 3 rack mount Kit
x4 rubber feet
Key Specs
Wireless Technology Digital UHF
Included Transmitters 1x Bodypack 1x Handheld
Diversity Intelligent Switching Diversity
Max Operating Range 328.1' / 100 m (Line of Sight)
Receiver Type Tabletop / Rackmount
Number of Audio Channels 2
System
Wireless Technology Digital UHF
Number of RF Channel Frequencies 3200
Included Transmitters 1x Bodypack 1x Handheld
Diversity Intelligent Switching Diversity
RF Frequency Band Q1-9: 470.2 to 550 MHz
RF Bandwidth 80 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1' / 100 m (Line of Sight) Max Transmitters per Band 269
Built-In Recorder No
Mobile App Compatible Yes: Android & iOS
Bluetooth 5.1 LE
Bluetooth Operating Distabnce 120' / 36.6 m (Transmitter Sync, App Control)Sample Rate/Resolution24-Bit
Latency 1.9 ms
Dynamic Range 134 dB
Encryption AES 256
Receiver
Receiver Type Tabletop / Rackmount
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2x 1/4 Wave Rod, BNC (Rear-Mount)
Number of Audio Channels 2

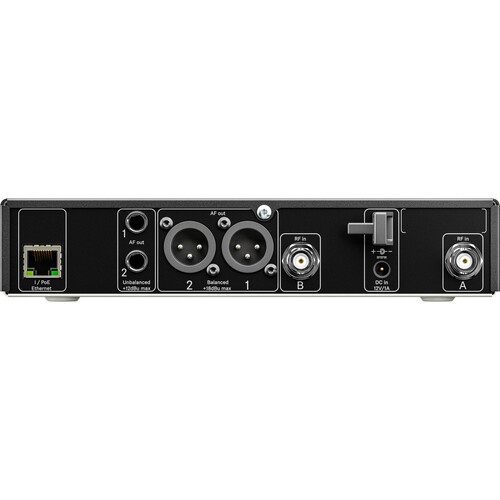

Audio I/O 2x XLR 3-Pin Male Balanced Output 2x 1/4" TS Female Unbalanced Output
Audio Output Level +18 dBu (Max)+12 dBu (Max)
Frequency Response 20 Hz to 20 kHz +3 dB
Network I/O 1x RJ45
Word Clock I/O No
USB/Lightning Connectivity No
Standalone Audio Interface Capable No
RF Output Power 10 mW (EIRP)
Power Requirements AC/DC Power Adapter, PoE
AC/DC Power Adapter 11 to 13 VDC (Included)
DC Input Power 12 VDC
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 1x OLED (AF Level, Channel, Frequency, Output Level, RF Level, Transmitter Battery Status)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 5 to 95%
Dimensions 8.3 x 1.7 x 7.4" / 212 x 44 x 189 mm
Weight 2.2 lb / 1 kg (without Antenna)
Transmitter
Transmitter Type Handheld
RF Output Power 10 mW (ERP)10 mW (EIRP)
Audio I/O No
Included Cable Connector No
Muting Mute Switch
Audio Input Level 2 to 4.35 V
Auto-Level Control No
Frequency Resbponse 20 Hz to 20 kHz -3 dB
Sync Method Bluetooth
Antenna 1x Internal (Handheld)
Power Requirements Battery
Battery Type 1x Sennheiser Battery Pack (Included)2x AA (Not Included)Approx. Battery Life12 Hours (Sennheiser Battery Pack) 8 Hours (Alkaline)
Display & Indicators 1x Backlit LCD (Battery Status, Mute)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 5 to 95%
Dimensions 2 x 10.6" / 50 x 268 mm
Weight 10.7 oz / 304 g
Transmitter 2
Transmitter Type Bodypack
RF Output Power 10 mW (ERP)10 mW (EIRP)
Audio I/O 1x 1/8" / 3.5 mm TRS Female Input (Locking)
Muting Mute Switch
Audio Input Level 2 to 4.35 V
Auto-Level Control No
Frequency Response 20 Hz to 20 kHz
Sync Method Bluetooth
Antenna 1x Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 1x Sennheiser Battery Pack (Included) 2x AA (Not Included)
Approx. Battery Life 12 Hours (Sennheiser Battery Pack) 8 Hours (Alkaline)
Display & Indicators 1x Backlit LCD (Battery Status, Mute)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 5 to 95%
Dimensions 2.5 x 3.3 x 0.8" / 63 x 85 x 20 mm
Weight 4.2 oz / 120 g (without Batteries)
Packaging Info
Package Weight 6.89 lb
Box Dimensions (LxWxH) 16 x 14.3 x 2.9"
