Datavideo DAC-45 4K Up/Down Cross Converter

S$ 1,300.00
(S$ 1,300.00 excl GST)
Not shipping to UNITED STATES OF AMERICA Not refundable/exchangeable
What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!
Key Features:
  • Successor to DAC-70 Converter
  • 4K HDMI Support and Genlock
  • Convert as Low as 480i to Ultra HD 4K
  • Convert VGA/HDMI/SDI to 4K HDMI / 3G-SDI
  • HDMI 2.0 I/O with 4:2:2 Processing
  • 3G-SDI Level A/B Support
  • Reference Input (Black Burst/Tri-Level)
  • Settings Control DIP Switch
  • Audio Lock After Conversion
  • Plug-and-Play Operation
Show moreShow less
  • The Datavideo DAC-45 4K Up/Down Cross Converter is the successor to the popular DAC-70. It has all the same features plus 4K HDMI support and genlock. A built-in super resolution engine allows you to up-convert resolutions as low as 720 x 480 all the way up to Ultra HD 4K.

    The DAC-45 lets you convert video signals from VGA, HDMI, and SDI inputs (with audio) to 4K HDMI or 3G-SDI output. It also allows instant and automatic switching between 4K, HD, and SD formats when the video input changes.

    The DAC-45 Center Utility software is also provided to you as a free download from Datavideo's website. This application lets you designate various video and audio settings as well as obtain device information.



    Features:

    Successor to the DAC-70 with 4K HDMI support and genlock
    Convert from as low as 720 x 480 all the way up to Ultra HD 4K
    Convert VGA, HDMI, and SDI inputs (with audio) to 4K HDMI or 3G-SDI output
    HDMI 2.0 input/output with 4:2:2 processing
    Up/down/cross convert between 4K, 3G, HD, and SD formats
    3G-SDI Level A/B support
    Reference input (Black Burst and Tri-Level Sync)
    Built-in super resolution engine for 4K up-conversion
    Built-in resolution and frame rate up/down conversion engine
    Built-in de-interlacer and interlacer (i p conversion )



    In The Box:

    1 x DAC-45
    1 x AD Switch DC 12V

  • Conversion
    VGA/HDMI/SDI to 4K HDMI/3G-SDI
    Multi-format Up/Down/Cross

    Video Inputs
    1x VGA, 1x HDMI, 1x HD/SD-SDI
    1x Reference Input

    Video Outputs
    1x SDI, 1x HDMI

    Audio Inputs
    2x RCA(Unbalanced Audio L/R), 2x SDI/HDMI Audio embedded

    Audio Outputs
    SDI embedded audio up to 8CH, 48KHz, PCM audio
    HDMI embedded audio up to 8CH, 48KHz, PCM audio

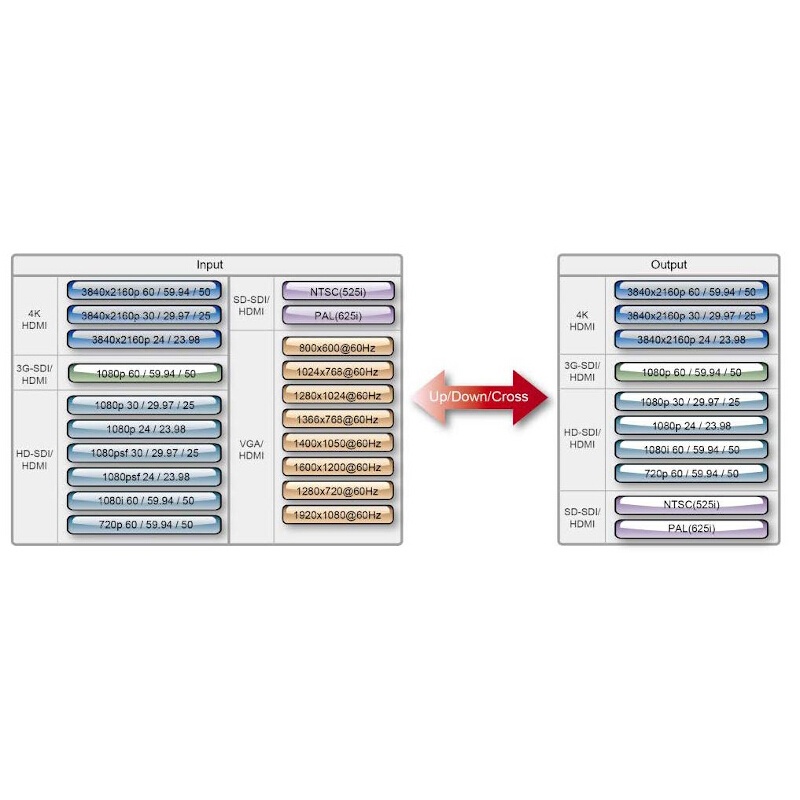

    Supported Video Input Formats
    2160p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz),
    1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
    625i, 576p, 576i, 525i, 480p, 480i, 1920x1080(60Hz), 1280x720(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1024x768(60Hz), 800x600 (60Hz)

    Output Resolutions
    2160p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz),
    1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
    625i, 576p, 576i, 525i, 480p, 480i

    Equalizer
    Yes

    Reclock
    Yes

    SDI Cable Drive
    Yes

    Dimension (LxWxH)
    220 x 143 x 42 mm

    Weight
    1 kg

    Operating Temp. Range
    0~40 °C

    Power
    DC 12V, 9.4W
