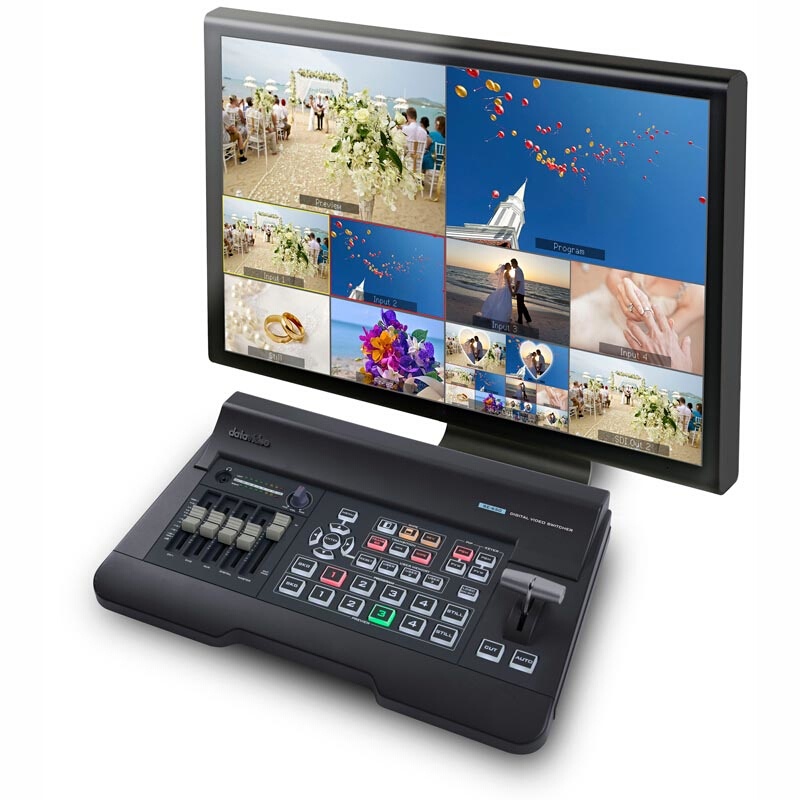

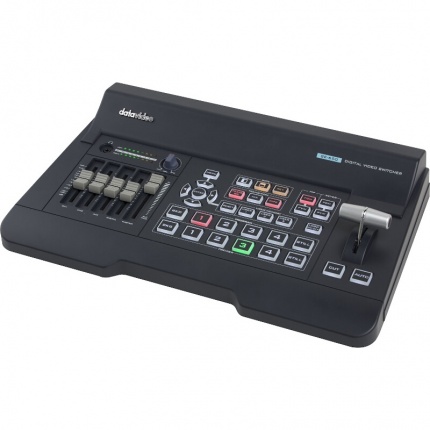

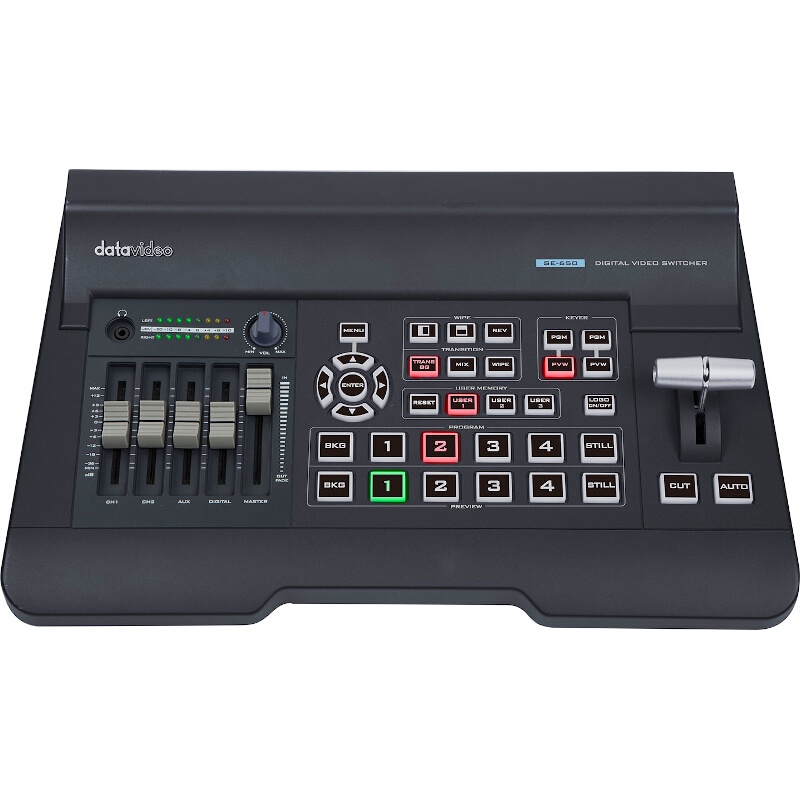

The Datavideo SE-650 is a small, costeffective, professional HD digital video switcher.
It offers two HD-SDI and two HDMI inputs that support video formats up-to 1080i.
It features two HDMI outputs and a user assignable HD-SDI output.
The SE-650 is the perfect device for small scale video production using professional cameras and HDMI equipment. The SE-650 also features an audio mixer with microphone and unbalanced RCA audio inputs.
Advanced tools include Chromakey, Luma key, PiP, wipe generator, still store and tally.
Features:
Any Input can be used as a frame (stills) store
Assignable outputs: Program (with DSK), Clean Program (without DSK), Clean Preview (without DSK), Multiview
Frame sync on each input
Flexible mix effects processor with one upstream keyer, supporting chroma key, and linear/luma key
One upstream PiP, supporting chroma key and luma key
Wipe generator: 32 wipe patterns including shapes with border and softness control
Full mix effects preview function
Logo insertion
XPT (Cross Point Assignment)
Tally output
Six-channel audio mixer
Supports embedded audio
Multi-language supportIn The Box:
1 x SE-650 product
1 x AD Switch DC 12V with AC CordVideo Standard
HDVideo Format
1080i 50/59.94/60Hz
720p 50/59.94/60HzVideo Processing
SDI: 4:2:2
HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4Input Routable / Crosspoint
All 4, repeatableVideo Input

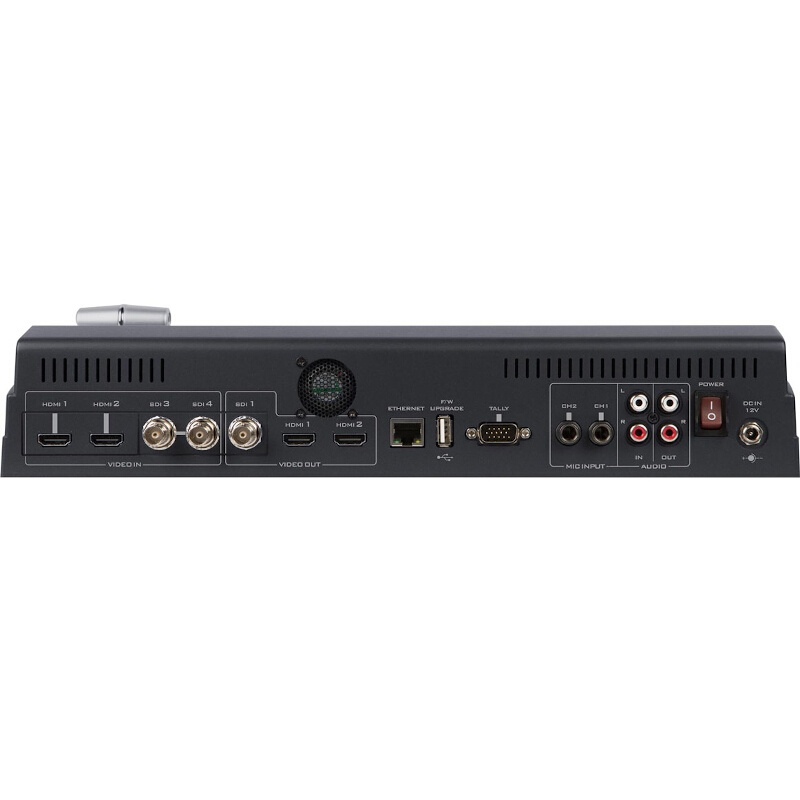

2x HD-SDI
2x HDMIComputer Graphic Interface
2 via HDMIVideo Output
2 x HDMI (1 is MV, 1 is Assignable)
1 x HD-SDI (Assignable)Built-in Multi-view Monitoring Out
HDMI & SDI assignableAnalogue Audio Input
1 x Stereo RCA (L/R)
2 x Mono MicrophoneAnalogue Audio Output
1 x Stereo RCA (L/R)
1 x Stereo headphone (Mini Jack with volume control)Digital Embedded Audio Support
Input 2 channels, Output 2 channelsA+V Switching
YesChromakey
2USK
2x Keyer support Chromakey/ Linear/ Luma KeyDSK
1x DSK support Lumakey/ Linear key (Key / Fill)Picture in Picture
1Logo Insertion
1Still Store
500Effects
FTB, Cut, 32 Wipe with borderTransition Preview
Full transitions previewSync / Reference In/Out
Built-in Genlock (internal)Tally Output
1x D-sub 15pin, dual colorPC Remote Control
DVIP (Ethernet)Built-in Audio Mixer
Yes, 4 channelsSpecial Features
Free Virtual Set and Stinger transition includedChassis
UnibodyDimension (LxWxH)
400 x 250 x 82 mmWeight
1.9 kgPower
DC 12V, 29WOperating Temp. Range
0~40 °COptions
CB-46/47/60/61/62
