Datavideo SE-1200MU 6-Input Switcher and RMC-260 Controller Bundle

The Datavideo SE-1200 Bundle is comprised of the SE-1200MU 6-Input HD Video Switcher plus the RMC-260 Controller. The two components of this bundle enable you to control multiple video sources and outputs by using an ergonomically-designed switcher. Employed in lieu of computer-based control, the RMC-260 Controller brings the solidity of a tactile interface to your use of the SE-1200MU 6-Input Switcher. The controller features clearly-labeled, LED-lit buttons and knobs, XPT (cross-point assignment), a sloped interface, and a T-bar lever. The SE-1200MU 6-Input Switcher features four HD-SDI and two HDMI inputs, two HD-SDI outputs, two assignable HDMI multi-view outputs, and chroma and luma key functions.

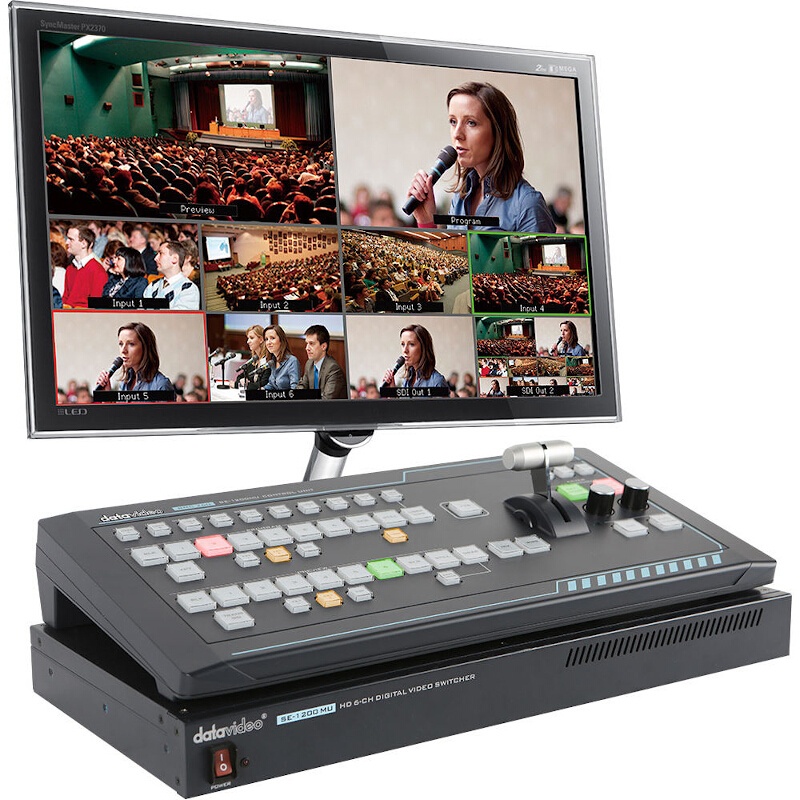

The compact SE-1200MU switcher can be rack-mounted (1 RU), or it can fit neatly under the RMC-260 Controller in situations where space is limited.

Datavideo SE-1200MU 6 Input HD Digital Video Switcher
At only 1RU in height, the Datavideo SE-1200MU 6 Input HD Digital Video Switcher is a small, portable, computer controlled switcher. Designed to be controlled using the front panel buttons, RS-422, or via a computer. An optional monitor is required to view your output. The unit supports 1080i and 720p video via 4 HD-SDI inputs and 2 HDMI inputs, with the HDMI inputs supporting computer signals.

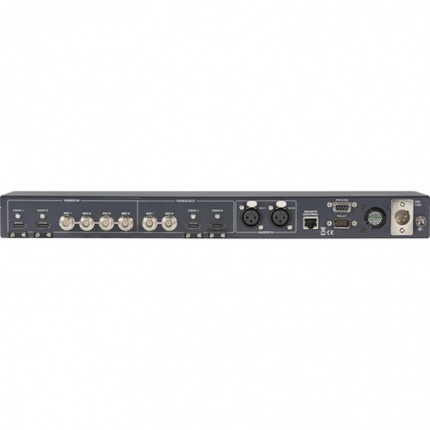

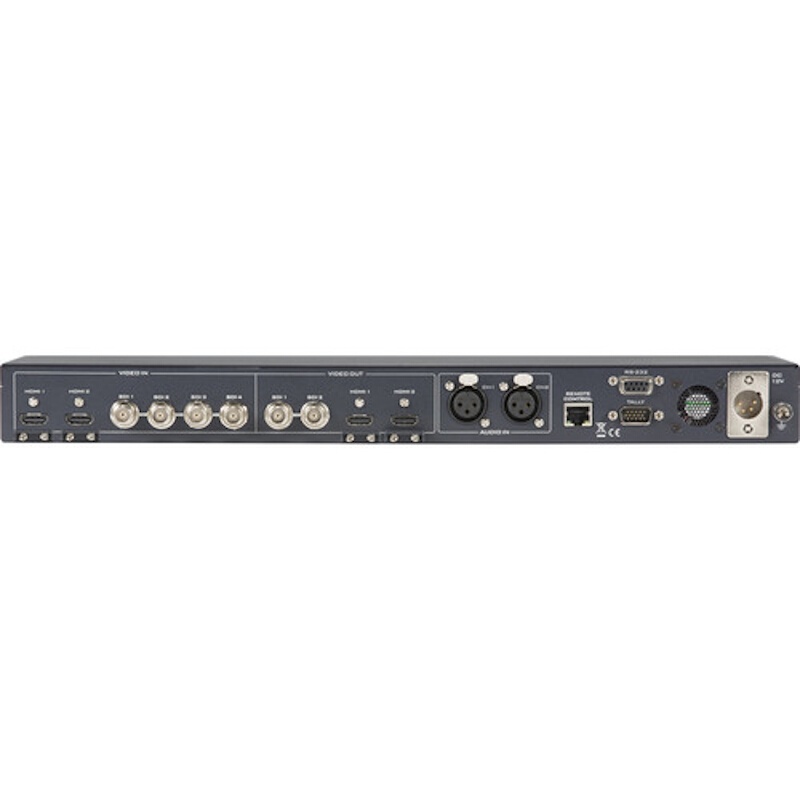

The SE-1200MU has 2 HD-SDI outputs and 2 assignable HDMI multi-view outputs. In terms of audio, there are 2 XLR mono inputs (1 stereo pair) and the switcher supports audio embedding of analog audio. The switcher supports Luma and linear keying with 2 downstream keyers, and has built-in effects including fade to black, straight cut, and 32 wipes with border. The internal frame synchronizer allows you to use consumer cameras with HDMI output and computers as input sources while making straight cuts without having the image jump, or requiring a fade to black. As you would expect with a switcher, this unit supports Tally indication on the multi-view output.

Features:

6-Input high definition switcher
1RU rackmountable processing unit
4x HD-SDI and 2x HDMI inputs
Re-configurable inputs
2x HD-SDI outputs
2x Assignable HDMI outputs for dual multi-view screens
32 Wipe effects with border options
Multi-view output
Cross point assignment
PC remote control
Tally output
12 VDC operation voltage

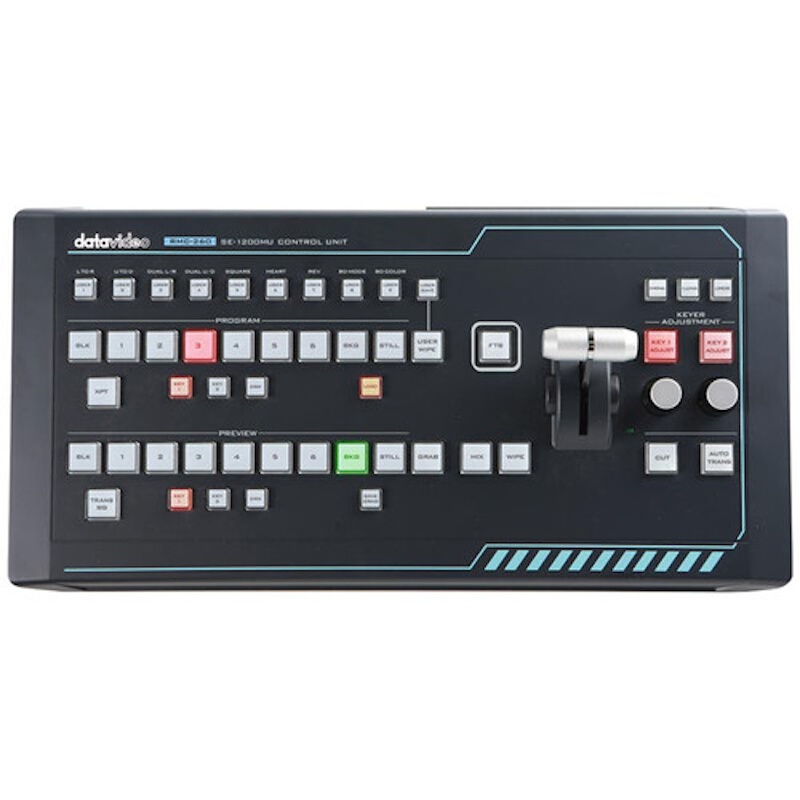

Datavideo RMC-260 Remote Control for SE-1200MU Digital Video Switcher
The RMC-260 Remote Control from Datavideo is used for controlling the SE-1200MU Digital Video Switcher (switcher not included) via an RS-232 interface. With hard keys for the main switcher functions and on-screen menu controls for quick and easy adjustment of parameters in the field, the RMC-260 is designed for effortless switching. The RMC-260 can be used with or without the PC Control Software, although the software must be used for upgrades and for import/export of user memory settings, stills, and clips.

Features:

Clear key definitions
Support for keyers enable and quick function assignment
Allows you to save user behaviour using the user memory keys for quick access
Two keyers with two corresponding knobs for assignment of keyer 1/2 sources
XPT (cross-point assignment)
Take button to switch between PVW and PGM views
FTB button fades the PGM view to a black screen
Still Grab function for capturing instantaneous video image
RS-232 interface for communication between RMC-260 and SE-1200MU
Bright LED lighting

In the Box:
Datavideo SE-1200MU 6 Input HD Digital Video Switcher
12 VDC Power Adapter and Cord
Datavideo RMC-260 Remote Control for SE-1200MU Digital Video Switcher
