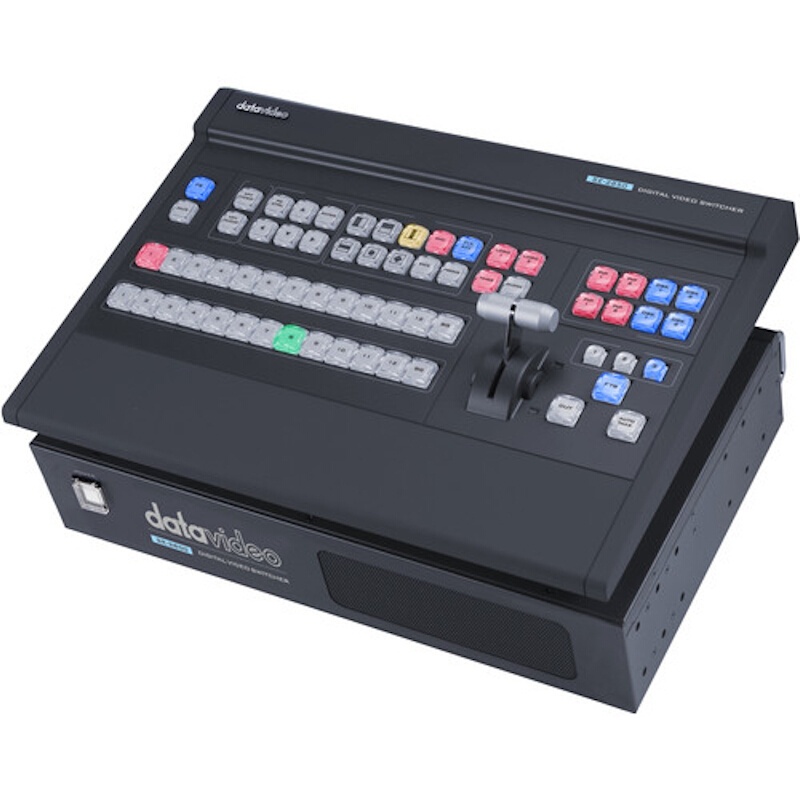

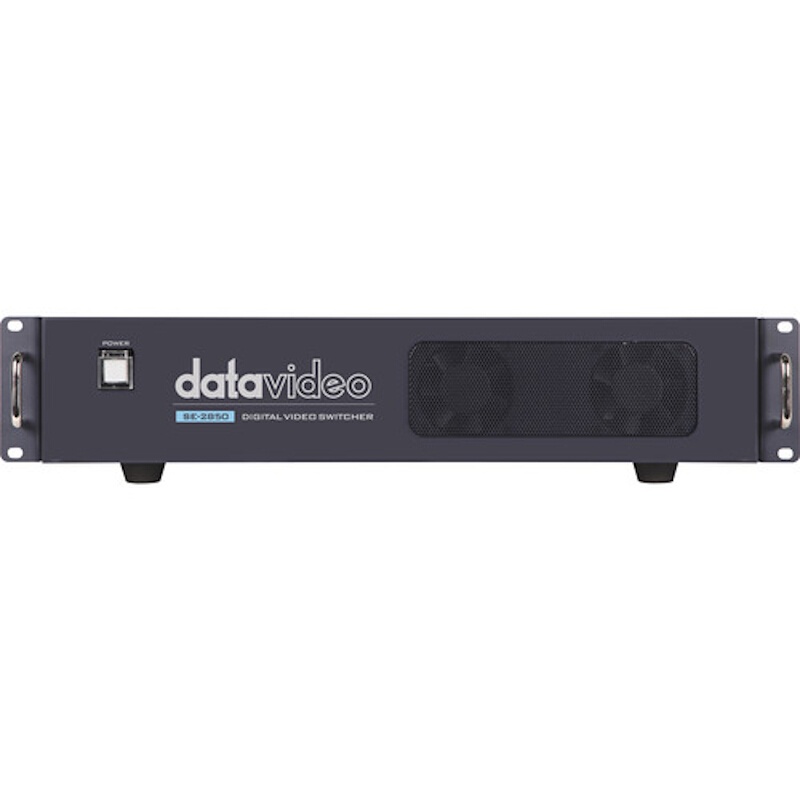

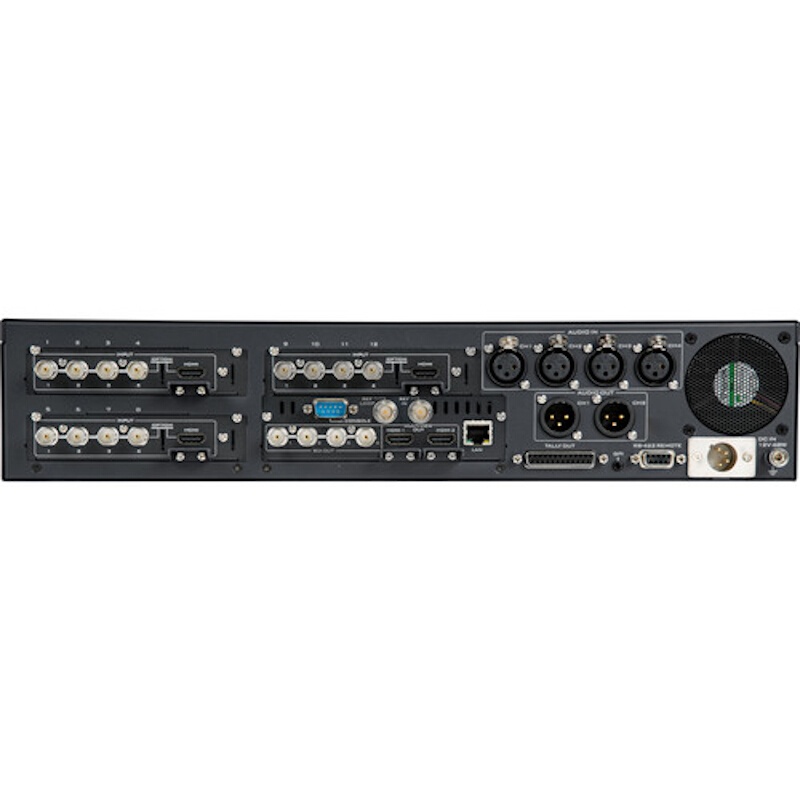

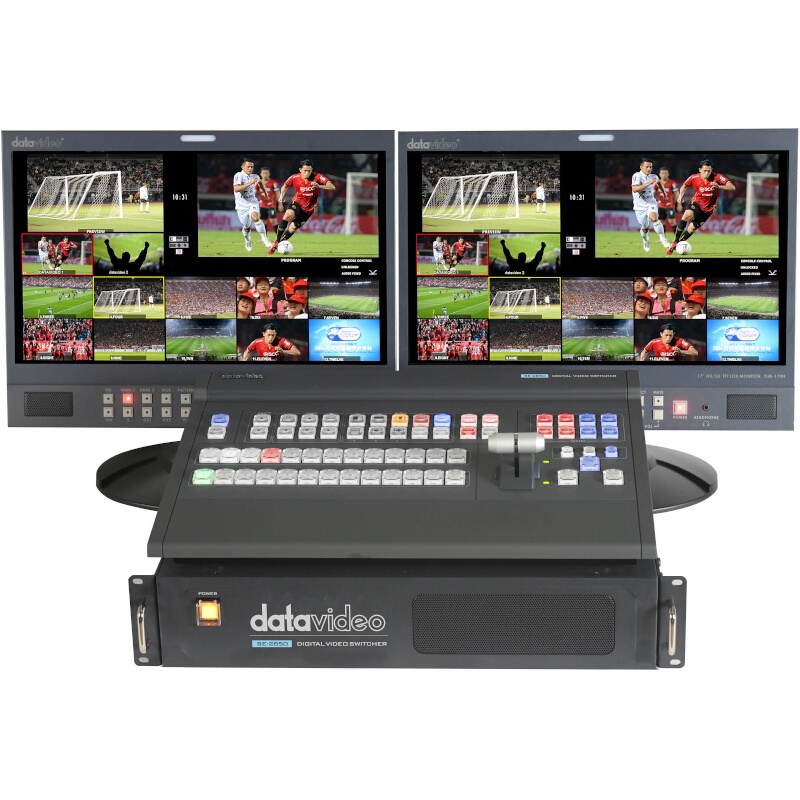

Datavideo SE-2850-12 HD/SD 12-Channel Video Switcher

Datavideo SE-2850-12 is a multi-definition switcher designed for productions requiring 12 channels of HD or SD inputs. Being one of Datavideo’s most flexible switcher solutions, the SE-2850 is able to accept inputs in varying combinations of HD/SD SDI and HDMI. It is ready for every live production, giving producers the opportunity to output graphics with rich, visually appealing programming.

The Datavideo SE-2850’s audio functionality allows it to connect an external mixer for a complete sound control. The Datavideo SE-2850 also features all channel audio de-embedding and audio delay, and 4 dedicated XLR inputs. As an integrated Multimedia mixer, the SE-2850 can switch between up to 12 audio sources.

In addition to producing superb 4:2:2 10 bit broadcast quality pictures with versatile input/output configurations, the Datavideo SE-2850 also has powerful, easy-to-use effects, such as dual picture in picture (PIP), downstream keyer (DSK), logo insertion and built-in title overlay system for the entry level Datavideo CG systems.

Features:

Supports twelve HD or SD inputs with six video and audio cross-point options on four SDI outputs
Dual user-positioned PiP, dual logo support, and dual downstream keyers (DSK) with Luma and alpha channel options
Four XLR audio inputs with two output modes; audio delay for each de-embedded audio source
Integrated title overlay system works with entry-level Datavideo CG systems
Additional features including frame store for each channel, 17 wipe choices, and master and countdown clocks

In the Box:
Datavideo SE-2850 HD/SD 12-Channel Video Switcher
SE-2850 Control Board
AC Adapter
Power Cord
DB9P to DB9P Cable
Datavideo Dual Connector XLR Audio Cable (14")
2 x Spare Wipe-Button Caps
12 x Screws
2 x Rackmounts
