AVLFX - JBL Control 16C/T - 6.5" Two-way Coaxial Ceiling Loudspeakers Pair, White Ceiling Loudspeaker

Styled in black, this pair of JBL Control 16C/T Speakers are designed to suit a variety of spaces, such as cafes, places of business, airport lounges, reception areas, court rooms, and more. They feature a 2-way coaxial design, giving you a 6.5" cone driver and a 0.75" soft-dome, liquid-cooled tweeter. With their coaxial construction, these speakers deliver a more consistent sound off-axis, which is a benefit for environments in which indirect listening takes place.
Installation is made possible via the removable locking connector, within which you'll find screw terminals for wire termination, as well as loop-thru points for furthering signal to more speakers. Dual conduit clamps employed to provide strain relief to both the input and loop-output cables. You can use the speaker to handle 8-Ohm loads, or as part of a 70V / 100V distributed loudspeaker system with a 30W multi-tap transformer.

In the box

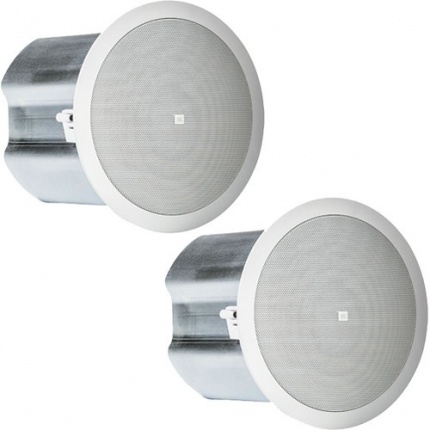

JBL Control 16C/T 2-Way 6.5" Coaxial Ceiling Loudspeakers (Pair, White)
2 x C-Ring Support Backing Plates
4 x Tile Support Rails for 2' or 600mm Tile Spans
2 x Cardboard Cutout Templates
2 x Paint Shields
2 x Removable Locking Multi-Pin Connectors
2 x Grilles

Specifications

Frequency Range 62 Hz to 20 kHz at -10 dB

Frequency Response 96 Hz to 15 kHz at ±3 dB

Power Capacity At Lo-Z: 100 W continuous program power 50 W continuous pink noise Note: Continuous Pink Noise Rating is IEC-shaped pink noise with a 6 dB crest factor for 100 hours continuously. Continuous Program Power is a conservative expression of the system's ability to handle normal speech and music program material, and is defined as 3 dB above the Continuous Pink Noise Rating.

Nominal Sensitivity 91 dB

Nominal Coverage Angle 110° conical coverage

Directivity Directivity Factor(Q): 7.8 Directivity Index (DI): 8.2 dB

Maximum SPL Rated: 108 dB @ 3.3' / 1.0 m average, 116 dB peak

Nominal Impedance 8 Ohms (in direct/bypass 8-Ohm setting)

Transformer Taps 30 W, 15 W, 7.5 W @ 70 or 100 V (plus 3.8 W @ 70 V only)

Crossover Network: 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver

Transducer LF Driver: 6.5" / 165.1 mm with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high-temperature voice coil HF Driver: 0.75" / 19.00 mm, highly damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide

Input Connector Removable locking 4-pin connector with screw-down terminals.Maximum wire size 12 AWG (2.5 mm2)

Wiring Connector:Pin 1 = + In Pin 2 = - In Pin 3 = + Loop Thru Pin 4 = - Loop Thru

Strain Relief For 2 cables or 2 flex conduits via coupled clamping mechanism

Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire ratingZinc-plated steel backcan

Safety Agency Approvals UL1480, UL2043, NFPA90, and NFPA70; S7232/UL ListedTransformer UL registered per UL1876; ROHS, C-tick N108, CE compliant Baffle meets UL94-V0 and UL94-5VB flammability ratingIn accordance with IEC60849/EN60849 systems

Attachment Safety Seismic: One point, top surface

Ceiling Cutout Size Circular cutout with 8.8" / 223.5 mm diameter (cardboard cutout template included)

Ceiling Thickness Up to 1.5" / 38.1 mm with stock dog-ears MTC-TCD thick-ceiling dog-ears sold separately for up to 2.4" / 60.9 mm ceiling thicknesses

Dimensions Each Speaker: 10.0 x 8.8" / 253 x 225.0 mm Depth measured from back of the baffle

Weight Each Speaker: 7.4 lb / 3.4 kg

Package Weight 24.3 lb

Box Dimensions (LxWxH) 26.8 x 14.1 x 12" 68 x 36 x 31
