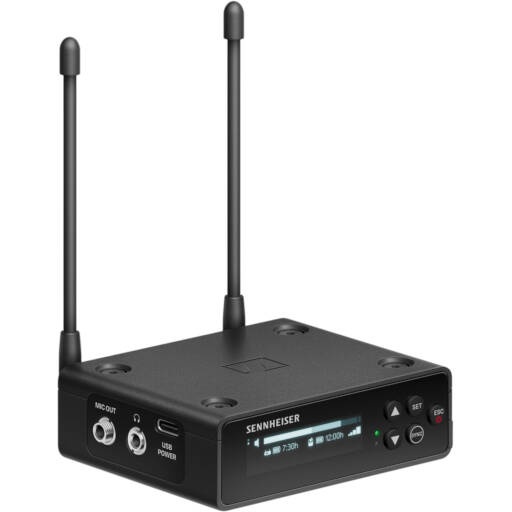

Camera-Mount Receiver with OLED Screen and Multiple Powering Options

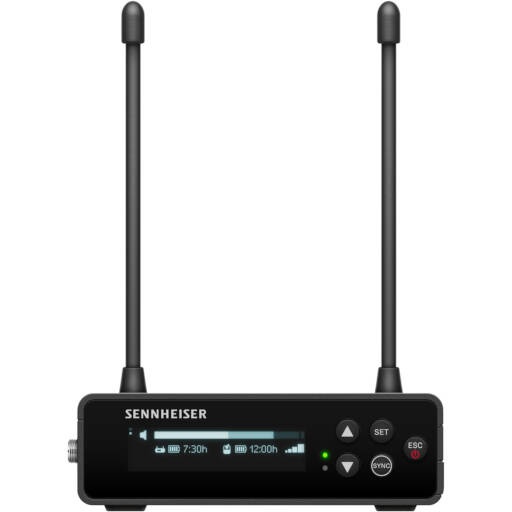

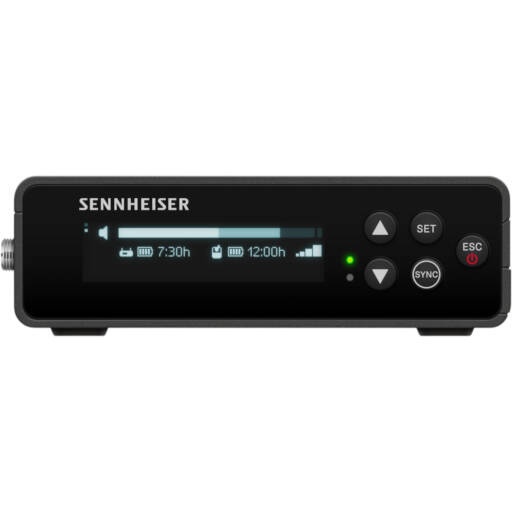

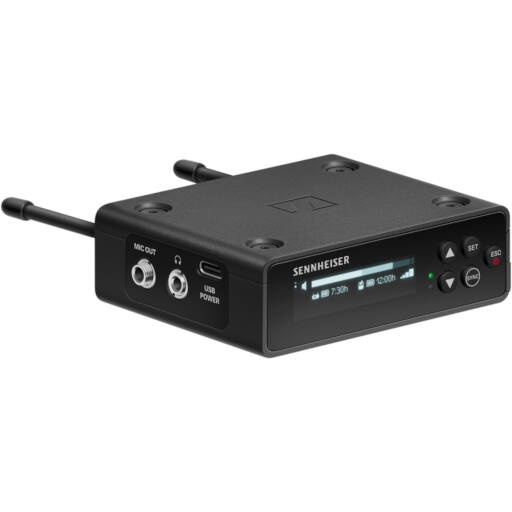

At the heart of the system is the compact EW-DP EK portable, single-channel receiver, made with simplicity in mind for DIY cameramen, videographers, creators, and journalists working in the field without a crew. A front-facing OLED display allows for easy menu navigation and at-a-glance system status at any angle, in any light.
To ensure peace of mind during long hours on set, the receiver can be powered via two AA batteries or the BA 70 lithium-ion rechargeable battery pack (all included). Power can also be supplied through the USB port, allowing it to run for numerous hours on a USB power pack or indefinitely with access to AC.
Versatile Mounting Options for Receiver

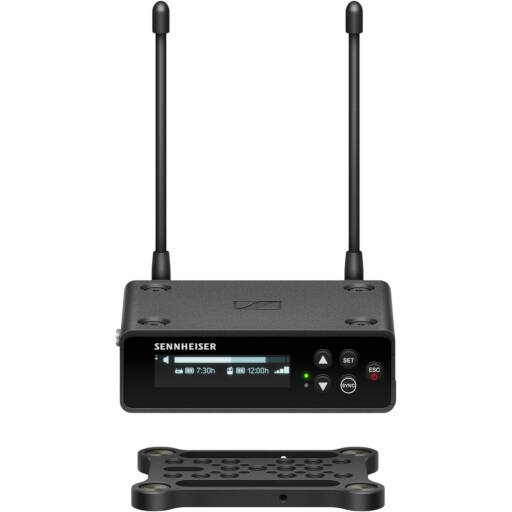

In addition to the cold shoe mount with a 1/4"-20 thread on the bottom, the receiver comes with a magnetic cheese plate that provides flexible mounting options for camera cages and accessory arms.
The magnetic mounting system lets you securely stack a second transmitter right on top when you’re shooting two, on-camera personalities. Sennheiser offers a combiner cable that will allow you to record both receivers to a camera’s single 3.5mm input.
Bodypack Transmitter with Mute Switch and ME 2 Omni Lav Mic

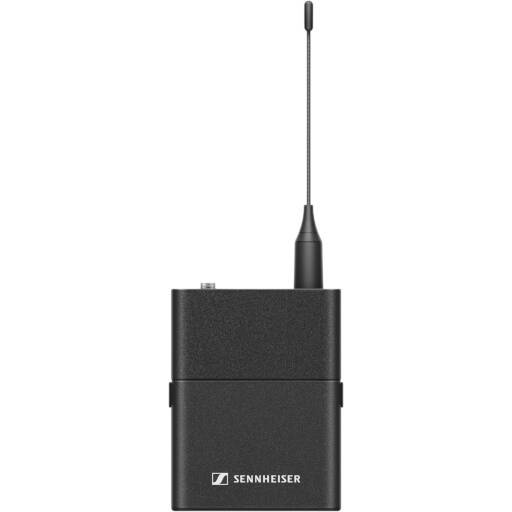

The ME 2 lavalier microphone features a forgiving omnidirectional pickup pattern that captures sound equally well in every direction, for a consistent voice level, even when moving your head. The lav plugs into the locking 3.5mm connection on the compact EW-D SK bodypack transmitter.
The rugged, all-metal transmitter is equipped with a mute button that can be locked out and overridden from the receiver or a phone/tablet during a take.
The transmitter quickly pairs with the receiver via Bluetooth at a distance up to 120' at the press of a button.
The bodypack provides up to 8 hours of operation on two AA batteries or 12 hours with the BA 70 rechargeable battery pack.

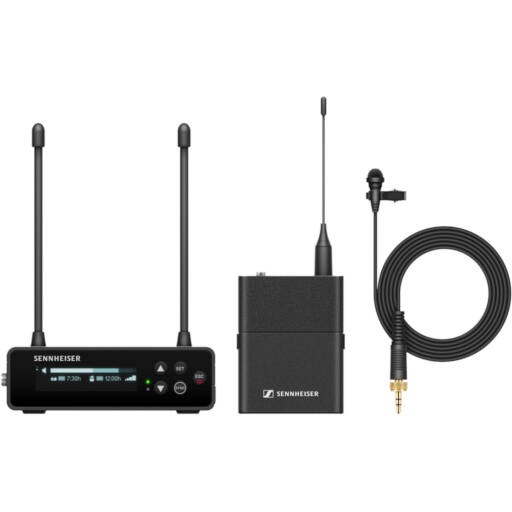

In the box
Sennheiser EW-DP EK Camera-Mount Digital Wireless Receiver (Q1-6: 470 to 526 MHz)
Sennheiser EW-D SK Digital Wireless Bodypack Transmitter (Q1-6: 470 to 526 MHz)
Sennheiser ME 2 Omnidirectional Lavalier Microphone with Locking 3.5mm Connector (Black)
Sennheiser CL 35 TRS Locking 3.5mm TRS to 3.5mm TRS Coiled Cable
Sennheiser CL 35-XLR Right-Angle Locking 3.5mm TRS to XLR Male Coiled Output Cable
USB-C Charging Cable
Sennheiser BA 70 Rechargeable Battery Pack for EW-D Bodypack and Handheld Transmitters
2 x AA Battery
Mounting Kit (Cheeseplate, Cold Shoe, Beltclip, Screws)
Key Specs
Wireless Technology: Digital UHF
Included Transmitters: 1x bodypack
Diversity: Intelligent Switching Diversity
Max Operating Range: 328.1' / 100 m (Line of Sight)
Receiver Type: Camera-Mount
Microphone Type: Lavalier
Polar Pattern: Omnidirectional
System
Wireless Technology: Digital UHF
Number of RF Channel Frequencies: 2240
Included Transmitters: 1x Bodypack
Diversity: Intelligent Switching Diversity
RF Frequency Band: 470 to 526 MHz
RF Bandwidth: 56MHz
Frequency Step Size: 25kHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 328.1' / 100 m (Line of Sight)
Max Transmitters per Band: 58
Built-In Recorder: No
Mobile App Compatible: Yes: Android & iOS, App Name: Sennheiser Smart Assist, Functionality: Adjust Settings, Remote Control, Setup
Bluetooth: 5.1 LE
Bluetooth Operating Distance: 120' / 36.6 m (Transmitter Sync, App Control)
Sample Rate/Resolution: 24-Bit
Latency: 1.9 ms
Dynamic Range: 134 dB
Encryption: No
Receiver
Receiver Type: Camera-Mount
Mounting Options: Belt Clip, Shoe-Mount, 1/4"-20 Female (with Included Hardware)
Antenna: 2x 1/4 Wave Rod, Fixed
Number of Audio Channels: 1

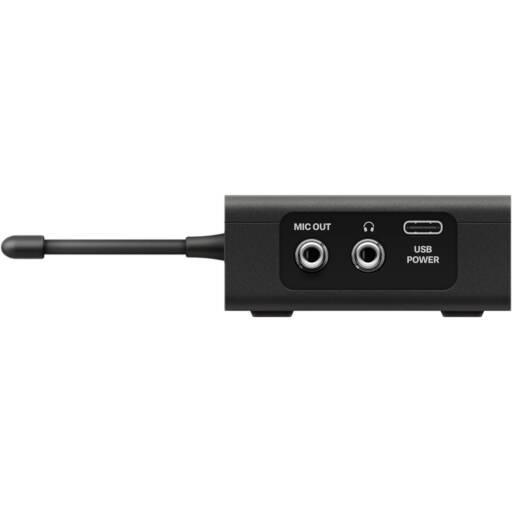

Audio I/O: 1x 1/8" / 3.5 mm TRS Female Unbalanced Output (Locking), 1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Locking)
Audio Output Level: 1/8" / 3.5 mm Output: 2 dBV (Max, Unbalanced)
Frequency Response: 20 Hz to 20 kHz ±3 dB
Network I/O: No
Word Clock I/O: No
USB/Lightning Connectivity: 1x USB-C Female (Bus Power, Charging)
RF Output Power: 10 mW (EIRP)
Power Requirements:
Battery, Bus Power (USB)
Battery Type: 2x AA (Included), 1x Sennheiser Battery Pack (Included)
Approx. Battery Life: 7 Hours
Display & Indicators: 1x Backlit OLED (AF Level, Frequency, Mute, RF Level, Transmitter Battery Status)
Operating Temperature: 14 to 131°F / -10 to 55°C
Operating Humidity: 5 to 95%
Dimensions: 3.4 x 2.6 x 1.1" / 86 x 67 x 28 mm
Weight: 0.3 lb / 140 g
Transmitter
Transmitter Type: Bodypack
RF Output Power: 10 mW (ERP), Up to 10 mW (EIRP)
Audio I/O: No
Muting: Mute Switch
Audio Input Level: 2 to 4.35 V RMS
Auto-Level Control: No
Frequency Response: 20Hz to 20Khz
Sync Method: Bluetooth
Antenna: 1x Flexible Whip, Fixed (Beltpack)
Power Requirements: Battery
Battery Type: 2x AA (Included), 1x Sennheiser Battery Pack (Included, Replaceable)
Approx. Battery Life: 8 Hours (Alkaline), 12 Hours (Sennheiser Battery Pack)
Display & Indicators: 1x LED (Mute), 1x LED (Sync)
Housing: Metal
Dimensions: 2.5 x 3.1 x 0.8" / 63 x 80 x 20 mm (without Antennas)
Weight: 4.2 oz / 120 g (without Batteries)
Microphone
Microphone Type: Lavalier
Color: Black
Sound Field: Mono
Capsule: Electret Condenser
Polar Pattern: Omnidirectional
Equivalent Noise Level: 32 dB
Maximum SPL: 130 dB SPL
Sensitivity: 17 mV/Pa at 1 kHz
Output Connector: 1x 1/8" / 3.5 mm TRS Male (Locking)
Cable Length: 5.2' / 1.6 m
Operating Voltage: 7.5 V
Packaging Info
Package Weight: 1.78 lb
Box Dimensions (LxWxH): 12.7 x 8.3 x 3.1"
