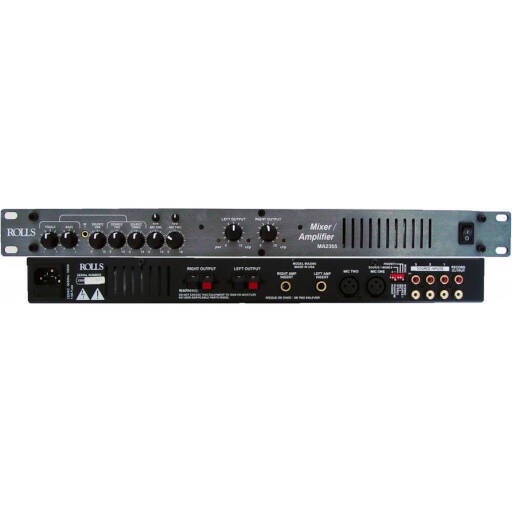

The MA2355 is a single rack space mixer amplifier designed for small installation applications. The unit provides a compact and efficient way to mix up to three sources such as AM/FM tuners, CD players, and video players with up to two microphones. Priority talkover is provided on Microphone One for paging, and on Source Three for a jukebox, telephone, etc. The power amplifier provides 35 Watts of power connected to 8 ohm speakers. IMPORTANT NOTICES: THE FRONT PANEL ACTS AS THE HEAT SINK FOR THIS UNIT AND MAY GET HOT UNDER A HEAVY LOAD.
Features
- Two Microphone inputs with phantom power.
- Tone controls for each Mic input.
- Three stereo Source inputs.
- Direct access to the power amp section.
- Bass and Treble controls on Sources Two and Three.
- Priority ducking on Mic Two and Source One.
- Dual pre-master level Record Output.
- Fault protected power amp.
- Spring-loaded output terminals.
- Clip indication.
- FR4 Double-sided epoxy circuit board.
- Socketed ICs.
- Made in the U.S.A.MIXER
Input Impedance:
- Mic: 600 Ohms XLR balanced
- Source: 22K Ohms RCA
- Insert: 22K Ohms 1/4" TS unbal.
Max Input Level:
- Mic: -14 dBV Mic level Max
- Source: 24 dBV
- Insert: 24 dBV
Connectors: 2: XLR, 6: Stereo RCA, 3: 1/4" TRS, 1: 1/4” TS
Phantom Power: +12 VDC
Max Gain:
- Mic: 60 dBV
- Source: 26 dBV
Tone Controls: +/-12 dB 100 Hz Bass, +/-12 dB 11kHz Treble
Nose Floor: - 80 dBV
S/N Ratio: 96 dBV
Priority Attenuation: 60 dBV
POWER AMP
Recommended Load: 8 Ohms
THD: .06% typical
Power: 120 VAC 50-60 Hz
Weight: 5.5 lbs (2.5 kg)
Size: 19" x 1.75" x 5" (48cm x 4.5cm x 12.7cm)
