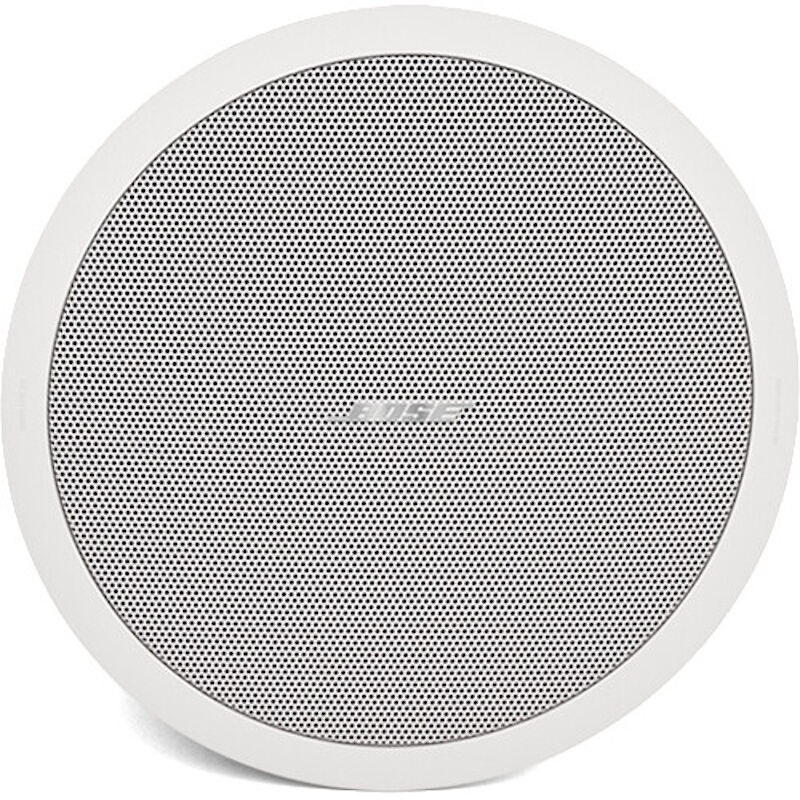

Bose Professional FreeSpace FS4CE In-Ceiling Indoor/Outdoor Loudspeaker - Pair (White)

SINGLE LOUDSPEAKER PERFORMANCE:
Frequency Response (-3 dB) (1) 80 – 16,000 Hz
Frequency Range (-10 dB) (1) 70 – 17,000 Hz
Nominal Coverage Angle (1 - 4 kHz) 145°
Nominal Coverage (1 – 10 kHz) 115°
AES transducer test (5) Bose extended-lifecycle test (4)
Power Handling, Long-term Continuous 50 W 40 W
Power Handling, Peak 200 W 160 W
Sensitivity SPL / 1W @ 1m (2) 88 dB 88 dB
Calculated Maximum SPL @ 1 m (3) 105 dB 104 dB
Calculated Maximum SPL @ 1 m, Peak 111 dB 110 dB
Loudspeaker EQ Not required, Bose EQ voicing and SmartBass available
Recommended High-Pass Protection 70 Hz with minimum 24-dB/octave filter
Transformer taps 70V: 2.5, 5, 10, 20, 40 W, bypass
100V: 5, 10, 20, 40 W, bypass

TRANSDUCERS:
Full-Range Driver 1 × 4.5-inch woofer (114 mm)
Nominal Impedance 8 ohms (transformer bypass)
PRO.BOSE.COM 1 OF 4
Key Features
Maintain consistent tonal quality with shared voicing across all FS models
Hear the best of both — music and voice — with transducers that offer clear voice reproduction and smooth response for
background music
Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix-andmatch installations. DesignMax subwoofers and larger models can expand your system design options even further
Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with
practical features, including removable logos
Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications
and mounting options
Install with ease — all models feature Euroblock inputs and front-baffle input location on in-ceiling models
Support public safety — EN54-24 for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings.
UL 1480 UUMW listed for use in fire alarm and signaling systems in life safety applications
Bring quality sound to more places with the FS4CE — rated for outdoor, wet installations
Product Overview
FreeSpace FS loudspeakers are the next step of our widely
trusted line of in-ceiling and surface-mount loudspeakers,
offering significant upgrades in durability, design, and ease
of installation — all with remarkably consistent tonality.
Engineered for high-quality performance in both background
music and voice announcement applications, FS loudspeakers
are ideal for almost any commercial space. The line includes
five loudspeakers, two distinct levels of sound, new mounting
options, and a modern aesthetic to match. For those seeking
consistent, quality installed sound, FreeSpace FS loudspeakers
are the perfect mix of performance and value.
The FS4CE is an in-ceiling model with a full-range 4.5-inch
transducer, low frequency range down to 70 Hz, and sensitivity
of 88 dB SPL / 1W @ 1m.
Footnotes
(1) Frequency response and range measured on-axis in half-space environment with recommended EQ
(2) Sensitivity measured on-axis in half-space environment averaged 100 Hz – 10 kHz using recommended high-pass protection
(3) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
(4) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
(5) AES standard 2-hour duration with IEC system noise
(6) Tested to iP55 per EN60529 when used in General Purpose Audio applications. Tested to iP33C per EN5 54-24 for fire and
evacuation notification applications
(7) Measured in whole-space environment

PHYSICAL:
Enclosure Material Engineered-plastics front baffle, highly UV fade-resistant, with integrated steel-formed backcan
Grille Perforated steel, powder-coated finish
Logo Rotatable, removable
Color Black (similar to Ral 9005), White (similar to Ral 9003)
Environmental/Ingress Protection (6)
Rated for direct-exposure outdoor installations (IP55 per EN60529; IP33C per EN54-24). Suitable for
use in outdoors in wet locations and suitable for use in plenum locations. Includes weatherresistant input cover. Optional accessory aluminum grille for harsh environments to prevent red
corrosion is available.
Safety Agency
Certification: EN54-24:2008 for Voice Alarm Systems, UL 1480 UUMW, CAN/ULC-S541 UUMW7 for
Speakers for Fire Alarm and Signaling Systems, in compliance with UL 2043 for plenum-space installation. Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32
For EN54-24 specifications, refer to FS4CE EN 54-24 Certified Ratings document on pro.bose.com.
EN54-24 equalization required for EN54-24 use.
Operating Temperature Range -25 °C to 70 °C (-13 °F to 158 °F)
Connectors Euroblock 6-pin connector with loop-through, mounted on top. Accepts 18 AWG (0.8 mm2) to 14
AWG (2.5 mm2) size wire. Includes input cover.
Wire/Conduit Entry Top and side wire entry-point 12.7 mm (1/2 in) knockouts allow for 9.5 mm (3/8 in) conduit
and fittings
Suspension/Mounting Three (3) standard mounting arms plus one (1) safety cable tab
Maximum Ceiling Thickness 38 mm (1.5 in)
Product Dimensions (Baffle Diameter × Depth) 272 × 172 mm (10.7 × 6.8 in)
Backcan Dimensions (Diameter × Depth) 220 × 163 mm (8.7 × 6.4 in)
Ceiling Cutout 249 mm (9.8 in)
Net Weight, Loudspeaker with Grille (Single) 3.47 kg (7.65 lb)
Shipping Weight (Pair) 9.05 kg (19.95 lb)
Included Accessories Each FS4CE includes one (1) weather-resistant input cover, one (1) cutout template per box
Optional Accessories Adjustable Tile Bridge (6-pack), DesignMax DM2CRI Rough-in Pan (6-pack), Retrofit Kit
(2-pack), Ceramic Terminal and Thermal Fuse Kit (10-pack), Aluminum Grille kit (2-pack)
